Volvo S90 Twin Engine 2019 Fuse Box

Volvo S90 Twin Engine 2019 Fuse Box Info

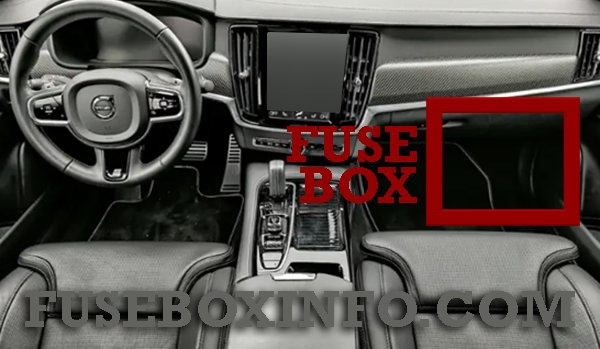

Passenger compartment fuse box location:

The fuse box in the passenger compartment is located behind the floor mat/side panel, under the glove box.

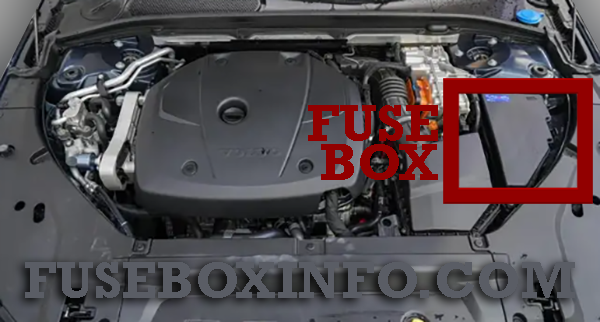

Engine compartment fuse box location:

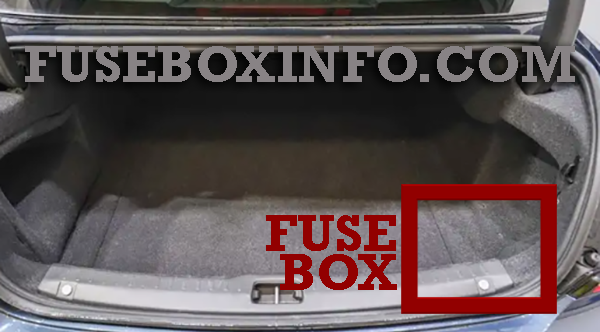

Luggage compartment fuse box location:

The fuse box is located on the right-hand side.





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
1 - -
2 - -
3 - -
4 5A Movement sensor*
5 - -
6 5A Instrument panel
7 5A Center console buttons
8 5A Sun sensor
9 - -
10 - -
11 5A Steering wheel module
12 5A Module for start knob and for parking brake control
13 15A Heated steering wheel* module
14 - -
15 - -
16 - -
17 - -
18 10A Climate system control module
19 - -
20 10A Data link connector OBD-II
21 5A Center display
22 40A Climate system blower module (front)
23 5A USB hub
24 7.5A Instrument lighting; Interior lighting; Rearview mirror auto-dim function*; Rain and light sensors*; Rear tunnel console keypad, rear seat*; Power front seats*; Rear door control panels; Climate system blower module left/right
25 5A Control module for driver support functions
26 20A Panoramic roof with sun curtain*
27 5A Head-up display*
28 5A Passenger compartment lighting
29 - -
30 5A Ceiling console display (seat belt reminder/front passenger side airbag indicator)
31 - -
32 - -
33 - -
34 10A Fuses in the trunk/cargo compartment
35 5A Control module for Internet-connected vehicle; Control module for Volvo On Call
36 - -
37 40A Infotainment control module (amplifier)
38 - -
39 5A Multi-band antenna module
40 5A Front seat massage function*
41 - -
42 15A Rear door sun curtain modules
43 15A Fuel pump control module
44 5A Relay windings for distribution box in engine compartment; Relay windings for transmission oil pump
45 - -
46 15A Driver's seat heating
47 15A Front passenger's seat heating
48 10A Coolant pump
49 - -
50 20A Power driver's seat*
51 20A Active chassis control module*
52 - -
53 10A Sensus control module
54 - -
55 10A Climate system blower module (rear)
56 20A Power front passenger seat*
57 5A Display for rear seat convenience functions*; On-board diagnostics (OBD II) in tunnel console between rear seats*; Extra movement sensor*
58 5A TV* (certain markets)
59 15A Primary fuse for fuses 52, 53, 57 and 58

* Option/accessory



Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1 - -
2 - -
3 - -
4 5A Control module for actuator for engaging/changing gears, automatic transmission
5 5A High-voltage coolant heater control module
6 5A Control module for A/C; heat exchanger cut-off valve; cut-off valve for coolant through the climate system
7 5A Hybrid battery control module; high-voltage converter for combined high-voltage generator/starter motor with 500 V–12 V voltage converter
8 - -
9 10A Converter for controlling feed to rear axle electric motor
10 10A Hybrid battery control module; high-voltage converter for combined high-voltage generator/starter motor with 500 V–12 V voltage converter
11 5A Charge module
12 10A Cut-off valve for hybrid battery coolant; coolant pump 1 for hybrid battery
13 10A Coolant pump for electric drive system
14 25A Hybrid component cooling fan
15 - -
16 - -
17 - -
18 - -
19 - -
20 - -
21 - -
22 - -
23 5A Front USB port in tunnel console, front*
24 15A 12 V outlet in tunnel console, front
25 15A 12 V outlet in tunnel console between second-row seats, 12 V outlet in tunnel console, between rear seats*, USB ports in tunnel console between rear seats*
26 15A 12 V outlet in trunk/cargo compartment*, USB ports for iPad holders*
27 - -
28 - -
29 - -
30 - -
31 - -
32 - -
33 25A Headlight washers*
34 25A Windshield washer
35 - -
36 20A Horn
37 5A Alarm siren*
38 40A Brake system control module (valves, parking brake)
39 30A Wipers
40 - -
41 - -
42 - -
43 40A Brake system control module (ABS pump)
44 - -
45 - -
46 5A Fed when ignition is on: Engine control module; transmission components, electrical power steering, central electrical module
47 5A Exterior vehicle sound (certain markets)
48

7.5A

15A

Right-side headlight

Right-side headlight, some models with LED*

49 - -
50 - -
51 - -
52 5A Airbags
53

7.5A

15A

Left-side headlight

Left-side headlight, some models with LED*

54 5A Accelerator pedal sensor
55 15A Transmission control module; gear selector control module
56 5A Engine control module
57 - -
58 - -
59 - -
60 - -
61 20A Engine control module; actuator; throttle unit; turbo-charger valve
62 10A Solenoids; valve; engine cooling system thermostat
63 7.5A Vacuum regulators; valve
64 5A Spoiler shutter control module; radiator shutter control module
65 - -
66 15A Heated oxygen sensor, front; heated oxygen sensor, rear
67 15A Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor (center)
68 - -
69 20A Engine control module
70 15A Ignition coils; spark plugs
71 - -
72 - -
73 30A Transmission oil pump control module
74 40A Vacuum pump control module
75 25A Transmission actuator
76 - -
77 - -
78 - -

* Option/accessory



Luggage compartment fuse box:

Fuse/Relay N° Rating Functions
1 - -
2 40A Central electrical module
3 40A Pneumatic suspension* compressor
4 15A Lock motor for rear seat backrest, right side
5 30A Electrical outlets in the tunnel console*
6 15A Lock motor for rear seat backrest, left side
7 20A Power front passenger seat*, Door module right side, rear
8 - -
9 25A Power trunk release*
10 20A Power front passenger seat*, Door module right side, front
11 40A Towbar control module*
12 40A Seat belt tensioner module (right side)
13 5A Internal relay windings
14 20A Door module left side, rear
15 5A Foot movement detection module for opening the power trunk release*
16 5A USB hub/accessory port
17 - -
18

25A

40A

Towbar control module*

Accessory module

19 20A Door module left side, front
20 40A Seat belt tensioner module (left side)
21 5A Park Assist Camera*
22 10A Rear lighting extra fuse
23 - -
24 - -
25 10A Feed when ignition is on
26 5A Control module for airbags and seat belt tensioners
27 10A Cooler*; Heated/cooled cup holder (rear)*
28 15A Heated rear seat (left side)*
29 - -
30 5A Blind Spot Information (BLIS)*; Exterior reverse signal control module
31 - -
32 5A Modules for seat belt tensioners
33 5A Emissions system actuator (gasoline, certain engine variants)
34 - -
35 - -
36 15A Heated rear seat (right side)*
37 - -

* Option/accessory
