Škoda Octavia 2018 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the coin tray on the driver’s side (LHD), The fuse box is located behind the glove box (RHD).

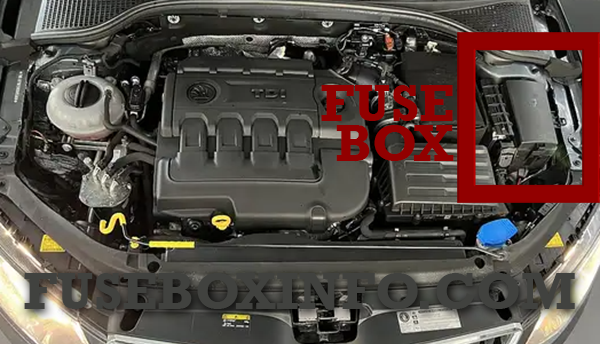

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay N° | Functions |
| 1 | Not assigned |
| 2 | Not assigned |
| 3 | Not assigned |
| 4 | Heated steering wheel |
| 5 | Databus |
| 6 | Sensor Alarm |
| 7 | Air conditioning, heating, recipient of the wireless remote control for auxiliary heating, selector lever of the automatic transmission |
| 8 | Light switch, rain sensor, diagnosis connection, ambient lighting, control unit for front headlights |
| 9 | All-wheel drive |
| 10 | Infotainment screen |
| 11 | Light - left |
| 12 | Infotainment |
| 13 | Belt tensioner - driver's side |
| 14 | Air blower for air conditioning,heating |
| 15 | Electric steering lock |
| 16 | Phonebox, Wireless phone charging |
| 17 | Instrument cluster, emergency call |
| 18 | Reversing camera |
| 19 | KESSY system |
| 20 | Operating lever underneath the steering wheel |
| 21 | Adaptive Shock absorber |
| 22 | Towing hitch |
| 23 | Panoramic tilt / slide sunroof |
| 24 | Light - right |
| 25 | Central locking- front left door, window - left, exterior mirrors - Heating, fold-in function, setting the mirror surface |
| 26 | Heated front seats |
| 27 | Interior lighting |
| 28 | Towing hitch |
| 29 | SCR (AdBlue®) |
| 30 | Heated rear seats |
| 31 | Not assigned |
| 32 | Parking aid (Park Assist) |
| 33 | Airbag switch for hazard warning lights |
| 34 | TCS, ESC, tyre pressure monitoring, air conditioning, reversing light switch, mirror with automatic blackout, START-STOP, heated rear seats, sport sound generator |
| 35 | Headlight range adjustment, diagnosis socket, sensor (camera) behind the windscreen, radar sensor |
| 36 | Headlight right |
| 37 | Headlight left |
| 38 | Towing hitch |
| 39 | Central - front right door, window lifter - right, right Mirrors - Heating, fold-in function, setting the mirror surface |
| 40 | 12-Volt power socket |
| 41 | Belt tensioner - front passenger side |
| 42 | Central - rear doors, headlamp washers, washer |
| 43 | Music amplifier |
| 44 | Towing hitch |
| 45 | Electrically adjustable seats |
| 46 | 230-Volt power socket |
| 47 | Rear window wiper |
| 48 | Assist system for blind spot monitoring |
| 49 | Engine starting, clutch pedal switch |
| 50 | Opening the boot lid |
| 51 | SCR (AdBlue®) |
| 52 | USB socket |
| 53 | Heated rear window |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | ESC, ABS |
| 2 | ESC, ABS |
| 3 | Engine control system |
| 4 | Radiator fan, oil temperature sensor, air mass meter, fuel pressure control valve, electric booster heater, oil pressure valve, exhaust gas recirculation valve, glow plug, SCR (AdBlue®) |
| 5 | Ignition coil of CNG relay, fuel injectors, fuel metering valve |
| 6 | Brake sensor |
| 7 | Coolant pump, radiator shutters, oil pressure valve, gear oil valve, crankcase ventilation heating |
| 8 | Lambda probe |
| 9 | Ignition, exhaust flap |
| 10 | Fuel pump, ignition |
| 11 | Electrical auxiliary heating system |
| 12 | Electrical auxiliary heating system |
| 13 | Windscreen heater - left |
| 14 | Windscreen heater - right |
| 15 | Horn |
| 16 | Ignition, fuel pump, CNG relay |
| 17 | ABS, ESC, motor control system, Relay for heated windscreen |
| 18 | Databus, battery data module |
| 19 | Windscreen wipers |
| 20 | Anti-theft alarm |
| 21 | Automatic gearbox |
| 22 | Engine control system |
| 23 | Starter |
| 24 | Electrical auxiliary heating system |
| 31 | Vacuum pump for the brake system |
| 32 | Not assigned |
| 33 | Oil pump for automatic gearbox |
| 34 | Front differential |
| 35 | Not assigned |
| 36 | Not assigned |
| 37 | Aux. heating |
| 38 | Not assigned |
