Škoda Octavia 2011 Fuse Box Info
Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.

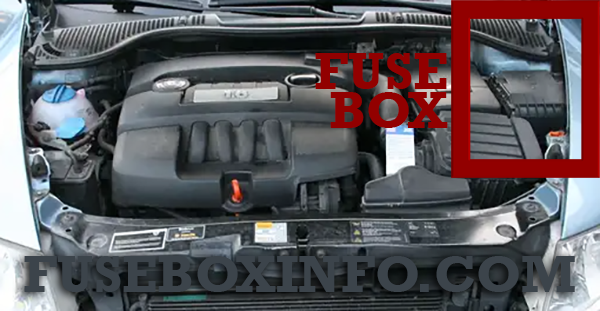

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
Fuse/Relay N° | Functions |
1 | Diagnostic socket, Engine control unit, Electrical fuel pump |
2 | Control unit for ABS, ESP |
3 | Airbag |
4 | Heating, Air conditioning system, Reversing lights |
5 | Control unit for headlamp beam adjustment |
6 | Instrument cluster, control unit for automatic gearbox, control unit for electromechanical power steering, parking aid, Haldex coupling |
7 | Not assigned |
8 | Not assigned |
9 | Not assigned |
10 | Not assigned |
11 | Not assigned |
12 | Central locking control unit |
13 | Diagnostic socket, Light switch |
14 | Control unit for automatic gearbox, Selector lever lock |
15 | Central control unit - interior lights |
16 | Climatronic |
17 | Not assigned |
18 | Rear window wiper |
19 | Control unit for trailer detection |
20 | Not assigned |
21 | Cornering lights for the left and right side |
22 | Air blower for Climatronic |
23 | Front power window |
24 | Cigarette lighter |
25 |
Rear window heater Rear window heater, Auxiliary heating (auxiliary heating and ventilation) |
26 | Power socket in the luggage compartment |
27 | Fuel pump relay, Injection valves (diesel engine) |
28 | Radio |
29 | Engine control unit, Crankcase ventilation heater |
30 | Control unit for automatic gearbox |
31 | Vacuum pump |
32 | Rear power window |
33 | Electric sliding/tilting roof |
34 | Control unit for convenience functions |
35 | Anti-theft alarm system |
36 | Headlight cleaning system |
37 | Front seat heating |
38 | Heated rear seats |
39 | Instrument cluster, windshield wiper lever and turn signal light lever |
40 | Air blower for heating and air conditioning |
41 | Not assigned |
42 | Not assigned |
43 | Towing device |
44 | Towing device |
45 | Towing device |
46 | Seat heaters |
47 | Relay for auxiliary heating |
48 | Phone |
49 | Light switch |
Engine compartment fuse box:
Fuse/Relay N° | Functions |
1 | Not assigned |
2 | Control unit for automatic gearbox DQ 200 |
3 | Measuring circuit |
4 | Valves for ABS |
5 | Control unit for automatic gearbox |
6 | Instrument cluster, windshield wiper lever and turn signal light lever |
7 | Power suppy terminal 15, Starter |
8 | Radio |
9 | Not assigned |
10 | Engine control unit, Main relay |
11 | Control unit for auxiliary heating |
12 | Control unit for CAN databus |
13 | Engine control unit |
14 | Ignition |
15 |
Lambda probe Glow plug system relay |
16 | Central control unit, right main headlight, right rear light unit |
17 | Horn |
18 | Amplifier for digital sound processor |
19 | Front window wiper |
20 |
Water pump Valve for fuel dosing |
21 |
Lambda probe Vacuum pump |
22 | Clutch pedal switch, brake pedal switch |
23 |
Secondary air pump Air mass meter Fuel high pressure pump |
24 | Activated charcoal filter, exhaust gas recirculation valve |
25 | Pump for ABS |
26 | Central control unit, left main headlight, left rear light unit |
27 |
Secondary air pump Glow plug system |
28 | Not assigned |
29 | Power supply terminal 30 |
30 | Terminal X * |
* In order not to drain the battery unnecessarily when starting the engine, the electrical components of this terminal are automatically switched off.
