Seat Ibiza 2024 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:

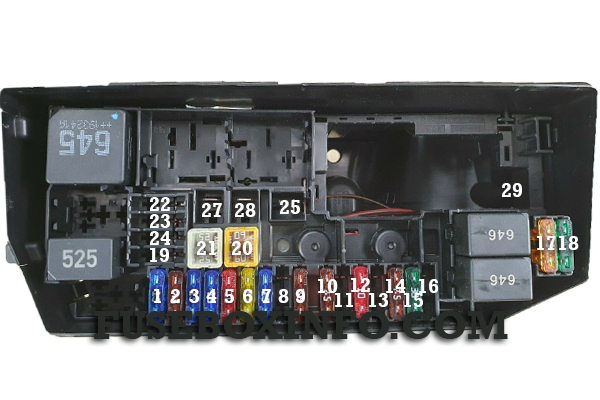

Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Tow Hook |
| 3 | 30A | Sound amplifier |
| 4 | 20A | Cigarette lighter/12V power point |
| 5 | 30A | Panoramic Roof |
| 6 | 40A | Central locking |
| 8 | 30A | Heating fan/Climatronic |
| 10 | 20A | Tow Hook |
| 11 | 7.5A | CNG Gauge |
| 13 | 7.5A | Lights switch, steering column LSS and SMLS, diagnostic port, rain/light sensor |
| 14 | 10A | Steering column LSS: wiper controls |
| 15 | 7.5A | Kombi, Emergency call (+ NZ4) |
| 16 | 40A | Right Lights Power Supply |
| 17 | 30A | Right Door Window Control |
| 18 | 30A | Windscreen wipers |
| 19 | 25A | Radio, Multimedia System |
| 20 | 30A | Heated Rear Window |
| 21 | 30A | SCR Control Unit |
| 23 | 7.5A | Rear View Camera |
| 24 | 5A | Connectivity Box, external audio source wiring (Double USB), MIB display |
| 25 | 7.5A | Steering Column Electronics (MFL) |
| 26 | 7.5A | Gateway |
| 27 | 7.5A | Active Suspension Control Unit |
| 28 | 7.5A | DWA Sensor |
| 29 | 7.5A | DWA Horn |
| 31 |
7.5A 15A |
9AA/9AB climate control unit 9AK Climatronic control unit |
| 32 | 7.5A | Steering Column LSS, without Kessy |
| 33 | 30A | Left Door Window Control |
| 35 | 40A | Left Lights Power Supply |
| 36 | 20A | Signal Horn |
| 37 | 30A | Heated seats control unit |
| 38 | 30A | BCM Power C63 |
| 39 | 10A | BSD, PDC, MRR, PLA |
| 40 | 7.5A | Light switch, diagnosis input, headlamp range regulator, LSS steering column: lamps, halogen lamps, switch, reverse gear, electrochromic mirror, RKA without radio |
| 41 | 7.5A | Regulation of unfolded exterior mirrors |
| 42 | 7.5A | Clutch pedal, ignition relays, AA pressure sensor |
| 43 | 15A | DWP relay coil, rear window wiper motor |
| 44 | 7.5A | Airbag |
| 45 | 7.5A | Left full LED headlight |
| 46 | 7.5A | Right full LED headlight |
| 48 | 7.5A | Steering Column Lock, Kessy Control Unit |
| 49 | 7.5A | SCR Relay |
| 53 | 7.5A | Automatic gearbox lever, ZSS |
| 58 | 7.5A | Windscreen washer pump |
| 59 | 10A | Heated rear view mirrors |
| 60 | 30A | Tow Hook |
| 61 | 30A | Tow Hook |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 |
10A 15A |
MPI Engine Injection Module TSI Engine Injection Module |
| 2 | 7.5A | Fuel metering valve (TJ4/T6P/N09), Low temperature coolant pump (TJ4/T6P/N09/TC5); Oil pressure regulating valve (TJ1), AGR coolant valve (TJ1), High and low pressure water pumps (TJ1), SCR relay coil, cylinder head water valve |
| 3 | 15A | Lambda probes |
| 4 | 15A | Engine petrol pump relay (MPI), Gauge control unit (TSI) |
| 5 | 10A | Electric fan (EC), LDR valve, cannister and variable distribution valve, oil pressure regulating valve, cylinder disconnection valves, WIV sensor |
| 6 | 20A | Spark plugs (MPI and TSI) |
| 7 | 15A | Vacuum pump (TSI) |
| 8 | 10A | Injectors and EKP relay coil (MPI) |
| 9 | 7.5A | Servo sensor |
| 10 | 7.5A | Vref Battery: Gateway, BDM and BCM |
| 12 | 10A | Detachable compressor |
| 14 | 7.5A | ESC, Relay 87 coil and engine controller of engines (+ TJ1 / TJ4 / TH4 / T5I / T6P / N09 / TC5 / T5Y) |
| 15 | 30A | Automatic Gearbox DQ200 and AQ160 |
| 17 | 7.5A | 50 Diag |
| 18 | 30A | BDM starter motor |
| 20 |
60A 40A |
ESC (Pump) ABS (Pump) |
| 21 | 25A | ESC/ABS (Valves) |
| 24 | 30A | TH4 Electric fan without A/C for moderate climate countries |
| 25 |
20A 40A |
TH4 fan with A/C or T5I for moderate climate countries PTC1 |
| 26 | 50A | TJ1/TJ4/N09/T6P or TH4/T5I Electric fan for warm climate countrie |
| 27 |
30A 40A |
TH4 fan with A/C or T5I for moderate climate countries PTC2 |
| 28 | 40A | PTC3 |
