Saab 9-5 2010 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located behind the storage compartment in the instrument panel.

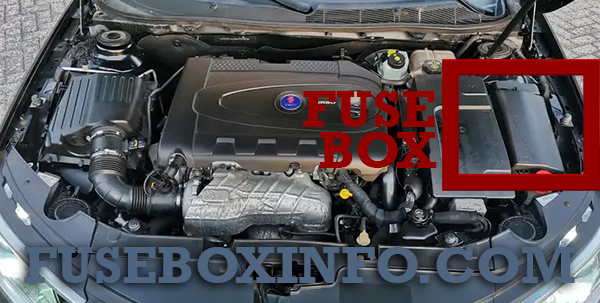

Engine compartment fuse box location:

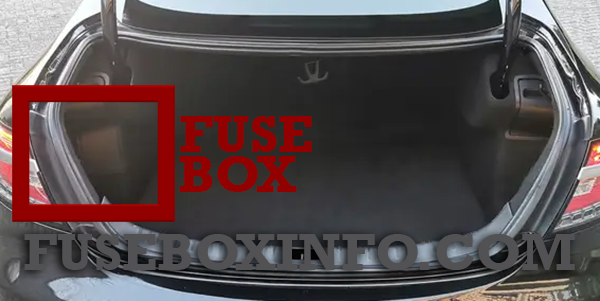

Luggage compartment fuse box location:
The fuse box is located on the left side of the trunk behind the storage box.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Infotainment system, Info display |
| 2 | Body control unit |
| 3 | Body control unit |
| 4 | Infotainment system, Info display |
| 5 | Infotainment system, Info display |
| 6 | - |
| 7 | Power outlet |
| 8 | Body control unit |
| 9 | Body control unit |
| 10 | Body control unit |
| 11 | Interior fan |
| 12 | - |
| 13 | - |
| 14 | Diagnostic connector |
| 15 | Airbag |
| 16 | Central locking system |
| 17 | Air conditioning system |
| 18 | Transportation fuse |
| 19 | Memory |
| 20 | - |
| 21 | Instrument |
| 22 | Ignition |
| 23 | Body control unit |
| 24 | Body control unit |
| 25 | - |
| 26 | Power outlet trunk |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Transmission control module |
| 2 | Engine control module |
| 3 | - |
| 4 | - |
| 5 | Ignition, Transmission control module, Engine control module |
| 6 | Windshield wiper |
| 7 | - |
| 8 | Fuel injection, ignition system |
| 9 | Fuel injection, ignition system |
| 10 | Engine control module |
| 11 | Lambda probe |
| 12 | Starter |
| 13 | Sensor throttle heating |
| 14 | Lighting |
| 15 | - |
| 16 | Vacuum pump, Compass module |
| 17 | Ignition, Airbag |
| 18 | Adaptive forward lighting |
| 19 | Adaptive forward lighting |
| 20 | Ignition |
| 21 | Rear power windows |
| 22 | ABS |
| 23 | Variable effort steering |
| 24 | Front power windows |
| 25 | Power outlets |
| 26 | ABS |
| 27 | Electrical parking brake |
| 28 | Heated rear window |
| 29 | Left power seat |
| 30 | Right power seat |
| 31 | Air conditioning system |
| 32 | Body control module |
| 33 | Heated front seats |
| 34 | - |
| 35 | Infotainment system |
| 36 | - |
| 37 | Right high beam |
| 38 | Left high beam |
| 39 | - |
| 40 | After boil pump |
| 41 | Vacuum pump |
| 42 | Radiator fan |
| 43 | - |
| 44 | Headlight washer system |
| 45 | Radiator fan |
| 46 | Terminal 87, main relay |
| 47 | Lambda probe |
| 48 | Fog lights |
| 49 | Right low beam |
| 50 | Left low beam |
| 51 | Horn |
| 52 | Ignition |
| 53 | Ignition, ventilated front seats |
| 54 | Ignition |
| 55 | Power windows, mirror folding |
| 56 | Windshield washer |
| 57 | Ignition |
| 58 | - |
| 59 | - |
| 60 | Mirror heating |
| 61 | Mirror heating |
| 62 | Canister Vent Solenoid |
| 63 | Rear window sensor |
| 64 | Adaptive forward lighting |
| 65 | Horn |
| 66 | - |
| 67 | Fuel system control module |
| 68 | - |
| 69 | Battery sensor |
| 70 | Rain sensor |
| 71 | Body electronic supply |
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Central locking system |
| 2 | Air conditioning system |
| 3 | - |
| 4 | - |
| 5 | - |
| 6 | - |
| 7 | - |
| 8 | - |
| 9 | - |
| 10 | Coolant heater |
| 11 | Power seats |
| 12 | Memory seat |
| 13 | - |
| 14 | - |
| 15 | - |
| 16 | - |
| 17 | Seat heating |
| 18 | - |
| 19 | - |
| 20 | Cooling fan driver seat |
| 21 | Ignition |
| 22 | - |
| 23 | Anti-theft alarm system |
| 24 | Parking light left |
| 25 | Parking light right |
| 26 | Lighting |
| 27 | Lighting |
| 28 | - |
| 29 | Transportation fuse |
| 30 | Transportation fuse |
| 31 | Suspension system, High beam assist, Cruise control, Lane departure warning |
| 32 | Side obstacle detector |
| 33 | Cross-wheel drive |
| 34 | - |
| 35 | Central locking system |
| 36 | Power seats |
| 37 | - |
