Saab 9-5 2003 Fuse Box Info

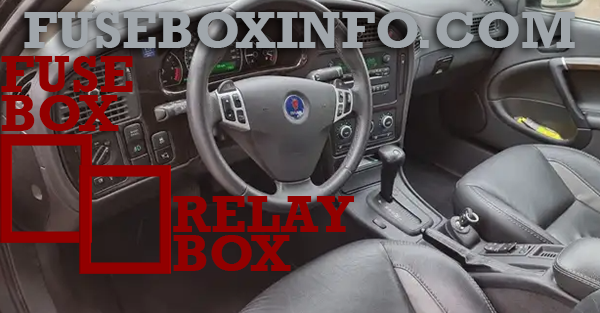

Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle. The instrument panel relay box is located on the driver's side under the instrument panel.

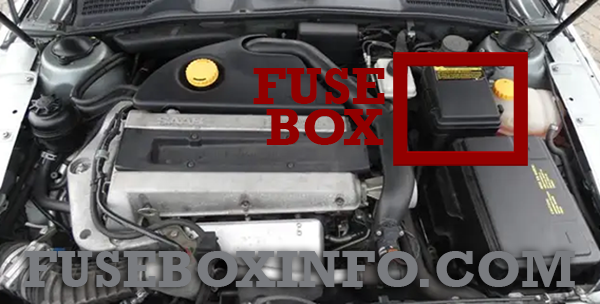

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| A | 25A | Trailer lights |
| B | 10A | Automatic transmission |
| C | 7.5A | Electric door mirrors; DICE: manual beam length adjustment |
| 1 | 15A | Brake lights |
| 2 | 15A | Reversing lights |
| 3 | 10A | Parking lights, left |
| 4 | 30A | Parking lights, right |
| 5 | 7.5A | DICE / TWICE |
| 6 | 30A | Electric windows, right ; trailer charging |
| 6B | 5A | Brake lights, trailer |
| 7 | 10A | Engine injectors |
| 8 | 15A | Trunk lighting; trunk lock; door lighting, circulation pump; parking assistant; SID |
| 9 | 15A | Audio System; CD changer |
| 10 | 15A | Heating, rear seat; sunroof |
| 11 | 30A | Electrically adjusted passenger seat |
| 12 | 7.5A | Automatic transmission |
| 13 | 20A | Audio System, amplifier |
| 14 | 30A | Ignition system, engine |
| 15 | 20A | Fuel pump |
| 16 | 20A | DICE (direction indicators) |
| 16B | - | - |
| 17 | 20A | Engine-management system; main instrument; DICE/TWICE |
| 18 | 40A | Door-mirror heating; rear-window heating |
| 19 | 10A | OnStar;Telematics |
| 20 | 15A | ACC; interior lighting; rear fog light; high beam flasher |
| 21 | 10A | Audio System; rear-view mirror; load angle sensor (cars with xenon); navigation (accessory); Cruise Control |
| 22 | 40A | Interior fan |
| 23 | 15A | Central locking; navigation (accessory); door mirror memory |
| 24 | 40A | Air pump (3.0t V6 only) |
| 25 | 30A | Electrically adjustable driver’s seat; fuel-filler flap |
| 26 | 7.5A | Driver seat memory; mirrors memory; sunroof; parking assistant; seatbelt reminder |
| 27 | 10A | Engine-management system; SID; main instrument |
| 28 | 7.5A | Airbag |
| 29 | 7.5A | ABS/TCS/ESP |
| 30 | 7.5A | Starter motor |
| 31 | 7.5A | Cruise control; water valve; fog lights, front; rain sensor |
| 32 | 15A | Ventilated front seats |
| 33 | 7.5A | Direction-indicator switch |
| 34 | 30A | Cigarette lighter (front/rear) |
| 35 | 15A | Daytime running light |
| 36 | 30A | Electric windows, left |
| 37 | 30A | Windshield wipers; rain sensor |
| 38 | 30A | Electric heating, front seats |
| 39 | 20A | Limp-home solenoid (automatic transmission); OnStar; telematics |
Passenger compartment relay box:
| Fuse/Relay N° | Rating | Functions |
| A | - | - |
| B | - | Electric heating of rear seat |
| C1 | - | - |
| C2 | - | - |
| D | - | - |
| E | - | Main relay (engine management system) |
| F | - | Fuel filler flap |
| G | - | Fuel pump |
| H | - | Ignition switch |
| I | - | Rear-window / door mirrors heating |
| J | - | - |
| K | - | Starter relay |
| L1 | - | Limp-home function |
| L2 | - | Bootlid |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 40A | Radiator fan, high speed |
| 2 | 60A | ABS/TCS/ESP |
| 3 | - | - |
| 4 | 7.5A | Load angle sensor (cars with xenon headlights) |
| 5 | 15A | Heater |
| 6 | 10A | A/C; car alarm siren |
| 7 | 15A | Bulb test |
| 8 | - | - |
| 9 | - | - |
| 10 | 15A | High beam headlight, left |
| 11 | 15A | Low beam headlight left |
| 12 | 15A | High beam headlight, right |
| 13 | 15A | Low beam headlight, right |
| 14 | 30A | Radiator fan, high speed |
| 15 | 15A | Fog lights (front spoiler) |
| 16 | 30A | Wiper, rear; headlight washers |
| 17 | 15A | Horn |
| 18 | - | - |
| Relays | ||
| 1 | - | Bulb test; head light; high beam flasher |
| 2 | - | Headlight washer |
| 3 | - | Front fog lights |
| 4 | - | Wiper, rear (9-5 Wagon) |
| 5 | - | - |
| 6 | - | - |
| 7 | - | Rain sensor |
| 8 | - | Radiator fan, low speed |
| 9 | - | Radiator fan, high speed |
| 10 | - | A/C-compressor |
| 11 | - | Radiator fan, high speed, right fan |
| 12 | - | Horn |
| 13 | - | Extra lights (accessory) |
| 14 | - | High beam headlight |
| 15 | - | Low beam headlight |
| 16 | - | - |
| 17 | - | Windshield wiper |
