Peugeot 208 2021 Fuse Box

Peugeot 208 2021 Fuse Box Info

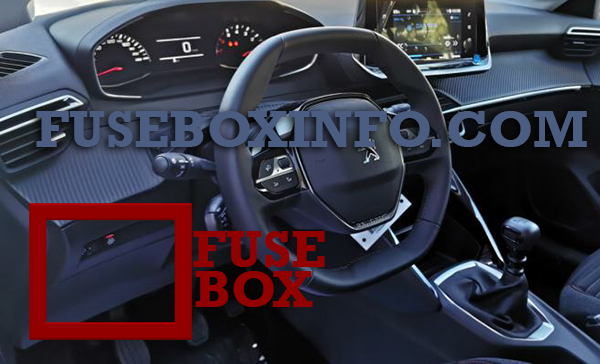

Passenger compartment fuse box location:

The fusebox is located below the dashboard.

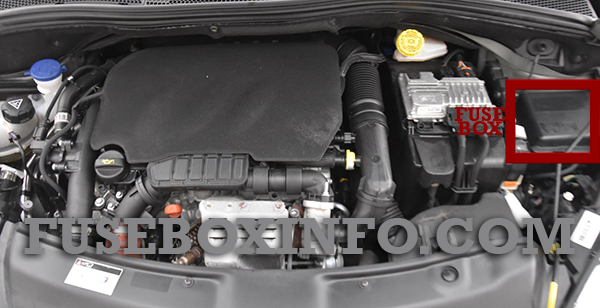

Engine compartment fuse box location:

The fusebox is placed in the engine compartment near the battery.





Fuse Box Diagram | Layout

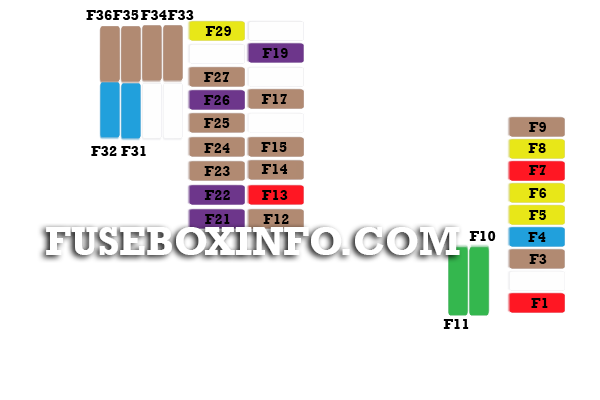

Passenger compartment fuse box (Lower fusebox):

Fuse N° Rating Functions
F1 10 A Electrochrome interior rear view mirror
F3 5 A Wireless smartphone charger
F4 15 A Horn
F5 20 A Screenwash pump
F6 20 A Screenwash pump
F7 5 A Rear USB sockets
F8 20 A Rear wiper
F10 30 A Locking / Unlocking
F11 30 A Locking / Unlocking
F14 5 A Emergency and assistance calls - Alarm
F24 5 A 7-inch touch screen
F27 5 A Alarm (retrofit)
F29 20 A 10-inch touch screen
F31 or F32 15 A Cigarette lighter / 12 V accessory socket



Passenger compartment fuse box (Upper fusebox):

Fuse N° Rating Functions
F1 40 A Heated rear screen
F2 10 A Heated door mirrors
F3 30 A Front one-touch electric windows
F4 20 A Door mirrors adjustment - Folding door mirrors
F5 30 A Rear one-touch electric windows
F10 30 A Front heated seats

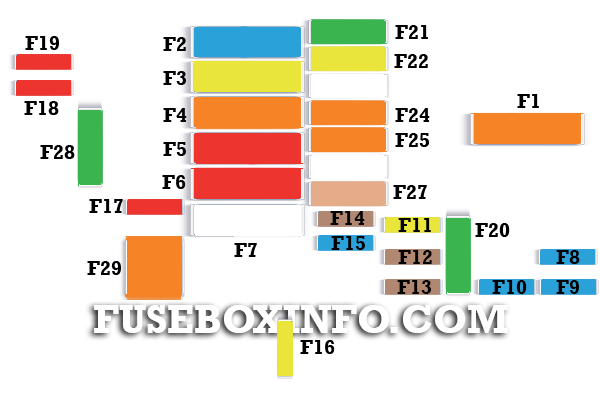

Engine compartment fuse box:

Fuse N° Rating Functions
F16 20 A Heated windscreen
F18 10 A Right-hand main beam halogen headlamp
F19 10 A Left-hand main beam halogen headlamp
F29 40 A Windscreen wipers
