Peugeot 2008 2020 Fuse Box Info

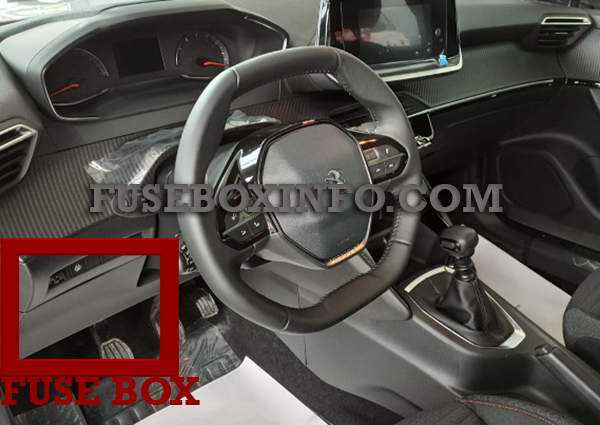

Passenger compartment fuse box location:
The fusebox is located in the lower dashboard.
Engine compartment fuse box location:
The fusebox is placed in the engine compartment near the battery.
Fuse Box Diagram | Layout

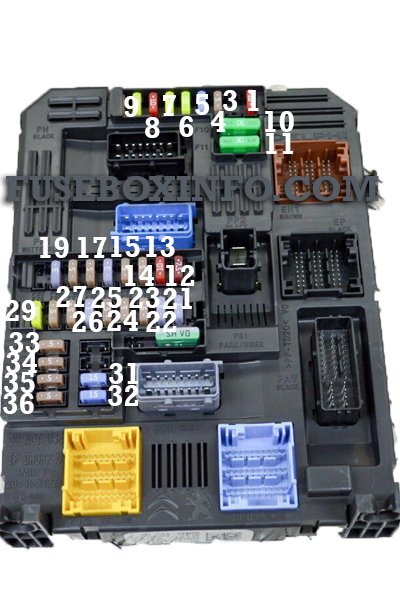

Passenger compartment fuse box (Lower fusebox):
| Fuse N° | Rating | Functions |
| F1 | 10 A | Electrochrome interior rear view mirror |
| F3 | 5 A | Wireless smartphone charger |
| F4 | 15 A | Horn |
| F5 | 20 A | Screenwash pump |
| F6 | 20 A | Screenwash pump |
| F7 | 5 A | Rear USB sockets |
| F8 | 20 A | Rear wiper |
| F10 | 30 A | Locking/Unlocking |
| F11 | 30 A | Locking/Unlocking |
| F14 | 5 A | Emergency and assistance calls - Alarm |
| F24 | 5 A | 7-inch touch screen |
| F27 | 5 A | Alarm (retrofit) |
| F29 | 20 A | 10-inch touch screen |
| F31 or 32 | 15 A | Cigarette lighter/12 V accessory socket |
Passenger compartment fuse box (Upper fusebox):
| Fuse N° | Rating | Functions |
| F01 | 40 A | Heated rear window |
| F02 | 10 A | Heated door mirrors |
| F03 | 30 A | Front one-touch windows |
| F04 | 20 A | Door mirrors adjustment - Folding door mirrors |
| F05 | 30 A | Rear one-touch electric windows |
| F06 | 15 A | Sunroof |
| F10 | 30 A | Heated front seats |
Engine compartment fusebox:
| Fuse N° | Rating | Functions |
| F16 | 20 A | Heated windscreen |
| F18 | 10 A | Right-hand main beam halogen headlamp |
| F19 | 10 A | Left-hand main beam halogen headlamp |
| F29 | 40 A | Windscreen wipers |
