Peugeot 208 2019 Fuse Box Diagram

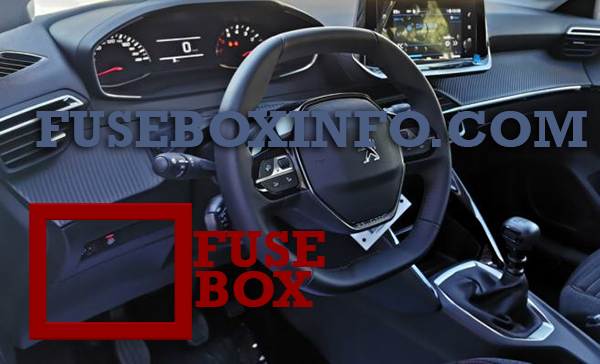

Passenger compartment fuse box location:
The fusebox is located below the dashboard.

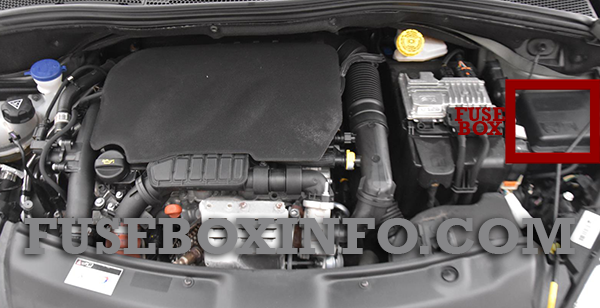

Engine compartment fuse box location:
The fusebox is placed in the engine compartment near the battery.
Fuse Box Diagram | Layout
Passenger compartment fuse box (Lower fusebox):
Fuse N° | Rating | Functions |
F1 | 10 A | Electrochrome interior rear view mirror |
F3 | 5 A | Wireless smartphone charger. |
F4 | 15 A | Horn. |
F5 | 20 A | Screenwash pump. |
F6 | 20 A | Screenwash pump. |
F7 | 5 A | Rear USB sockets. |
F8 | 20 A | Rear wiper. |
F10 | 30 A | Locking / Unlocking. |
F11 | 30 A | Locking / Unlocking. |
F14 | 5 A | Emergency and assistance calls - Alarm. |
F24 | 5 A | 7-inch touch screen. |
F27 | 5 A | Alarm (retrofit). |
F29 | 20 A | 10-inch touch screen. |
F31 or F32 | 15 A | Cigarette lighter / 12 V accessory socket. |
Passenger compartment fuse box (Upper fusebox):
Fuse N° | Rating | Functions |
F1 | 40 A | Heated rear screen. |
F2 | 10 A | Heated door mirrors. |
F3 | 30 A | Front one-touch electric windows. |
F4 | 20 A | Door mirrors adjustment - Folding door mirrors. |
F5 | 30 A | Rear one-touch electric windows. |
F10 | 30 A | Front heated seats. |
Engine compartment fuse box:
Fuse N° | Rating | Functions |
F16 | 20 A | Heated windscreen. |
F18 | 10 A | Right-hand main beam halogen headlamp. |
F19 | 10 A | Left-hand main beam halogen headlamp. |
F29 | 40 A | Windscreen wipers. |
