Peugeot 208 2016 Fuse Box Diagram
Fuse box location:
The Peugeot 208 has 2 dashboard fuse boxes, left and right. The left fusebox is placed in the lower dashboard. The right fusebox is placed behind the glove box.
Engine compartment fusebox:
The fusebox is placed in the engine compartment near the battery.
Fuse Box Diagram | Layout
Dashboard fuses:
Left fusebox:
| Fuse N° | Rating | Functions |
| F2 | 5 A | Door mirrors, headlamps, diagnostic socket. |
| F9 | 5 A | Alarm. |
| F10 | 5 A | Independent telematic unit, trailer interface. |
| F11 | 5 A | Electrochrome rear view mirror, additional heating. |
| F13 | 5 A | Hi-Fi amplifier, parking sensors |
| F16 | 15 A | Front 12 V socket. |
| F17 | 15 A | Audio system, audio system (accessory). |
| F18 | 20 A | Touch screen. |
| F23 | 5 A | Vanity mirror, map reading lamps. |
| F26 | 15 A | Horn. |
| F27 | 15 A | Screenwash pump. |
| F28 | 5 A | Anti-theft. |
| F29 | 15 A | Air conditioning compressor. |
| F30 | 15 A | Rear wiper. |
Right fusebox:
| Fuse N° | Rating | Functions |
| F01 | 40 A | Heated rear window. |
| F02 | 10 A | Heated door mirrors. |
| F03 | 30 A | Front one-touch windows. |
| F04 | - | Not used. |
| F05 | 30 A | Rear one-touch windows. |
| F06 | 10 A | Folding door mirrors. |
| F07 | 10 A | Folding door mirrors. |
| F08 | - | Not used. |
| F09 | 15 A | Front heated seats. |
| F10 | 20 A | Hi-Fi amplifier. |
| F11 | - | Not used. |
| F12 | - | Not used. |

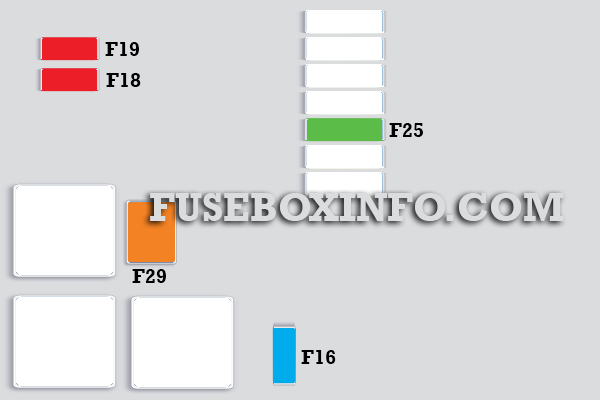

Engine compartment fusebox:
| Fuse N° | Rating | Functions |
| F16 | 15 A | Front foglamps. |
| F18 | 10 A | Right hand main beam headlamp. |
| F19 | 10 A | Left hand main beam headlamp. |
| F25 | 30 A | Headlamp wash relay (accessory). |
| F29 | 40 A | Front wiper motor. |
