Mitsubishi Outlander 2021 Fuse Box Info

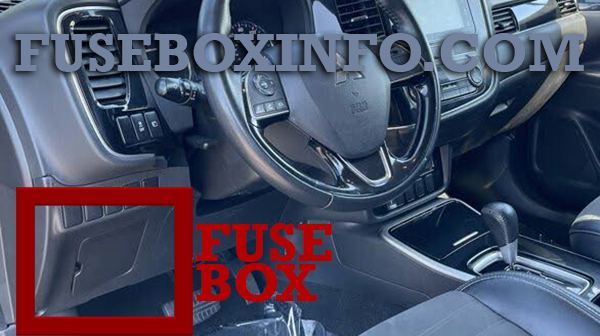

Passenger compartment fuse box location:
The fuse box (LHD vehicles) is located at the left side of the steering column at the bottom of the instrument panel, behind the cover. The fuse box (RHD vehicles) is located behind the glove box.

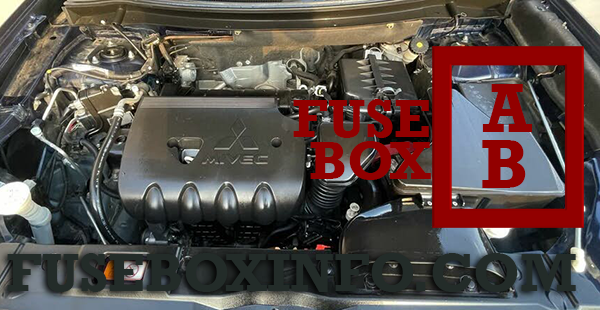

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A* | Power window control |
| 2 | 30A* | Defogger |
| 3 | 30A | Heater |
| 4 | 30A | Windshield wipers |
| 5 | 20A | Door locks |
| 6 | 10A | Rear fog light |
| 7 | 15A | 12 V power outlet |
| 8 | 15A | Rear window wiper |
| 9 | 20A | Sunroof |
| 10 | 10A | Ignition switch |
| 11 | 10A | Option |
| 12 | 15A | Hazard warning flasher |
| 13 | 10A | 4-wheel drive system |
| 14 | 15A | Stop lights (Brake lights) |
| 15 | 10A | Gauges |
| 16 | 7.5A | SRS airbag |
| 17 | 15A | Radio |
| 18 | 7.5A | Control unit relay |
| 19 | 15A | Interior lights (Room lights) |
| 20 | 7.5A | Back-up lights |
| 21 | 7.5A | Heated outside rearview mirrors |
| 22 | 10A | Outside rearview mirrors |
| 23 | 15A | Cigarette lighter/ 12V power outlet |
| 24 |
7.5A 15A |
Charge Heated steering wheel |
| 25 | 30A* | Power seat (Driver seat) |
| 26 | 30A | Heated seats |
| 27 | 30A* | Power seat (Passenger seat) |
* Fusible link
Engine compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| SBF1 |
30A* 40A* |
Air conditioning condenser fan motor VLC |
| SBF2 | 30A* | Starter |
| SBF3 | 30A* | Air conditioning condenser fan motor |
| SBF4 | 40A* | Radiator fan motor |
| SBF5 | 40A* | Anti-lock braking system |
| SBF6 | 50A* | Electric parking brake |
| SBF7 | 30A* | Anti-lock braking system |
| BF1 | 30A | Power liftgate |
| BF2 | 30A | Audio system amplifier |
| BF3 | 30A | IOD |
| BF4 | 30A | Diesel |
| 1 | 20A | Automatic transaxle |
| 2 | 15A | Wiper de-icer |
| 3 | 7.5A | Electric parking brake |
| 4 | 10A | Daytime running lights |
| 5 | 15A | Front fog lights |
| 6 | 10A | Air conditioner |
| 7 | 20A | Headlight washer |
| 8 | 20A | Security horn |
| 9 | 10A | Horn |
| 10 | 15A | ETV |
| 11 | 7.5A | Alternator |
| 12 | 7.5A | Engine |
| 13 |
20A 25A |
ENG/POWER Fuel line heater |
| 14 | 15A | Fuel pump |
| 15 | 10A | Ignition coil |
| 16 | 10A | ENG/POWER |
| 17 | 10A | Headlight (high beam) (left) |
| 18 | 10A | Headlight (high beam) (right) |
| 19 | 20A |
Headlight (low beam) (left) LED |
| 20 | 20A |
Headlight (low beam) (right) LED |
| 21 | 10A |
Headlight (low beam) (left) Halogen |
| 22 | 10A |
Headlight (low beam) (right) Halogen |
| 23 | 7.5A | Battery current sensor |
| #1 | 10A | Spare fuse |
| #2 | 15A | Spare fuse |
| #3 | 20A | Spare fuse |
* Fusible link
Engine compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| SBF1 | 30A* | Electric parking brake |
| SBF2 | 30A* | Electric parking brake |
* Fusible link
