Mitsubishi Outlander 2009 Fuse Box Info
Passenger compartment fuse box location:
The fuse box (LHD vehicles) is located at the left side of the steering column at the bottom of the instrument panel, behind the cover. The fuse box (RHD vehicles) is located behind the glove box.

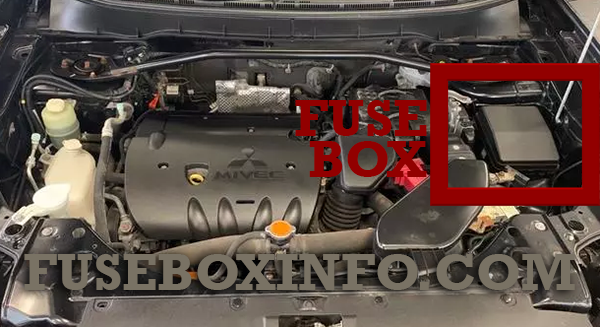

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Heater |
| 2 | 15A | Stop lights (Brake lights) |
| 3 | 10A | Rear fog light |
| 4 | 30A | Windshield wiper |
| 5 | 10A | Optional |
| 6 | 20A | Door locks |
| 7 | 15A | Radio |
| 8 | 7.5A | Control unit relay |
| 9 | 15A | Interior lights (Dome lights) |
| 10 | 15A | Hazard warning flasher |
| 11 | 15A | Rear window wiper |
| 12 | 7.5A | Instruments |
| 13 | 15A | Cigarette lighter/Accessory socket |
| 14 | 10A | Ignition switch |
| 15 | 20A | Sunroof |
| 16 | 10A | Outside rearview mirrors |
| 17 | 10A | 4-wheel drive system |
| 18 | 7.5A | Reversing lamps (Backup lamps) |
| 19 | 15A | Accessory socket |
| 20 | 30A | Electric window control |
| 21 | 30A | Rear window demister |
| 22 | 7.5A | Heated door mirror |
| 23 | 15A | AC power supply |
| 24 | 25(20)A | Power seats |
| 25 | 30A | Seat heater |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Front fog lights |
| 2 | 7.5A | Engine |
| 3 | 20A | Automatic transaxle |
| 4 | 10A | Horn |
| 5 | 7.5A | Alternator |
| 6 | 20A | Headlight washer |
| 7 | 10A | Air conditioning |
| 8 | 15A | ETV |
| 9 | 20A | Security horn |
| 10 | 15A | Wiper deicer |
| 11 | - | - |
| 12 | 30A | Electric tailgate |
| 13 | 10A | Daytime running light |
| 14 | 10A | Headlight (high beam) (left) |
| 15 | 10A | Headlight (high beam) (right) |
| 16 | 20A |
Headlamp low beam (left) Discharge |
| 17 | 20A |
Headlamp low beam (right) Discharge |
| 18 | 10A |
Headlamp low beam (left) Halogen |
| 19 | 10A |
Headlamp low beam (right) Halogen |
| 20 | 10A | ENG/POWER |
| 21 | 10A | Ignition coil |
| 22 | 20A | ENG/POWER |
| 23 | 15A | Fuel pump |
| 24 | 30A | Starter |
| 25 | - | - |
| 26 | 40A | Anti-lock braking system |
| 27 | 30A | Anti-lock braking system |
| 28 | 30A | Air conditioning condenser fan motor |
| 29 | 40A | Radiator fan motor |
| 30 | 30A | IOD |
| 31 | 30A | Audio system amp |
| 32 | 30A | Diesel |
| 33 | 10A | Spare fuse |
| 34 | 15A | Spare fuse |
| 35 | 20A | Spare fuse |
