Lincoln Aviator 2026 Fuse Box Info

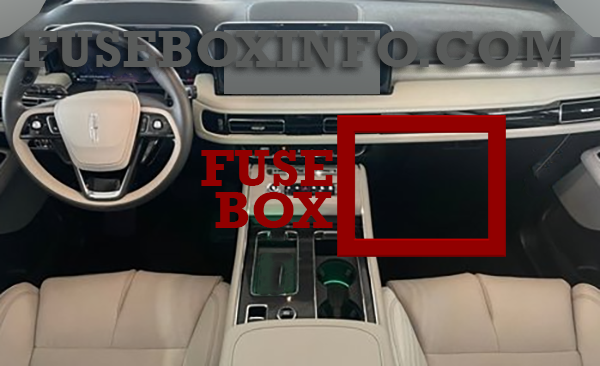

Passenger compartment fuse box location:
The fuse box is located behind the glove box.

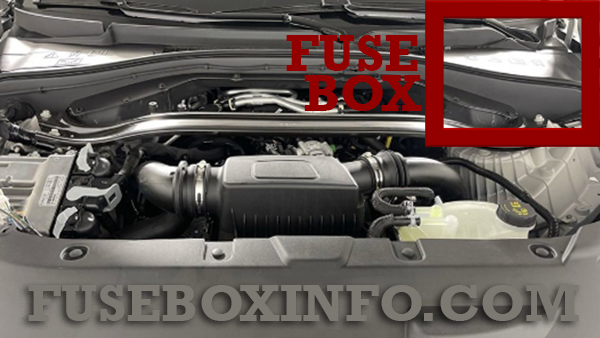

Engine compartment fuse box location:
The fuse box is located under the driver side leaf screen in the engine compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 3 | 7.5A | Wireless accessory charging module, Driver seat switch, Passenger seat switch |
| 7 | 7.5A | Gear shift module |
| 8 | 7.5A | Embedded modem |
| 9 | 5A | Driver keypad, Passenger keypad, Rear audio control module |
| 10 | 15A | Driver multi-contour seat module, Passenger multi-contour seat module |
| 12 | 5A | Climate control module |
| 13 | 7.5A | Steering column control module |
| 19 | 7.5A | Head up display module, Bluetooth low energy module |
| 20 | 5A | Headlamp switch |
| 23 | 60A | Driver door module |
| 24 | 30A | Glass roof |
| 26 | 60A | Passenger door module |
| 31 | 10A | Terrain management switch, Enhanced central gateway, Radio transceiver module |
| 32 | 20A | Radio |
| 33 | 7.5A | Instrument cluster |
| 35 | 10A | Center display |
| 36 | 5A | Not used (spare) |
| 39 | 5A | Power liftgate module, Driver status monitor camera |
| 40 | 60A | Not used (spare) |
| 42 | 15A | Phoenix module, Integrated control panel |
| 43 | 30A | Power liftgate module |
| 44 | 30A | Driver seat motors |
| 45 | 30A | Passenger seat motors |
| 50 | 10A | Continuous control dampening |
| 52 | 5A | All wheel drive module |
| 55 | 5A | Auto dimming rear view mirror |
| 60 | 10A | Glass roof, Power inverter |
| 61 | 30A | Not used (spare) |
| 62 | 20A | Driver door E-latch |
| 63 | 20A | Passenger door E-latch |
| 64 | 20A | Passenger rear door E-latch |
| 65 | 20A | Driver rear door E-latch |
| 70 | 20A | Advanced driver assistance system |
| 134 | 10A | Not used (spare) |
| 142 | 5A | Not used (spare) |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Body control module feed 1 |
| 3 | 30A | Body control module feed 2 |
| 4 | 30A | Fuel pump feed |
| 5 | 50A | Live Power |
| 6 | 20A | Powertrain control module - vehicle power 1 |
| 7 | 20A | Powertrain control module - vehicle power 2 |
| 8 | 20A | Powertrain control module - vehicle power 3 |
| 9 | 20A | Powertrain control module - vehicle power 4 |
| 13 | 40A | Blower motor |
| 14 | 15A | Powertrain control module - aux vehicle power 3 |
| 16 | 15A | Rear windshield washer |
| 18 | 30A | Starter motor solenoid |
| 21 | 10A | Not used (spare) |
| 22 | 5A | Run-start signal - electronic power assist steering |
| 23 | 5A | Run-start signal - anti-lock brake system |
| 24 | 5A | Run-start signal - powertrain control module |
| 25 | 10A | Air quality sensor |
| 26 | 15A | Run-start power - transmission oil pump |
| 28 | 40A | Anti-lock brake system valves |
| 29 | 60A | Anti-lock brake system pump |
| 30 | 50A | Upfitter interface module power feed 1 (police) |
| 31 | 50A | Upfitter interface module power feed 2 (police) |
| 32 | 20A | Power outlet 1 - front bin |
| 33 | 20A | Power outlet 2 - cargo area |
| 34 | 20A | Power outlet 3 - main bin |
| 35 | 20A | Power outlet 4 - back of console |
| 36 | 40A | 110 V inverter |
| 38 | 30A | Climate controlled front seats (heated only seats), Climate controlled driver seats (heated/ventilated seats) |
| 39 | 30A | Climate controlled passenger seats (heated/ventilated seats) |
| 40 | 60A | Audio amplifier - 28 speaker system |
| 42 | 30A | Trailer tow brake control |
| 43 | 40A | Body control module feed 3 |
| 45 | 15A | Run-start power - interior power distribution box |
| 48 | 5A | Police accessory independent timed-release output |
| 50 | 40A | Heated rear window |
| 54 | 20A | Run-start power - heated steering wheel |
| 55 | 20A | Trailer tow park lamps |
| 57 | 30A | Trailer tow battery charge |
| 58 | 10A | Trailer tow back up lamps |
| 64 | 40A | Driveline control module |
| 69 | 30A | Front wiper motor |
| 70 | 10A | Onboard diagnostics connector |
| 71 | 15A | Rear wiper motor |
| 72 | 20A | Air suspension valves |
| 79 | 5A | LED headlamp control module |
| 88 | 20A | Rear blower motor |
| 91 | 20A | Trailer tow lighting module |
| 95 | 15A | Hybrid powertrain control module (FHEV only) |
| 103 | 50A | Cargo area power feed 2 (police) |
| 104 | 50A | Cargo area power feed 1 (police) |
| 106 | 40A | Police 6-way inline power feed 2 |
| 107 | 40A | Police 6-way inline power feed 1 |
| 108 | 20A | Police spot lamps |
| 111 | 30A | Body control module feed 4 |
| 114 | 50A | Air suspension pump |
| 115 | 20A | Audio amplifier power feed 1 - 10/14 speaker system |
| 116 | 5A | Start signal - police tap-in |
| 118 |
30A 20A |
Rear heated seats Run-start power 2 - police tap-in |
| 120 | 15A | Fuel injectors |
| 124 | 5A | Rain sensors |
| 125 | 5A | USB power outlet - second row console |
| 127 | 20A | Audio amplifier power feed 2 - 10/14 speaker system |
| 128 | 5A | Lincoln star illumination |
| 131 | 40A | Power folding seats |
| 133 | 15A | Heated wiper blades |
| 139 | 5A | USB power outlet - back of console |
| 140 | 5A | USB power outlet - main bin |
| 141 | 5A | USB power outlet - third row |
| 144 | 15A | Not used (spare) |
| 146 | 5A | Hybrid battery energy control module (FHEV only) |
| 148 | 30A | Left LED headlamp |
| 149 | 30A | Right LED headlamp |
| 150 | 40A | Police 6-way inline power feed 3 |
| 155 | 25A | Transmission oil pump (FHEV only) |
| 159 | 15A | DC/DC converter (police) |
| 160 | 10A | Police tap-in power feed 3 |
| 169 | 10A | Motor electric cooling pump (FHEV only) |
| 170 | 10A | Traction battery cooling pump (FHEV only) |
| 177 | 10A | Center console blower motor |
