Lincoln Nautilus 2025 Fuse Box Info

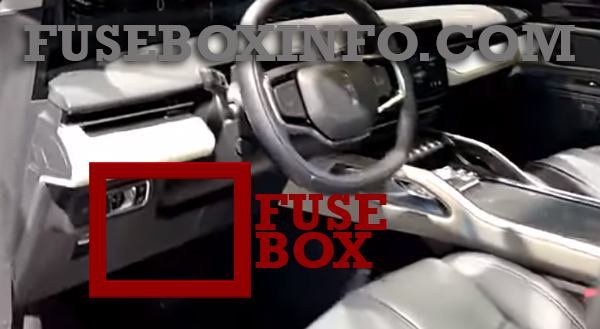

Passenger compartment fuse box location:
The fuse box is located under the steering column.

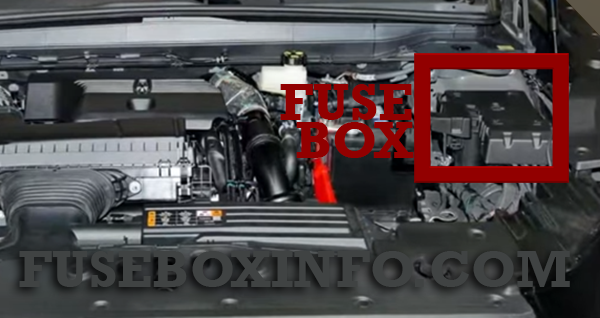

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 3 | 7.5A | Seat control switch, Wireless accessory control module |
| 6 | 30A | Driver seat climate control |
| 7 | 7.5A | Gear shift module |
| 8 | 7.5A | Telematics control module |
| 9 | 5A | Interior anti-theft alarm sensor, Rear seat heater control module |
| 10 | 10A | Driver seat massage |
| 13 | 7.5A | Steering column module |
| 19 | 7.5A | Bluetooth connectivity module |
| 20 | 5A | Exterior lights switch |
| 23 | 30A | Driver door control module |
| 26 | 30A | Passenger door control module |
| 31 | 7.5A | A/C control unit |
| 32 | 20A | Voice control unit, Center display |
| 34 | 20A | Multifunction display 2 |
| 35 | 5A | Electronic toll collection module 1 |
| 36 | 5A | Electronic toll collection module - ignition, Interior air particulate sensor |
| 38 | 40A | High voltage power outlet |
| 39 | 5A | Hands-free power liftgate |
| 41 | 20A | Multifunction display 3 |
| 42 | 10A | Keyless start remote key receiver |
| 43 | 30A | Power liftgate |
| 44 | 30A | Driver power seat |
| 45 | 30A | Passenger power seat |
| 50 | 10A | Left multi-contour seat control |
| 55 | 5A | Electrochromatic rear view mirror |
| 60 | 10A | Moonroof control module |
| 62 | 20A | Driver power door latch |
| 63 | 20A | Passenger power door latch |
| 64 | 20A | Right rear power door latch |
| 65 | 20A | Left rear power door latch |
| 70 | 20A | Advanced driver assistance module |
| 75 | 10A | Rear multi-contour seat 2 |
| 76 | 7.5A | Driver status monitor |
| 77 | 20A | Radio control unit |
| 78 | 10A | A/C vents control |
| 79 | 10A | Multifunction display 1 |
| 80 | 5A | Digital scent module |
| 81 | 20A | Passenger door control module 2 |
| 82 | 20A | Driver door control module 2 |
| 83 | 5A | Driver keypad |
| 84 | 10A | Rear electric multi-contour seat |
| 85 | 5A | All wheel drive ignition power |
| 112 | 30A | Left rear power seat |
| 113 | 30A | Right rear power seat |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Supply line body control module ignition 1 |
| 2 | 30A | Supply line body control module ignition 2 |
| 3 | 40A | Supply line body control module permanent power |
| 4 | 60A | Anti-lock brake system power 1, Electronic stability program power 1 |
| 7 | 40A | Anti-lock brake system power 2, Electronic stability program power 2 |
| 14 | 5A | Hybrid drive controller permanent power |
| 15 | 15A | Powertrain control module |
| 16 | 15A | Exhaust gas sensors, Fuel system |
| 17 | 15A | Air conditioning clutch, Grille shutter |
| 18 | 20A | Exhaust gas sensors downstream |
| 21 | 40A | Electric coolant heater 3 |
| 22 | 30A | Smart headlamp - right, Tail lamp - right |
| 23 | 30A | Smart headlamp - left, Tail lamp - left |
| 24 | 30A | Engine starter motor |
| 26 | 20A | Fuel pump |
| 27 | 20A | Power point 1 |
| 28 | 20A | Power point 2 |
| 29 | 20A | Power point 3 |
| 30 | 5A | USB smart charging type A, High mount camera |
| 31 | 30A | Windshield wiper motor |
| 32 | 5A | Windshield rain sensor |
| 33 | 60A | Electric coolant heater 2 |
| 36 | 40A | Supply line body control module permanent power |
| 41 | 20A | Running board - right |
| 42 | 40A | Trailer tow module |
| 43 | 20A | Interior fuse box supply |
| 46 | 30A | Second row captain chairs control |
| 48 | 15A | Audio amplifier 1 |
| 49 | 10A | Electronic stability power |
| 50 | 10A | Powertrain control module ignition |
| 51 | 10A | Interior air quality sensor |
| 54 | 40A | Rear window heater |
| 58 | 40A | Electric coolant heater 1 |
| 62 | 40A | Front cooling pack blower motor |
| 69 | 5A | Electric steering assist ignition supply |
| 70 | 10A | On board diagnostic port power |
| 73 | 20A | Rear wiper motor |
| 78 | 15A | Heated windscreen wiper park area |
| 79 | 5A | Smart headlamp control module |
| 80 | 15A | Heated steering wheel |
| 82 | 10A | Hybrid drive controller active power (hybrid) |
| 84 | 15A | Engine fuel injectors power |
| 86 | 20A | Advanced driver assistance system |
| 90 | 15A | Rear window washer |
| 95 | 10A | Hybrid drive system control module (hybrid) |
| 101 | 5A | USB charging port 3 (console dual port - right) |
| 102 | 5A | USB charging port 3 (console dual port - left) |
| 103 | 10A | USB smart dedicated charging port 3 (console) |
| 105 | 25A | Hybrid transmission oil pump (hybrid) |
| 107 | 30A | Glass roof control module |
| 110 | 20A | Running board - left |
| 111 | 30A | Second row seat electric fold |
| 137 | 15A | Audio amplifier 2 |
| 138 | 60A | Digital sound processor, Amplifier |
| 146 | 10A | Battery energy control module (hybrid) |
| 159 | 5A | High voltage/12V transformer (hybrid) |
| 168 | 5A | Traction battery switch low voltage service disconnect (hybrid), Acoustic vehicle alerting system (hybrid) |
| 169 | 10A | E-Drive electronics coolant pump (hybrid) |
| 170 | 10A | Traction battery coolant pump (hybrid) |
| 180 | 40A | All wheel drive control module |
