Lincoln Nautilus 2021 Fuse Box

Lincoln Nautilus 2021 Fuse Box Info

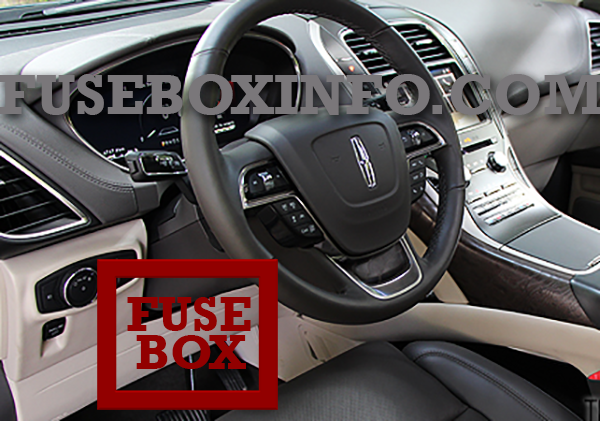

Fuse box location:

The fuse panel is under the instrument panel to the left of the steering column.

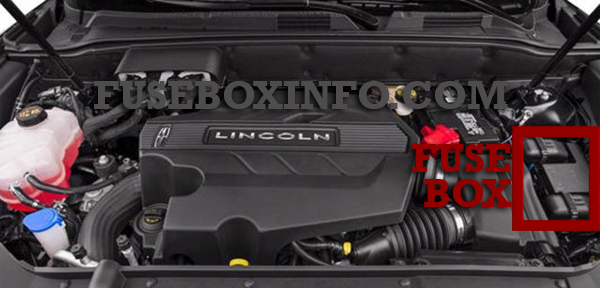

Engine compartment fuse box:





Fuse Box Diagram | Layout

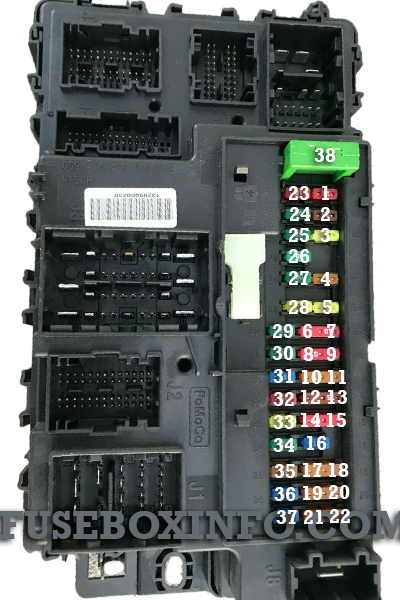

Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
1 - Not used
2 10A Delayed accessory - power inverter logic, moonroof logic and driver window switch power
3 7.5A Memory seats, Lumbar, Wireless accessory charging
4 20A Subwoofer amplifier
5 - Not used
6 10A Security horn relay
7 10A Gearshift module
8 5A Power liftgate module, Hands free liftgate module, Embedded modem
9 5A Keypad, Combined sensing module
10 - Not used
11 - Not used
12 7.5A Climate control module, Enhanced central gateway module
13 7.5A Instrument cluster, Steering column control module
14 15A Not used
15 15A SYNC module
16 - Not used
17 7.5A Headlamp control module
18 7.5A Not used (spare)
19 5A Headlamp switch, Bluetooth low energy module
20 5A Push button ignition switch
21 5A Not used (spare)
22 5A Not used (spare)
23 30A Driver door window and mirror, Driver door module, Driver door lock indicator, Driver lock switch illumination
24 30A Moonroof
25 20A Amplifier
26 30A Front passenger door window and mirror, Front passenger door module, Front passenger lock indicator, Front passenger switch illumination
27 30A Left-hand rear door module
28 30A Right-hand rear door module
29 15A Enhanced central gateway power - OBD connector
30 5A Not used (spare)
31 10A Radio transceiver module, Multi-function display, Integrated control panel
32 20A Radio
33 - Not used
34 30A Run-start bus (fuse 17, 18, 21, 22, 35, 36, 37, circuit breaker 38)
35 5A Passenger airbag deactivation indicator
36 15A Rear heated seat module, Suspension module
37 20A Heated steering wheel, Auto-dimming interior mirror, Automatic high beam and lane departure mirror module, Parking assist control module
38 30A Circuit breaker

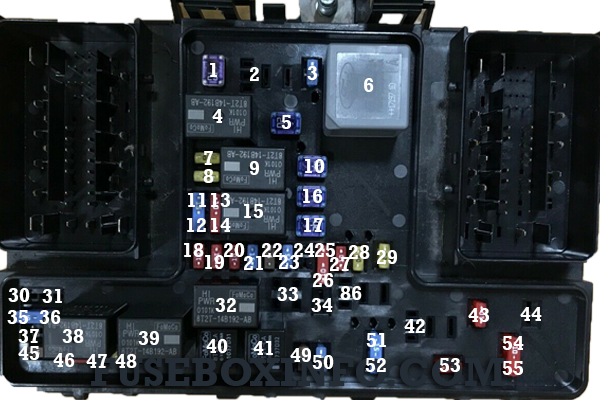

Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1 30A Second row power seat
2 - Starter relay
3 15A Rear wiper, Rain sensor, Rear wash relay coil
4 - Blower motor relay
5 - Not used
6 - Not used
7 20A Powertrain control module - vehicle power 1
8 20A Powertrain control module - vehicle power 2, Canister vent, Vapor blocking value, Heated oxygen post
9 - Powertrain control module relay
10 20A Power point 5-main bin
11 15A Powertrain control module - vehicle power 4
12 15A Powertrain control module - vehicle power 3
13 - Not used
14 - Not used
15 - Run/start relay
16 20A Power point 2 - back of console
17 20A Power point 4 - luggage compartment
18 - Not used
19 10A Run-start electronic power assist steering
20 10A Run/start lighting
21 - Not used
22 10A Air conditioner clutch solenoid
23 15A Front split view camera, Rear view camera, Forward looking radar,  360° camera module, Blind spot information system, Voltage quality module (start/stop)
24 10A Not used (spare)
25 10A Run-start anti-lock brake system
26 10A Run-start powertrain control module
27 5A USB power outlet - back of console
28 10A Rear window washer pump
29 - Not used
30 - Not used
31 - Not used
32 - Electronic fan 1 relay
33 - A/C clutch relay
34 - Not used
35 - Not used
36 - Not used
37 - Not used
38 - Electronic fan 2 relay
39 - Electronic fan 3 relay
40 - Horn relay
41 - Left-hand high beam and stoplamp relay
42 - Fuel pump relay
43 15A Right-hand high beam and stoplamp
44 - Not used (spare)
45 - Not used
46 - Not used
47 - Not used
48 15A Left high beam and stop lamp
49 - Not used
50 20A Horn
51 - Not used
52 - Not used
53 10A Massaging seats
54 10A Brake on off switch
55 10A Alternator A-line
86 - Not used

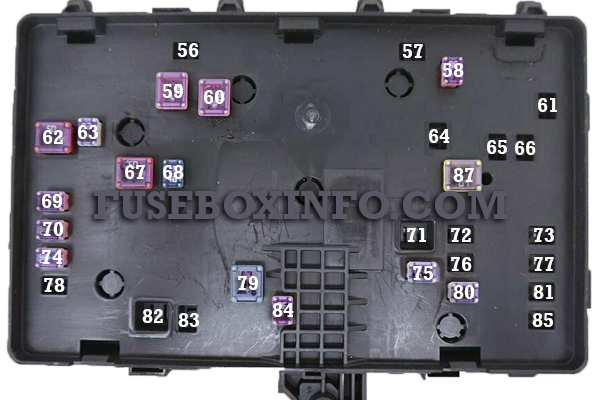

Engine compartment fuse box - bottom:

Fuse/Relay N° Rating Functions
56 - Not used
57 - Not used
58 30A Fuel pump feed
59 40A Electronic fan 3
60 40A Electronic fan 1
61 - Not used
62 50A Body control module 1
63 25A Electronic fan 2
64 - Not used
65 20A Front heated seat
66 15A Not used (spare)
67 50A Body control module 2
68 40A Heated rear window
69 30A Anti-lock brake system valves
70 30A Passenger seat
71 - Not used
72 - Not used
73 20A Rear heated seats
74 30A Driver seat module
75 25A Windshield wiper motor
76 30A Power liftgate module
77 30A Climate controlled seat module
78 40A Trailer tow
79 40A Blower motor
80 - Not used (spare)
81 40A 110 volt inverter
82 - Not used
83 - Not used
84 30A Starter motor solenoid
85 - Not used
87 60A Anti-lock brake system pump
