Lincoln LS 2005 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located on the right hand side kick panel.
Engine compartment fuse box location:

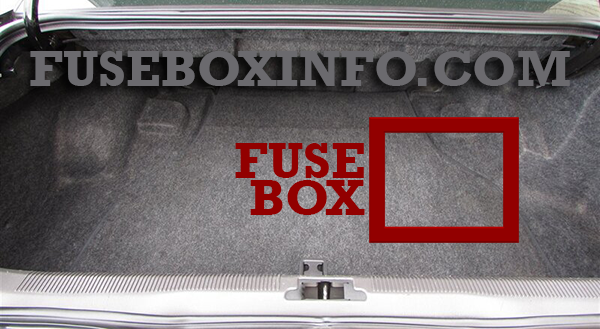

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Starter Relay Coil |
| 2 | 5A | Radio |
| 3 | 5A | ABS/TCS/AdvanceTrac |
| 4 | 5A | Cluster, Powertrain Control Module (PCM) relay, Fuel pump relay, REM |
| 5 | 10A | Restraints Control Module (RCM) |
| 6 | 10A | OBD II |
| 7 | 5A | DDM, DSM, Anti-theft LED, Power mirror switch, Electric Park Brake switch, PCM |
| 8 | 5A | Right front turn, Right front sidemarker, Right front park lamps |
| 9 | 15A | Right front low beam/HID |
| 10 | 5A | Left front turn, Left front sidemarker, Left front park lamps |
| 11 | 10A | Left Front High Beam |
| 12 | 5A | Electrochromic mirror |
| 13 | 5A | Cluster |
| 14 | 10A | DATC |
| 15 | 5A | O/D cancel, ABS/Traction-Assist switch |
| 16 | 5A | Heated seat controls, Climate control seat module |
| 17 | 5A | RCM, Alternator Warning Lamp |
| 18 | 20A | Radio, CIA, Navigation unit |
| 19 | 15A | Tilt/Tele Motors |
| 20 | 10A | FEM, DATC, Cluster, REM |
| 21 | 7.5A | Not used (spare) |
| 22 | 10A | DDM, Driver Door Mirror |
| 23 | 10A | Right Front High Beam |
| 24 | 5A | PATS |
| 25 | 15A | Left front low beam/HID |
| 26 | 5A | Wiper module |
| 27 | 10A | Radio, Navigation unit |
| 28 | 5A | Not Used (Spare) |
| 29 | 5A | FEM, Reverse park assist |
| 30 | 5A | FEM, Passenger Power Mirror |
| 31 | - | Not Used |
| 32 | 20A | Cigar Lighter |
| 33 | 10A | Switch Backlighting, FEM |
| 34 | 10A | Not Used (Spare) |
| 35 | 5A | Stop Lamp Signal |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | A/C clutch, Coolant control valve, Auxiliary coolant pump |
| 2 | - | Not Used |
| 3 | 15A | Fog Lamp |
| 4 | 15A | Horn |
| 5 | 15A | Fuel injectors, Electric cooling fan, Mass Air Flow (MAF) sensor |
| 6 | 15A | Transmission solenoid, EGR |
| 7 | - | Not Used |
| 8 | - | Not Used |
| 9 | - | Not Used |
| 10 | - | Not Used |
| 11 | 15A | HEGO’s |
| 12 | 15A | Coil-on-plug |
| 13 | 30A | Heated Wiper Park |
| 14 | 30A | ABS Module |
| 15 | - | Not used |
| 16 | 30A | Blower Motor |
| 17 | - | Not Used |
| 18 | - | Not Used |
| 19 | 30A | Electric park brake |
| 20 | 30A | Wiper Motor |
| 21 | 30A | Starter Solenoid |
| 22 | 30A | ABS Motor |
| 23 | - | Not Used |
| 24 | - | Not Used |
| Relay 01 | - | Not used |
| Relay 02 | - | Not used |
| Relay 03 | - | Coil-on-plug and HEGOs |
| Relay 04 | - | Right-hand HID headlamps |
| Relay 05 | - | Auxiliary coolant pump (V8 engines) |
| Relay 06 | - | Left-hand HID headlamps |
| Relay 07 | - | Fog Lamps |
| Relay 08 | - | A/C Clutch |
| Relay 09 | - | Not Used |
| Relay 10 | - | Blower Motor |
| Relay 11 | - | Not used |
| Relay 12 | - | Heated Wiper Park |
| Relay 13 | - | Horn |
| Relay 14 | - | PCM Power |
| Relay 15 | - | Starter Motor |
| Diode | - | PCM |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Decklid release solenoid, Passenger door lock motors |
| 2 | 10A | Right Rear Turn Lamp, License Plate Lamp |
| 3 | 5A | Left rear stop/tail lamp |
| 4 | 10A | Fuel door release solenoid, Decklid lamp |
| 5 | 10A | Courtesy and map lamps, Radio antenna module |
| 6 | 10A | Left Rear Turn and Back-up Lamps |
| 7 | 5A | Right rear stop/tail lamp |
| 8 | 10A | Center High Mounted Stop Lamp |
| 9 | 5A | Heated Mirror |
| 10 | 20A | Power point - console |
| 11 | 20A | Rear heated seats |
| 12 | 20A | Power point - ashtray |
| 13 | - | Not used |
| 14 | 10A | Navigation unit |
| 15 | 5A | Alternator Sense |
| 16 | 20A | Moonroof |
| 17 | 15A | Fuel Pump Motor |
| 18 |
20A 30A |
Subwoofer amp THX amp, Subwoofer amp |
| 19 | 20A | REM - Left Rear Window |
| 20 | 30A | Front window motors |
| 21 | 20A | Driver Lumbar, Power Seats |
| 22 | 20A | Ignition Switch |
| 23 | 30A | SSP4 |
| 24 | 30A | SSP3 |
| 25 | 40A | P-J/B |
| 26 | 30A | Climate control seat module |
| 27 | 30A | SSP1 |
| 28 | 20A | Passenger Lumbar, Power Seats |
| 29 | 30A | Rear Defroster |
| 30 | 20A | REM - Right Rear Window |
| 31 | 30A | Powertrain main power |
| 32 | 30A | SSP2 |
| Relay 001 | - | SSP1 |
| Relay 002 | - | SSP4 |
| Relay 003 | - | Rear Defroster |
| Relay 004 | - | SSP3 |
| Relay 005 | - | SSP2 |
| Relay 006 | - | Not used |
| Relay 007 | - | Fuel Pump Motor |
| Diode 01 | - | Not Used |
| Diode 02 | - | Fuel Pump Motor |
