Kia K8 2026 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout

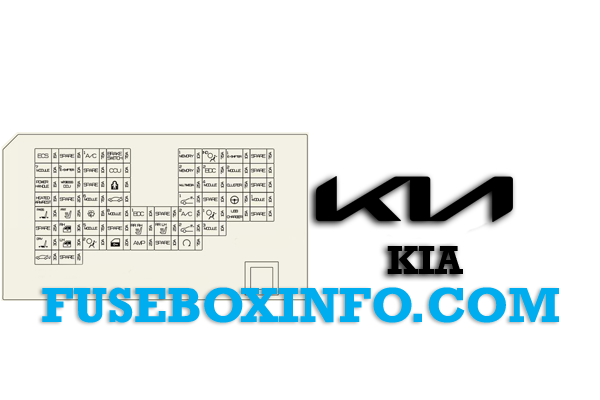

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ECS | 15A | ECS (Electronic Control Suspension) Unit |
| A/C1 | 7.5A | Air Conditioner Control Module, Heater Control Switch, Engine Room Junction Block (Blower Relay) |
| MODULE1 | 10A | Not Used |
| MEMORY | 10A | IBU (Integrated Body Control Unit), Instrument Cluster, Air Conditioner Control Module, Front Console Mood Lamp, Passenger Mood Lamp, Driver/Passenger Door Garnish Mood Lamp, ADAS Unit (Parking), Driver/Passenger Door Garnish Inner Mood Lamp, Head Up Display, Security Indicator, Mood Lamp Unit, Driver/Passenger Door Power Handle Mood Lamp, Rear Door Garnish Inner Mood Lamp Left Handle side/Right Handle side |
| E-SHIFTER1 | 10A | SCU (System Control Unit), Electronic ATM (Automatic Transmission) Shift Lever Switch |
| MULTI MEDIA | 20A | Audio, Audio/Video & Navigation Head Unit |
| E-CALL | 10A | Emergency Call (E-Call) Module |
| SUNROOF1 | 20A | Sunroof Control Unit (Roller) |
| DRIVER P/SEAT1 | 25A | Driver IMS (Integrated memory system) Control Module, Driver Power Seat Switch |
| P/CHILD LOCK | 15A | Power Child Lock Relay, Power Child Unlock Relay |
| MODULE2 | 7.5A | IBU (Integrated Body Control Unit) (Ignition switch2) |
| WASHER | 15A | Multifunction Switch |
| TRUNK LID | 10A | Trunk Relay |
| AIR BAG IND. | 7.5A | Instrument Cluster, Overhead Console Lamp (PAB OFF) |
| IBU1 | 7.5A | IBU (Integrated Body Control Unit) (Ignition switch1) |
| DRIVER P/SEAT2 | 10A | Driver Air Lumbar Support Motor |
| SUNROOF2 | 20A | Sunroof Control Unit (Glass) |
| PASSENGER P/SEAT | 25A | Passenger Power Seat Switch |
| POWER HANDLE | 15A | Not Used |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay |
| MDPS | 7.5A | MDPS Unit - MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering) |
| CLUSTER | 10A | Instrument Cluster (Ignition switch1) |
| BRAKE SWITCH1 | 10A | IBU (Integrated Body Control Unit), Stop Lamp Switch |
| REAR LH S/HEAT | 25A | Rear Air Ventilation Seat Control Module Left Handle side, Rear Seat Warmer Control Module |
| MODULE3 | 10A | Data Link Connector, Hazard Switch, Rain Sensor, Power Trunk Module, Driver Door Module, Driver IMS (Integrated memory system) Control Module, Driver Power Seat Switch, Driver/Passenger Power Outside Mirror, Driver Air Lumbar Support Motor |
| MODULE4 | 7.5A | Driver/Passenger Power Outside Mirror, Driver/Passenger Door Outside Handle |
| FRONT S/HEAT | 25A | Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
| BRAKE SWITCH2 | 10A | Stop Lamp Switch |
| MODULE5 | 10A | Data Link Connector, Overhead Console Lamp, Wireless Charger, AMP (Amplifier), Audio, Audio/Video & Navigation Head Unit, Electro Chromic Mirror, Driver IMS (Integrated memory system) Control Module, Emergency Call (E-Call) Module, Heater Control Switch, Rear Power Window Switch Left Handle side/Right Handle side, Air Conditioner Control Module, Front/Rear Seat Warmer Control Module, Head Lamp Left Handle side/Right Handle side, Front Air Ventilation Seat Control Module, Crash Pad Switch, Rear Air Ventilation Seat Control Module Left Handle side/Right Handle side |
| REAR RH S/HEAT | 15A | Rear Air Ventilation Seat Control Module Right Handle side |
| IBU2 | 10A | IBU (Integrated Body Control Unit) (B+) |
| MODULE6 | 10A | IBU (Integrated Body Control Unit), Audio, Audio/Video & Navigation Head Unit, Keyboard, AMP (Amplifier), Emergency Call (E-Call) Module, ADAS Unit (Parking) |
| MODULE7 | 10A | IBU (Integrated Body Control Unit), Crash Pad Switch, Front Console Switch, ECS (Electronic Control Suspension) Unit, Drive Mode Switch, ADAS Unit (Driving), ADAS Unit (Parking), Front View Camera, Front Radar, Front Corner Radar Left Handle side/Right Handle side, Rear Corner Radar Left Handle side/Right Handle side |
| MODULE8 | 10A | Driver Door Module (Ignition switch1) |
| POWER TRUNK LID | 30A | Power Trunk Module |
| POWER WINDOW LH | 30A | Driver Safety Power Window Module, Rear Power Window Switch Left Handle side, Rear Safety Power Window Module Left Handle side |
| AMP | 25A | AMP (Amplifier) |
| POWER WINDOW RH | 30A | Passenger Safety Power Window Module, Rear Power Window Switch Right Handle side, Rear Safety Power Window Module Right Handle side |
| USB CHARGER | 10A | Front USB Charger Unit, Rear Seat Power Outlet, Rear Console USB Charge Unit #1/#2 |
| AIR BAG2 | 15A | SRS (Supplemental Restraint System) Control Module (Ignition switch1) |
| E-SHIFTER2 | 10A | SCU (System Control Unit), Electronic ATM (Automatic Transmission) Shift Lever Switch |
| AIR BAG1 | 10A | SRS (Supplemental Restraint System) Control Module (B+) |
| POWER OUTLET | 20A | Rear Console Power Outlet |
| A/C2 | 10A | Air Conditioner Control Module, Blower Motor, Engine Room Junction Block (Blower Relay) |

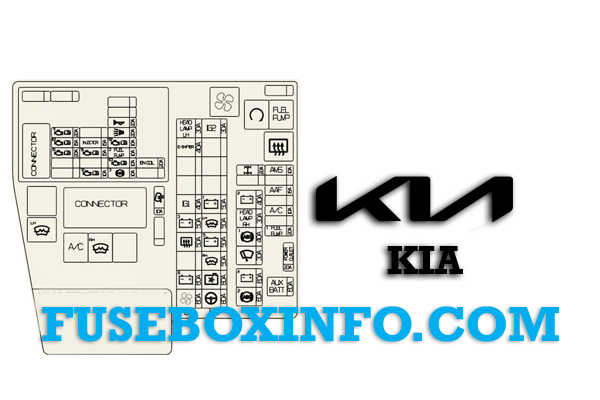

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | MDPS (Motor Driven Power Steering) Unit - MDPS is the same as EPS (Electric Power Steering) |
| COOLING FAN | 80A | Cooling Fan Motor |
| B+3 | 50A | ICU Junction Block (Fuse - DRIVER P/ SEAT1/ P/CHILD LOCK/ PASSENGER P/SEAT/ REAR LH S/ HEAT/ MODULE4) |
| BLOWER | 50A | Blower Relay |
| B+1 | 50A | ICU Junction Block (IPS1, IPS2, IPS3, IPS4, IPS5) |
| ABS1 | 40A | ESP (Electronic Stability Program) Control Module |
| IG2 | 30A | Start Relay, PCB (Printed Circuit Board) Block (Ignition switch2 Relay) |
| B+5 | 60A | ICU Junction Block (Fuse - REAR RH S/ HEAT/ IBU2/ POWER WINDOW LH/ AMP/ POWER WINDOW RH) |
| B+6 | 60A | PCB (Printed Circuit Board) Block (Engine Control Relay, Fuse - WIPER1/ TCU1/ ECU2/ HORN/ B/ALARM) |
| ABS2 | 60A | ESP (Electronic Stability Program) Control Module |
| REAR HEATED | 50A | Rear Heated Relay |
| IG1 | 40A | PCB (Printed Circuit Board) Block (Ignition switch1 Relay, ACC Relay) |
| B+2 | 40A | ICU Junction Block (IPS8, IPS9, IPS10, IPS11, IPS12) |
| E-SHIFTER | 30A | SCU (Shift By Wire Control Unit) |
| B+4 | 60A | ICU Junction Block (Long Term Load Latch Relay, Fuse - E-SHIFTER1/ SUNROOF1/ TRUNK LID/ DRIVER P/SEAT2/ SUNROOF2/ DOOR LOCK/ BRAKE SWITCH1/ MODULE3/ FRONT S/HEAT/ ECS/ POWER TRUNK LID/ AIR BAG1) |
| A/CON | 10A | Not Used |
| AMS | 10A | Battery Sensor |
| FUEL PUMP1 | 20A | Fuel Pump Relay |
| HEATED MIRROR | 10A | Rear Heated Relay, Driver Power Outside Mirror, Passenger Power Outside Mirror |
| WIPER1 | 30A | Wiper Power Relay |
| WIPER2 | 10A | IBU (Integrated Body Control Unit), ECM (Engine Control Module) |
| TCU1 | 20A | TCM (Transmission Control Module) |
| ECU2 | 15A | ECM (Engine Control Module) |
| ECU1 | 20A | ECM (Engine Control Module) |
| INJECTOR | 15A | Injector #1/#2/#3/#4/#5/#6 (MPI) |
| SENSOR1 | 15A | Oxygen Sensor #1/#2/#3/#4 |
| TCU2 | 10A | TCM (Transmission Control Module) |
| HORN | 20A | Horn Relay |
| B/ALARM | 20A | Burglar Alarm Horn Relay |
| SENSOR2 | 10A | Cooling Fan Motor, Oil Control Valve #1/#3 (Intake), Oil Control Valve #2/#4 (Exhaust), Variable Intake Solenoid Valve, Oil Pump Solenoid Valve, Purge Control Solenoid Valve |
| FUEL PUMP2 | 10A | Engine Room Junction Block (Fuel Pump Relay) |
| ECU3 | 10A | ECM (Engine Control Module) |
| ABS3 | 10A | ESP (Electronic Stability Program) Control Module |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4/#5/#6 |
| Battery Fuse Panel | ||
| ALT | 250A | ALT |
