Kia Sportage Hybrid 2026 Fuse Box Info

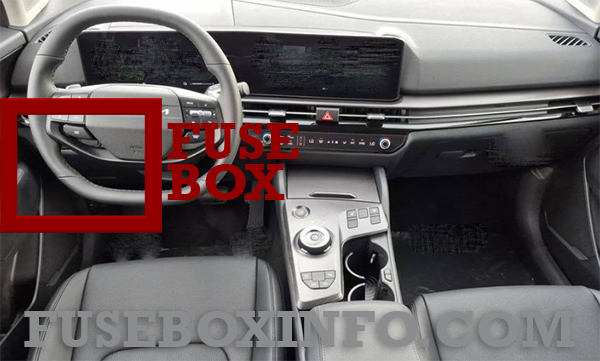

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

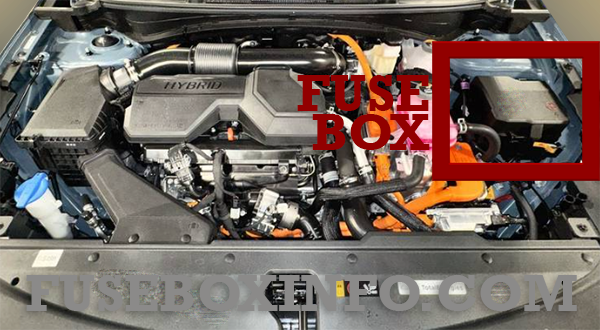

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| DOOR LOCK | 20A | Center Door Lock/Unlock Relay |
| P/WINDOW RH | 25A | Power Window Main Switch, Passenger Power Window Switch |
| P/WINDOW LH | 25A | Power Window Main Switch |
| S/HEATER (REAR) | 20A | Rear Seat Warmer Control Module |
| S/HEATER (DRV/ PASS) |
25A | Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
| P/SEAT (PASS) | 30A | Passenger Power Seat Switch, Passenger Seat Relay Unit |
| SUNROOF2 | 25A | Sunroof Controller (Blind Motor) |
| AIRBAG2 | 10A | SRS (Supplemental Restraint System) Control Module |
| SUNROOF1 | 25A | Sunroof Controller (Glass Motor) |
| P/SEAT DRV | 30A | Driver Power Seat Switch, Driver IMS (Integrated memory system) Control Module |
| MODULE9 | 10A | Driver IMS (Integrated memory system) Control Module, Driver/Passenger Smart Key Outside Handle, Rain Sensor, Hazard Switch, Data Link Connector, Power Liftgate Unit |
| AMP (Amplifier) | 25A | AMP (Amplifier) |
| BDC 2 | 7.5A | BDC (Body Domain Controller), Ignition Switch, Auto Transmission Lever |
| MEMORY1 | 10A | Outside Mirror Folding/Unfolding Relay, Driver/Passenger Power Outside Mirror, Instrument Cluster, Air Conditioner Controller (LCD), Air Conditioner Control Module, Mood Lamp Unit, Console Mood Lamp, Mood Lamp (Passenger), Crash Pad Switch, Integrated Parking Assist Unit, Low Voltage DC-DC converter (450W) |
| TAILGATE OPEN | 10A | Tailgate Relay |
| MODULE7 | 7.5A | BDC (Body Domain Controller) |
| BRAKE SWITCH | 7.5A | Stop Lamp Switch, BDC (Body Domain Controller) |
| MULTIMEDIA | 25A | Audio (Display), Audio/Video & Navigation Head Unit, Low Voltage DC-DC converter (200W) |
| WASHER | 15A | Multifunction Switch |
| MODULE8 | 15A | Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module, E/R Junction Block (Windshield Heated Relay LH) |
| AIRBAG1 | 10A | SRS (Supplemental Restraint System) Control Module |
| A/C2 | 7.5A | E/R Junction Block (PTC Heater Relay #1, Blower Relay), Air Conditioner Controller (LCD), Air Conditioner Control Module |
| MODULE2 | 10A | Front USB Charger Connector, Driver/Passenger Seat USB Port |
| MODULE6 | 7.5A | Console Switch, Drive Mode Switch, Data Link Connector, Auto Transmission Shift Lever Indicator |
| MODULE1 | 10A | Intergrated Parking Assist Unit, BDC (Body Domain Controller), Audio Keyboard, Audio/Video & Navigation Keyboard, Power Outside Mirror Switch, AMP (Amplifier), Audio (Display), Audio/Video & Navigation Head Unit, Low Voltage DC-DC converter |
| BDC (Body Domain Controller)1 |
10A | BDC (Body Domain Controller) |
| MODULE5 | 10A | Driver IMS (Integrated memory system) Control Module, Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module, AMP (Amplifier), Front Seat Warmer Control Module, Audio (Display), Audio/Video & Navigation Head Unit, Front Wireless Charger, Air Conditioner Controller (LCD), Air Conditioner Control Module, Electronic Chromic Mirror, Low Voltage DC-DC converter |
| MODULE4 | 10A | BDC (Body Domain Controller), Multifunction Front View Camera, Crash Pad Switch, Intergrated Parking Assist Unit, Front Corner Radar LH/RH, Clutch Module Cylinder Sensor, AWD (4-Wheel Drive) ECU (Electronic Control Unit), Head Lamp LH/RH, Rear Corner Radar LH/RH |
| E-SHIFTER3 | 7.5A | SCU (System Control Unit), Electronic Auto Transmission Shift Lever Switch |
| CLUSTER | 7.5A | Instrument Cluster |
| MODULE3 | 10A | Stop Lamp Switch, Overhead Console Lamp |
| MDPS 2 | 7.5A | Motor Driven Power Steering Unit - MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering) |
| START | 7.5A | Burglar Alarm Horn Relay, Transaxle Range Switch, Power train Control Module, BDC (Body Domain Controller), Ignition Switch, E/R Junction Block (Start Relay) |
| E-SHIFTER 2 | 10A | CONSOLE UPPER EXTN(Shift By Wire), SCU |
| MODULE 9 | 10A | A/CON UNIT, HAZARD Switch, ICC UNIT |
| MODULE 8 | 15A | POWER WINDOW MAIN Switch, O/S MIRROR DRV/PASS |
| TRAILER 2 | 30A | TRAILER (CTM2) |
| MODULE 11 | 10A | Active Air Flap (LOWER), VESS UNIT |
| wireless DCU | 7.5A | DCU |
| TRAILER 3 | 20A | TRAILER (E-BRAKE) |
| MODULE 7 | 7.5A | P-LBM, Front Heated Relay (Coil) |
| MODULE 6 | 7.5A | BDC |
| BATTERY MANAGEMENT | 10A | BMS(HEV/PHEV) |
| CCU | 10A | CCU |
| AMS 2 | 10A | Battery Sensor (PHEV Only) |
| BDC 1 | 10A | IGNITION Switch, BDC, BLE UNIT, UWB(FL/FR/RL/RR) |
| 4WD | 20A | 4WD ECU |
| MODULE 10 | 10A | Rain Sensor, KEY Soleniod (non SMK), OBD |
| OBC | 10A | OBC SIG (B+) |
| MEMORY 2 | 7.5A | CCNC KEYBOARD, CONSOLE TRAY EXTN(Wireless Charger) |
| MULTIMEDIA | 25A | CCNC |
| MODULE 3 | 10A | ICC UNIT, POWER WINDOW MAIN Switch |
| USB CHARGER | 15A | SEAT EXTN DRV/PASS, CONSOLE TRAY EXTN, CONSOLE POWER OUTLET |
| IG3 4 | 10A | CCU, Charge Door Module(PHEV only) |
| IG3 5 | 10A | CCNC(PHEV), A/CON UNIT(PHEV), HEV COMP SIG |
| IG3 6 | 10A | OBC SIG (IG3) |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| Motor Driven Power Steering1 | 80A | Motor Driven Power Steering Unit - MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering) |
| B+3 | 60A | PDC Junction Block (Fuse - E-SHIFTER2, TRAILER2, P/SEAT(DRV), P/SEAT (PASS), S/HEATER FRT, S/HEATER RR, SUNROOF1, MODULE11, P/WINDOW LH, P/WINDOW RH, MODULE8, TRAILER3, WIRELESS DCU, MODULE9) |
| W/S HEATED GLASS RH | 50A | Windshield Heated Relay RH |
| PTC HEATER1 | 50A | PTC Heater |
| W/S HEATED GLASS LH | 50A | Windshield Heated Relay LH |
| B+2 | 40A | PDC Junction Block (IPS8/IPS9/IPS10/IPS11/IPS12) |
| B+6 | 40A | PDC Junction Block (Fuse - AMP, MODULE10, AIRBAG2) |
| POWER TAILGATE | 40A | Powere Tailgate Open |
| COOLING FAN2 | 60A | Cooling Fan Controller |
| BLOWER | 50A | Blower Relay |
| E-CVVT | 50A | E-CVVT Relay (Theta Engine) |
| AUX BATT | 50A | 20AH Lithium Type Battery |
| B+4 | 50A | PDC Junction Block (Fuse - MULTIMEDIA, MEMORY1, MEMORY2, CCU, BDC1, BRAKE SWITCH, SUNROOF2, 4WD, DOOR LOCK, TAILGATE OPEN) |
| REAR HEATED | 40A | Rear Heated Relay |
| ABS1/EPB1 | 40A | ESP (Electronic Stability Program Control Module) |
| B+1 | 50A | PDC Junction Block (IPS1/IPS2/IPS3/IPS4/IPS5/IPS6/IPS7) |
| B+5 | 60A | PCB Block (Fuse - A/C1,HORN,IG1,IG2, Relay-MAIN, WIPER) |
| E-SHIFTER1 | 30A | SCU (System Control Unit) |
| HEAD LAMP RH | 20A | Front Head Lamp RH |
| EOP | 30A | Electronic Oil Pump |
| HEAD LAMP LH | 20A | Front Head Lamp LH |
| FUEL PUMP | 20A | Fuel Pump Relay |
| TRAILER1 | 50A | Trailer CTM2 type (w/ e-brake) |
| ABS2/EPB2 | 15A | ESP (Electronic Stability Program Control Module) |
| HEATED MIRROR | 60A | ESP (Electronic Stability Program Control Module) |
| IG2 | 40A | IG2 Relay |
| IG1 | 40A | IG1 Relay, ACC Relay |
| FR WIPER2 | 7.5A | Front Wiper (Low) Relay, BDC (Body Domain Controller) |
| SENSOR1 | 20A | Ignition Coil #1~#4 |
| ECU3 | 10A | Power train Control Module |
| SENSOR5 | 10A | Fuel Pump Relay, Oil Level Sensor |
| TCU2 | 10A | Not Used |
| TCU3 | 10A | Not Used |
| SENSOR3 | 20A | Not Used |
| ECU1 | 20A | Power train Control Module |
| SENSOR2 | 15A | Oxygen Sensor (UP/DOWN) |
| FR WIPER1 | 30A | Wiper Main Relay, Front Wiper (Low) Relay |
| RR WIPER | 15A | Wiper Main Relay, ICU Junction Block (Rear Wiper Relay) |
| HORN | 15A | Horn Relay |
| A/C1 | 10A | Air Conditioner Comp Relay |
| FCA | 10A | Front Radar |
| SENSOR4 | 10A | Oil Control Valve #2 (Exhaust), Purge Control Solenoid Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Cooling Fan Controller, Air Conditioner Comp Relay |
| SENSOR6 | 15A | Injector #1 ~ #4 |
| ECU2 | 15A | Power train Control Module |
| TCU1 | 15A | Power train Control Module |
| ABS3/EPB3 | 7.5A | ESP (Electronic Stability Program (Electronic Stability Program) Control Module |
| POWER OUTLET2 | 20A | Front Power Outlet |
| POWER OUTLET1 | 20A | Luggage Power Outlet |
| Battery fuse panel: | ||
| MAIN | 150A | MAIN |
