Kia Sorento 2024 Fuse Box Info

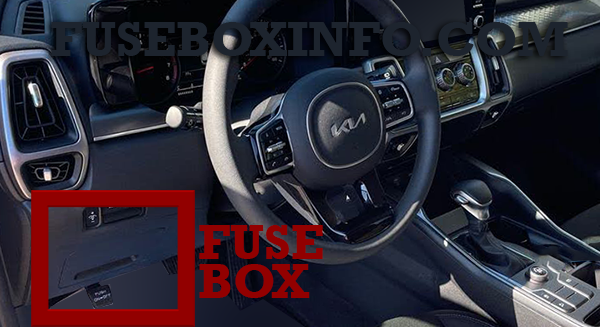

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay Name | Rating | Functions |
| AMP | 25A | AMP (Amplifier) |
| LDC | 30A | Low DC (Direct Current)-DC (Direct Current) Converter |
|
P/SEAT |
30A | Driver Power Seat Switch, IMS (Integrated memory system) Control Module |
| P/WINDOW (LH) |
25A | Rear Power Window Switch LH, Rear Safety Power Window Module LH, Driver Safety Power Window Module, Driver Power Window Switch |
| P/SEAT (PASS) |
30A | Passenger Power Seat Switch |
| S/HEATER (FRT) |
20A | SEAT_AST Air Ventilation Seat Warmer, SEAT_AST Seat Warmer, Data Link Connector |
| S/HEATER (REAR LH) |
15A | 2nd Seat Warmer LH Control Module |
| 2nd ROW SEAT FOLDING (RH) |
20A | 2nd Seat RH Folding Actuator |
| P/WINFOW (RH) |
25A | Rear Power Window Switch RH, Rear Safety Power Window Module RH, Passenger Power Window Switch, Passenger Safety Power Window Module |
| TAILGATE OPEN |
15A | Tail Gate Relay |
| 2nd ROW SEAT FOLDING (LH) |
20A | 2nd Seat LH Folding Actuator |
| DOOR LOCK |
20A | Door Lock/Unlock Relay, Dead Lock Relay |
| 2 REAR A/C |
10A | Rear A/C Control Module |
| 1 MULTI MEDIA |
25A | Low DC (Direct Current)-DC (Direct Current) Converter |
| S/HEATER (REAR RH) |
15A | 2nd Seat Warmer RH Control Module |
| MEMORY | 10A | Head-Up Display, Rear A/C Control Module, Front A/C Control Module, Front A/C Control Panel, Low DC (Direct Current) -DC (Direct Current) Converter, Surround View Monitor Unit |
| START | 10A | Ignition Switch |
| 1 USB CHARGER |
10A | Luggage USB Charge Connector LH/RH |
| 2 USB CHARGER |
15A | Rear Console USB Charge Connector LH/RH, USB_- SEAT_DRV, USB_SEAT_AST |
| 3 MODULE | 7.5A | IBU (Integrated Body Control Unit), ADAS Unit, Front View Camera, Crash Pad Switch, Surround View Monitor Unit, 4WD ECU, Front Console Switch, Rear Corner Radar LH/RH |
| 1 AIR BAG | 15A | SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Senso |
| WASHER | 15A | Multifunction Switch |
| 1 MODULE | 10A | ADAS Unit, Surround View Monitor Unit, IBU (Integrated Body Control Unit), Front USB Charge Connector LH/RH, Low DC (Direct Current) - DC (Direct Current) Converter |
| 9 MODULE | 10A | Key Solenoid, Driver/Passenger Smart Key Outside Handle, Driver Door Area Unit, Driver/Passenger Power Outside Mirror, Power Tailgate Unit, ROA, Driver Air Ventilation Seat Control Module, Driver Seat Warmer Control Module |
| 1 IBU | 7.5A | IBU (Integrated Body Control Unit) |
| 2 MODULE | 7.5A | Driver Door Area Unit, ATM (Automatic Transmission) Shift Lever |
| 1 REAR A/C |
15A | Rear A/C Blower Motor, ICU Junction Block (Fuse - Rear A/C Control Module) |
| A/BAG IND |
7.5A | Instrument Cluster, Overhead Console |
| 8 MODULE | 7.5A | ADAS Unit, Rear Console AC Inverter Outlet, AC Inverter, 2nd Seat Warmer LH/RH Control Module, Rear A/C Control Module, SEAT_AST Air Ventilation/SEAT_AST Seat Warmer Control Module |
| 2 IBU | 15A | IBU (Integrated Body Control Unit), RAIN SNSR |
| 10 MODULE | 10A | Stop Lamp Switch |
| 5 MODULE | 10A | AMP (Amplifier), Front Wireless Charger Unit, Low DC (Direct Current) - DC (Direct Current) Converter |
| A/C | 7.5A | Front A/C Control Module, Front A/C Control Panel, E/R Junction Block (PTC (Positive Temperature Coefficient) Heater #1 Relay, Blower Relay) |
| 2 AIR BEG | 10A | SRS (Supplemental Restraint System) Control Module |
| CLUSTER | 7.5A | Instrument Cluster, Head-Up Display |
| 4 MODULE | 10A | Audio, Data Link Connector, Front A/C Control Panel, Front A/C Control Module, Crash Pad Switch, Electro Chromic Mirror, 1st Air Ventilation Seat Control Module, 2nd Seat Warmer LH/RH Control Module |
| 7 MODULE | 7.5A | IBU (Integrated Body Control Unit) |
| 2 MULTI MEDIA |
10A | Surround View Monitor Unit, Instrument Cluster, ADAS Unit, Front A/C Control Panel, Front A/C Control Module, Front Wireless Charger Unit, Head-Up Display |
| BRAKE SWITCH |
7.5A | IBU (Integrated Body Control Unit), Stop Lamp Switch |
| MDPS | 7.5A | MDPS (Motor Driven Power Steering) Unit * MDPS is the same as EPS (Electric Power Steering). |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| 1 COOLING FAN |
80A | Cooling Fan Motor |
| 3 TCU | 60A | TCM (Transmission Control Module) |
| 1 PTC HEATER |
50A | E/R Junction Block (PTC (Positive Temperature Coefficient) Heater #1 Relay) |
| 2 B+ | 50A | ICU Junction Block (IPS) |
| 1 E-CVVT | 50A | E/R Junction Block (E-CVVT (Electric - Continuously variable valve timing) Relay) |
| 2 EOP | 40A | Electronic Oil Pump |
| 1 ABS | 40A | ESC (Electronic Stability Control) Control Module |
| 2 ABS | 30A | ESC (Electronic Stability Control) Control Module |
| MDPS | 100A | MDPS (Motor Driven Power Steering) Unit * MDPS is the same as EPS (Electric Power Steering). |
| 2 COOLING FAN |
60A | Cooling Fan Motor |
| 6 B+ | 60A | PCB Junction Block (Start Relay, IG2 Relay, IG1 Relay, ACC Relay) |
| 1 EOP | 60A | Electronic Oil Pump |
| 5 B+ | 50A | ICU Junction Block (Fuse - P/SEAT (DRV), P/WINDOW (LH), P/SEAT (PASS), S/HEATER (REAR LH), 2nd ROW SEAT FOLDING (RH)) |
| REAR HEATED |
40A | E/R Junction Block (Rear Heated Relay) |
| POWER TAILGATE |
40A | Power Tailgate Unit |
| SUNROOF | 40A | Sunroof Motor (Glass) |
| 3 ABS | 60A | ESC (Electronic Stability Control) Control Module |
| 3 B+ | 50A | ICU Junction Block (IPS) |
| 1 VACUUM PUMP |
20A | [Smartstream 2.5 T-GDI] E/R Junction Block (Vacuum Pump Relay) |
| FUEL PUMP |
20A | E/R Junction Block (Fuel Pump Relay) |
| CHILD LOCK |
15A | PCB Junction Block (Child Lock/Unlock Relay) |
| BLOWER | 50A | E/R Junction Block (Blower Relay) |
| 4 B+ | 50A | ICU Junction Block (Fuse - AMP, LDC, S/HEATER (REAR RH), P/WINDOW (RH), 2nd ROW SEAT FOLDING (LH)) |
| TRAILER | 30A | Trailer Module |
| INVERTER | 30A | AC Inverter |
| 1 B+ | 40A | ICU Junction Block (Long Term Load Latch Relay, Fuse - TAILGATE OPEN, DOOR LOCK, S/HEATER (REAR RH), START, 9 MODULE, 2IBU, 2A/BAG, BRAKE SWITCH) |
| 4WD | 20A | 4WD ECU |
| 1 TCU | 15A | PCM (Power train Control Module) |
| AMS | 10A | Battery Sensor |
| 2 VACUUM PUMP |
10A | ESC (Electronic Stability Control) Control Module |
| 3 E-CVVT | 20A | PCM (Power train Control Module) |
| HEATED MIRROR |
10A | Front A/C Control Panel, Front A/C Control Module, Driver/Passenger Power Outside Mirror |
| 1 A/C | 10A | Front A/C Control Module |
| 2 E-CVVT | 20A | PCM (Power train Control Module) |
| IG2 | 40A | E/R Junction Block (Start Relay), PCB Junction Block (IG2 Relay) |
| IG1 | 40A | PCB Junction Block (IG1 Relay, ACC Relay) |
| 2 FRT WIPER |
7.5A | IBU (Integrated Body Control Unit) |
| 1 SENSOR | 20A | Ignition Coil #1/#2/#3/#4 |
| 7 SENSOR | 10A | Electronic Oil Pump |
| 2 ECU | 10A | PCM (Power train Control Module) |
| 5 SENSOR | 10A | E/R Junction Block (Fuel Pump Relay) |
| 3 SENSOR | 20A | PCM (Power train Control Module) |
| 2 SENSOR | 15A | Oxygen Sensor (Up/Down) |
| 1 FRT WIPER |
30A | Front Wiper Motor, Front Wiper (Low) Relay |
| RR WIPER |
15A | Rear Wiper Relay, Rear Wiper Motor |
| HORN | 15A | Horn Relay |
| 2 A/C | 10A | A/Con Relay |
| B/A HORN |
15A | B/A Horn Relay |
| 2 TCU | 10A | TCM (Transmission Control Module) |
| 4 SENSOR | 10A | Purge Control Solenoid Valve, PCM (Power train Control Module), Cooling Fan Motor, Oil Control Valve (Exhaust), Variable Oil Pump Solenoid Valve, Canister Close Valve, A/Con Relay, [Smartstream 2.5 GDi] Variable Intake Solenoid Valve [Smartstream 2.5 T-GDi] RCV (Recirculation Valve Control) Control Solenoid Valve |
| 6 SENSOR | 15A | Injector #1/#2/#3/#4 |
| 1 ECU | 15A | PCM (Power train Control Module) |
| 4 ABS | 7.5A | ESC (Electronic Stability Control) Control Module |
| 2 P/OUTLET | 20A | Rear Console Power Outlet |
| 1 P/OUTLET | 20A | Luggage Power Outlet |
| VACUUM PUMP |
- | [Smartstream 2.5 T-GDI] Vacuum Pump Relay |
| START | - | Start Relay |
| FUEL PUMP |
- | Fuel Pump Relay |
| E-CVVT | - | E-CVVT (Electric - Continuously variable valve timing) Relay |
| 1 PTC HEATER |
- | PTC (Positive Temperature Coefficient) Heater #1 Relay |
| B/ALARM HORN |
- | B/Alarm Horn Relay |
| BLOWER | - | Blower Relay |
| REAR HEATED |
- | Rear Heated Relay |
