Kia Borrego 2011 Fuse Box Info

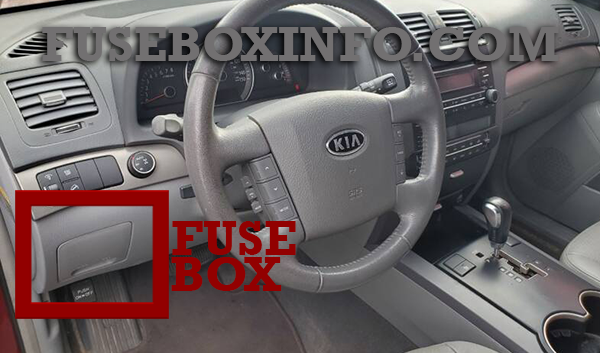

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

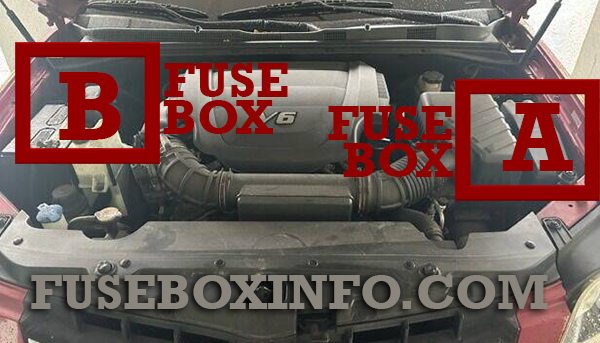

Engine compartment fuse box location:
Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay Name | Rating | Functions |
| AUDIO | 15A | Audio, Rear Monitor, RSE Control Box, DVD Player Can |
| MEMORY | 7.5A | Front A/C Control Module, Rear A/C Control Module, Instrument Cluster (IND.), RF Receiver, FAM, RAM, Driver Door Module, Assistant Door Module, Tilt & Telescopic Module, IMS Control Module |
| IG2-1 | 7.5A | Front A/C Control Module, Incar Temperature Sensor, PDM, Multifunction Switch (Wiper/Washer), Driver/Passenger Seat Warmer Module, Front Blower Relay, Electro Chromic Mirror, Rear Blower Relay, AC Inverter Switch, Trailer Relay, C/FAN HI/LOW Relay |
| IG2-2 | 7.5A | Rear A/C Control Module, Driver Door Module, FAM, Assistant Door Module, IMS Control Module, Tilt & Telescopic Module |
| SMART KEY | 7.5A | Start Stop Button Switch, PDM,Smart Key Control Module, Fob Holder |
| ROOM | 7.5A | Electronic Chrome Mirror, Map Lamp, Vanity Lamp Switch LH/RH, Front/Rear A/C Control Module, Center Room Lamp, Rear Room Lamp |
| KEY LOCK | 7.5A | Sport Mode Switch, Ignition Lock Switch |
| ILLUMI | 7.5A | IPM |
| RR S/WARMER | 20A | Rear Seat Warmer Relay |
| FRT S/WARMER | 20A | Driver Seat Warmer Module, Passenger Seat Warmer Module |
| SUNROOF | 25A | Sunroof Module |
| TPMS | 7.5A | Tire Pressure Monitoring Module, Data Link Connector, Multipurpose Check Connector |
| PEDAL | 15A | Adjustable Pedal Relay |
| F/PWR OUTLET | 15A | Front Power Outlet |
| S/TILT & TELE | 20A | Tilt & Telescopic Module |
| PASS P/SEAT | 20A | Passenger Power Seat Switch |
| DRIVER P/SEAT | 30A | Driver Power Seat Switch, Lumbar Support Switch, IMS Control Module |
| ACC | 7.5A | Audio, Front A/C Control Module, Rear monitor, RSE Control Box, Smart Key Control Module |
| START | 7.5A | Burglar Alarm Relay, Start Relay |
| AIR BAG IND. | 7.5A | Instrument Cluster (Air Bag IND.) |
| ABS | 7.5A | ABS Control Module, ESC Control Module, DBC Relay, Steering Angle Sensor, Crash Pad Switch LH, Smart Key Control Module, Rear Parking Assist Control Module |
| IGN 1 | 7.5A | Rheostat, Instrument Cluster (MICOM), Multifunction Switch (Cruise Remocon), Generator, Rear Parking Assist Buzzer, Rear Parking Assist Switch, Audio, PODS Module, Tire Pressure Monitoring Module |
| ENG | 7.5A | Multipurpose Check Connector, ECM, TCM, Front Wiper Motor, 4WD ECM, Stop Lamp Switch, Free Running Differential Air Pump, Generator (G8BA) |
| AIR BAG | 15A | SRS Control Module, Telltale Lamp |
| DDM | 30A | Driver Door Module, Driver Safety Power Window Motor |
| ADM | 30A | Assistant Door Module, Passenger Safety Power Window Motor |
Engine compartment fuse box A (Main fuse box):
| Fuse/Relay Name | Rating | Functions |
| FRT/RR WASHER | 10A | Front/Rear Washer Motor Relay, Washer Motor |
| TRAILER 5 | 15A | Tail Lamp Converter (Turn/Stop) |
| STOP LAMP | 20A | Stop Lamp Switch, DBC Relay |
| KEY SW 1 | 25A | Ignition Switch, PDM Relay Box (IG1 Relay , ACC Relay) |
| STOP SIGNAL | 7.5A | ABS Control Module, ESC Control Module, ECM, Smart Key Control Module |
| A/C COMP | 7.5A | A/C Comp Relay |
| FRT DEICER | 15A | Front Deicer Relay |
| HORN | 15A | Horn Relay |
| ECU 1 | 10A | ECM, Mass Air Flow Sensor, Immobilizer Module, A/C Comp Relay |
| O2 DN | 10A | Oxygen Sensor #3,#4 |
| ECU 2 | 15A | Oil Control Valve, ECM, Variable Intake Manifold Valve, Purge Control Solenoid Valve, Canister Close Valve |
| O2 UP | 10A | Oxygen Sensor #1,#2 |
| IGN COIL | 20A | Ignition Coil #1~#8, Condenser #1,#2 |
| INJECTOR | 15A | ECM, Injector #1~#8, Camshaft Position Sensor #1 ~ #3 (G8BA) |
| P/TRAIN | 7.5A | ECM, Main Relay, Relay Box(Burglar Horn Relay), Generator (G8BA) |
| FUEL PUMP | 15A | Fuel Pump Relay, Fuel Sender & Fuel Pump Motor |
| ATM | 15A | TCM |
| ABS 2 | 40A | ABS Control Module |
| ABS 1 | 40A | ABS Control Module |
| PDM | 20A | PDM |
| FRT WIPER | 30A | Front Wiper ON Relay, Front Wiper HI/LO Relay |
| KEY SW 2 | 30A | Start Relay #1, Ignition Switch, PDM Relay Box (IG2 Relay) |
| RAM 1 | 50A | RAM(CTR P/OUT FUSE 15A, RR P/OUT FUSE 15A, FUEL DR FUSE 15A, RR P/WIN-LH FUSE 20A, RR P/WIN-RH FUSE 20A, LUGGAGE FUSE 7.5A) |
| RAM 2 | 50A | RAM(RR DEFOG FUSE 25A, T/G POWER LATCH FUSIBLE LINK 30A, DOOR LOCK FUSE 15A, RR WIPER FUSE 15A) |
| RAM 3 | 50A | RAM (AMP FUSIBLE LIMK 30A TRAILER 2 FUSIBLE LINK 30A) |
| IPM 1 | 50A | IPM (ILLUMI FUSE 7.5A, DDM FUSIBLE LINK 30A, FRT S/WARMER FUSE 20A, OBD-II FUSE 7.5A, SUNROOF FUSE 25A, KEY LOCK FUSE 7.5A) |
| IPM 2 | 50A | IPM (ADM FUSIBLE LINK 30A, F/PWR OUTLET FUSE 15A, PEDAL FUSE 15A, S/TILT & TELE FUSE 20A) |
| IPM 3 | 50A | IPM (MEMORY FUSE 7.5A, DRIVER P/SEAT FUSE 30A, PASS P/SEAT FUSE 20A, RR S/WARMER FUSE 20A, ROOM FUSE 7.5A, AUDIO FUSE 15A) |
| 4WD | 30A | 4WD ECM |
| AC 110V | 30A | AC inverter module |
Engine compartment fuse box B (Sub fuse box):
| Fuse/Relay Name | Rating | Functions |
| C/FAN LOW | 30A | C/Fan Low Relay |
| E/BRAKE | 30A | Trailer Electric Brake |
| FRONT BLOWER | 40A | Front Blower Relay |
| REAR BLOWER | 30A | Rear Blower Relay |
| C/FAN HI | 60A | C/Fan Hi Relay |
| TRAILER 1 | 30A | Trailer Relay |
Luggage compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| RR DEFOG | 25A | RR Defog Relay, Rear Defogger (+) |
| T/G POWER LATCH | 30A | Tail Gate Control Module |
| RR WIPER | 15A | Rear Wiper Motor Relay (+), Rear Wiper Motor |
| DOOR LOCK | 15A | Rear Door Lock Actuator LH/RH, Rear Door Lock/Unlock Relay |
| CTR P/OUT | 15A | Console Power Outlet |
| RR P/OUT | 15A | Rear Power Outlet |
| FUEL DR | 15A | Fuel Door Relay, Fuel Filler Door Actuator |
| TRAILER3 | 15A | Tail Lamp Converter (Back up) |
| RR P/WIN-LH | 20A | Rear Power Window Relay LH(UP/DH), Rear Power Window Motor LH |
| RR P/WIN-RH | 20A | Rear Power Window Relay RH(UP/DH), Rear Power Window Motor RH(DN) |
| LUGGAGE | 7.5A | Luggage Lamp |
| AMP | 30A | AMP |
| TRAILER2 | 30A | Tail Lamp Converter (Tail) |
