Kia Rio 2016 Fuse Box Info

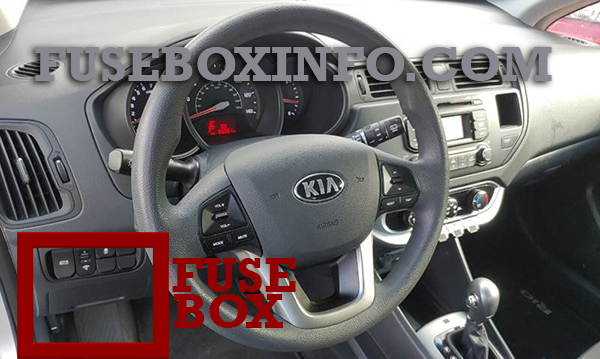

Passenger fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

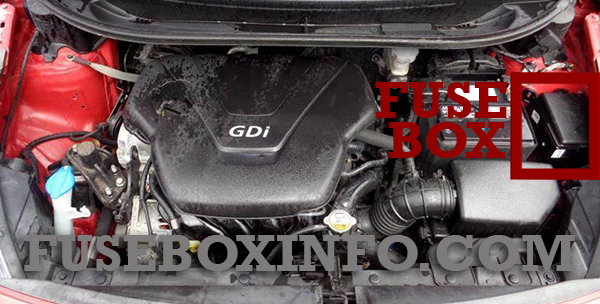

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| POWER OUTLET | 15A | Power Outlet |
| C/LIGHTER | 20A | Cigarette Lighter |
| ACC | 10A | Front Map Lamp, Power Outside Mirror Switch, BCM, Low DC-DC Convertor, Smart Key Control Module, Audio, A/V & Navigation Head Unit, Digital Clock |
| A/BAG IND | 10A | Instrument Cluster |
| A/BAG | 10A | SBR PAB Indicator, SRS Control Module Passenger Weight Classification Sensor |
| MODULE 2 | 10A | BCM |
| MDPS | 10A | EPS Control Module |
| WIPER RR | 15A | Multifunction Switch, Rear Wiper Relay, Rear Wiper Motor |
| HTD STRG | 15A | Steering Wheel Heater |
| FOG LAMP RR | 10A | - |
| FOG LAMP FRT | 15A | Front Fog Lamp Relay |
| MODULE 1 | 10A | ATM Shift Lever Switch, Door Warning Switch |
| STOP LAMP | 15A | Data Link Connector, Smart Key Control Module, Stop Lamp Switch Stop Lamp Relay, PCB Fuse & Relay Box (HAC Relay) |
| CLUSTER | 10A | Audio, BCM, ATM Shift Lever ILL., Crash Pad Switch Instrument Cluster, Tire Pressure Monitoring Module |
| IG1 1 | 10A | Multipurpose Check Connector, Driver CCS Seat Warmer Module Passenger Seat Warmer Module With ISG : Crash Pad Switch, Low DC-DC Convertor |
| ABS | 10A | Crash Pad Switch, ESC Module PCB Fuse & Relay Box (HAC Relay) |
| B/UP LAMP | 10A | Back-Up Lamp Switch |
| IG1 2 | 10A | Vehicle Speed Sensor, Stop Lamp Switch, Inverter A/C Control Module |
| HAZARD | 15A | Hazard Switch, BCM |
| PDM 1 | 25A | Smart Key Control Module |
| SUNROOF | 15A | Sunroof Motor |
| PDM 2 | 10A | Immobilizer Module, Start/Stop Button Switch, Smart Key Control Module |
| ECU | 15A | Smart Key Control Module, Immobilizer Module, ECM/PCM, Transaxle Range Switch |
| IG2 | 10A | BCM, Smart Key Control Module, Driver CCS Seat Warmer Module Cluster Ionizer, Rain Sensor, A/C Control Module, Sunroof Motor PCB Fuse & Relay Box (Blower Relay, Head Lamp (HI) Relay, Fuel Pump #1 Relay) |
| WIPER FRT | 25A | Multifunction Switch, Front Wiper Motor PCB Fuse & Relay Box (Rain Sensor Relay, Front Wiper Relay) |
| DOOR LOCK | 20A | Door Lock/Unlock Relay, Tail Gate Unlock Relay, Two Turn Unlock Relay |
| SAFETY POWER WINDOW | 25A | Driver Safety Power Window Module |
| S/HEATER | 15A | Seat Warmer Switch, Driver CCS Seat Warmer Module, Passenger Seat Warmer Module |
| FOLD'G MIRR | 10A | Power Outside Mirror Switch |
| ROOM LP | 10A | BCM, Door Warning Switch, Tire Pressure Monitoring Module Instrument Cluster, Digital Clock, A/C Control Module Luggage Lamp |
| AUDIO | 20A | With ISG : Low DC-DC Convertor W/O ISG : Audio, A/V & Navigation Head Unit |
| TAIL LAMPP LH | 10A | Head Lamp LH, License Lamp Rear Combination Lamp (IN/OUT) LH |
| TAIL LAMPP RH | 10A | Head Lamp RH, License Lamp, ILL. (+), Rear Combination Lamp (IN/OUT) RH |
| START | 10A | With Burglar Alarm : Burglar Alarm Relay W/O Burglar Alarm : Transaxle Range Switch (A/T), Smart Key Control Module (M/T), Ignition Lock Switch (M/T), ECM (M/T), PCB Fuse & Relay Box (Start Relay) (M/T) |
| P/WDW LH | 25A | Power Window Main Switch, Rear Power Window Switch LH Driver Safety Power Window Module |
| P/WDW RH | 25A | Power Window Main Switch, Rear Power Window Switch RH Passenger Power Window Switch |
| HTD MIRR | 10A | ECM/PCM, A/C Control Module Driver/Passenger Power Outside Mirror |
| A/CON | 10A | A/C Control Module |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | EPS Control Module |
| ALT | 125A | Alternator |
| B+1 | 50A | I/P Junction Box (Power Connector Fuse : ROOM LP 10A / AUDIO 20A, Fuse : FOG LP FRT 15A / MODULE 1 10A / STOP LP 15A, Tail Lamp Relay) |
| INVERTER | 40A | Inverter |
| B+2 | 50A | I/P Junction Box (Fuse : HAZARD 15A / PDM 1 25A / PDM 2 10A / SUNROOF 15A / DR LOCK 20A / SAFETY POWER WINDOW 25A / S/HEATER 2 15A, FOLD'G MIRR 10A / Power Window Relay) |
| IG1 | 40A | With Smart Key - PDM Relay Box (ESCL (ACC) Relay, ESCL (IG1) Relay) W/O Smart Key - Ignition Switch |
| ABS1 | 40A | ESC Module, Multipurpose Check Connector |
| ABS2 | 40A | ESC Module |
| RR HTD | 40A | I/P Junction Box (Rear Defogger Relay) |
| ECU5 | 10A | PCM |
| H/LP HI IND | 10A | Instrument Cluster |
| IG2 | 40A | PCB Fuse & Relay Box (Start Relay), W/O Smart Key - Ignition Switch, With Smart Key - PDM Relay Box (ESCL (IG2) Relay) |
| ECU1 | 30A | PCB Fuse & Relay Box (Engine Control Relay, ECU2 10A) |
| ECU3 | 10A | Not Used |
| BLOWER | 40A | PCB Fuse & Relay Box (Blower Relay) |
| C/FAN | 40A | PCB Fuse & Relay Box (Cooling Fan (Low) Relay, Cooling Fan (Hi) Relay) |
| F/PUMP | 20A | PCB Fuse & Relay Box (Fuel Pump #1 Relay) |
| H/LAMP HI | 20A | PCB Fuse & Relay Box (Head Lamp (HI) Relay) |
| H/LAMP | 20A | PCB Fuse & Relay Box (Head Lamp (LO) Relay) |
| HORN | 10A | PCB Fuse & Relay Box (Horn Relay, Burglar Alarm Horn Relay) |
| ECU2 | 10A | M/T - ECM, A/T - E/R Junction Box (ECU_VM 10A) |
| B/UP LAMP | 10A | A/T - PCM, Transaxle Range Switch |
| WIPER | 10A | ECM/PCM, Rain Sensor |
| ECU4 | 20A | ECM/PCM |
| INJECTOR | 15A | ECM/PCM, PCB Fuse & Relay Box (Fuel Pump #1 Relay) |
| H/LAMP LH | 10A | Head Lamp LH |
| SENSOR | 10A | Purge Control Solenoid Valve, Oil Control Valve #1/#2, Oxygen Sensor(Up/Down), Variable Intake Solenoid Valve, Canister Close Valve |
| IGN COIL | 10A | CONDENSOR, IGNITION COIL #1/#2/#3/#4 |
| H/LAMP RH | 10A | Head Lamp RH |
