Jaguar E-Pace 2019 Fuse Box Info
Fuse box location:

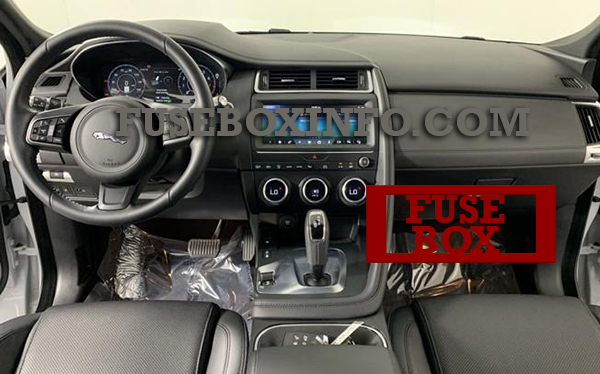

The fuse panel is located on the right side below the glove box.
Engine compartment fuse box:
Luggage compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Front passenger's seat |
| 2 | 30A | Driver's seat |
| 3 | 25A | Passenger's door module |
| 4 | 25A | Driver's door module |
| 5 | 5A | Keyless entry |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | 5A | Tire Pressure Monitoring System (TPMS) |
| 10 | 5A | Battery back-up sounder |
| 11 | 5A | Instrument panel |
| 12 | 20A | Fuel system |
| 13 | 5A | Rear seats |
| 14 | 5A | Vehicle immobiliser |
| 15 | 5A | Steering wheel |
| 16 | 20A | Keyless entry |
| 17 | 5A | Brake pedal switch |
| 18 | 20A | Front blind |
| 19 | 20A | Front passenger's heated or climate seat |
| 20 | 5A | Mirror, Camera |
| 21 | 5A | Blind spot monitor |
| 22 | 5A | Camera |
| 23 | - | - |
| 24 | - | - |
| 25 | 10A | Instrument panel |
| 26 | 20A | Cigar lighter |
| 27 | - | - |
| 28 | 10A | Head-Up Display (HUD) and cooling fan |
| 29 | 5A | Adaptive cruise control |
| 30 | 20A | Driver's heated and climate seat control |
| 31 | 5A | Powered tailgate |
| 32 | 5A | Driver door module |
| 33 | 10A | Audio amplifier |
| 34 | 15A | Infotainment system |
| 35 | 15A | Infotainment system |
| 36 | 10A | Audio video output |
| 37 | 15A | Seat switches and memory |
| 38 | 20A | Cubby box auxiliary power socket |
| 39 | - | - |
| 40 | - | - |
| 41 | 10A | Heated steering wheel |
| 42 | 5A | Steering wheel |
| 43 | 20A | Heating and ventilation system |
| 44 | - | - |
| 45 | 40A | Body control module |
| 46 | - | - |
| 47 | 40A | Body control module |
| 48 | - | - |
| 49 | 40A | Infotainment system amplifier |
| 50 | 20A | Amplifier module |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Engine control module |
| 2 | 5A | Electrical power management |
| 3 | 80A | Electric Power Assisted Steering System (EPAS), Engine management system |
| 4 | 60A | Glow plugs (diesel only) |
| 5 | 100A | Engine cooling |
| 6 | 15A | Engine management system |
| 7 | 15A | Engine management system |
| 8 | 15A | Engine management system |
| 9 |
10A 10A |
Engine management system Engine management system |
| 10 | 5A | Fuel pump |
| 11 | 10A | Engine management system |
| 12 | 10A | Engine management system |
| 13 | - | - |
| 14 |
10A 10A |
Engine cooling Engine management system |
| 15 | 40A | Engine management system |
| 16 | 100A | Auxiliary heater |
| 17 | 60A | Passenger compartment fuse box |
| 18 | 60A | Passenger compartment fuse box |
| 19 | 60A | Luggage compartment fuse box |
| 20 | 60A | Luggage compartment fuse box |
| 21 | 60A | Electrical power management |
| 22 | 30A | Front windscreen wipers |
| 23 | 40A | Passenger compartment fuse box |
| 24 | 40A | Starter motor (diesel automatic only) |
| 25 | 40A | Anti-lock Braking System (ABS) |
| 26 | 40A | Anti-lock Braking System (ABS) |
| 27 | 40A | Passenger compartment fuse box |
| 28 | 40A | Heater blower motor |
| 29 | 30A | Electric trailer brake (Australia only) |
| 30 | 15A | Spare |
| 31 | 15A | Horns |
| 32 | 10A | Spare |
| 33 | 5A | Horn, Heated windscreen, Fuel pump |
| 34 | 40A | Left-side heated windscreen |
| 35 | 40A | Right-side heated windscreen |
| 36 | 5A | Engine management system, Air Conditioning (A/C) |
| 37 | 20A | Fuel pump |
| 38 | 15A | Transmission control module |
| 39 | 10A | Front fog lights |
| 40 | 20A | Right-side headlight |
| 41 | 20A | Left-side headlight |
| 42 | - | - |
| 43 | - | - |
| 44 | - | - |
| 45 | - | - |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Rear wiper |
| 2 | 20A | Deployable sidesteps |
| 3 | 5A | Telematics |
| 4 | 5A | Fuel Burning Heater (FBH) |
| 5 | 25A | Fuel pump |
| 6 | 30A | Power tailgat |
| 7 | 5A | Spare |
| 8 | - | - |
| 9 | 5A | Battery spare |
| 10 | - | - |
| 11 | 25A | Right-side rear door module |
| 12 | 20A | Trailer |
| 13 | 5A | All Wheel Drive (AWD) |
| 14 | 25A | Left-side rear door module |
| 15 | - | - |
| 16 | - | - |
| 17 | - | - |
| 18 | - | - |
| 19 | 30A | Driveline |
| 20 | - | - |
| 21 | 20A | Accessory socket |
| 22 | - | - |
| 23 | - | - |
| 24 | 5A | Wade sensing |
| 25 | - | - |
| 26 | 20A | Rear heated seat module |
| 27 | 5A | Windows |
| 28 | 5A | Vehicle diagnostics |
| 29 | - | - |
| 30 | - | - |
| 31 | - | - |
| 32 | - | - |
| 33 | 20A | Trailer socket |
| 34 | 10A | Chassis control module |
| 35 | 30A | Driveline |
| 36 | 20A | Fuel pump |
| 37 | - | - |
| 38 | 5A | Fan spare |
| 39 | 20A | Rear control spare |
| 40 | 10A | USB charger |
| 41 | 20A | Right-side heated rear seat |
| 42 | 20A | Rear console accessory socket |
| 43 | - | - |
| 44 | 30A | Heated rear screen |
| 45 | - | - |
| 46 | - | - |
| 47 | 30A | Driveline |
| 48 | 30A | Deployable towbar |
| 49 | - | - |
| 50 | 25A | Heater |
