Jaguar E-Pace 2022 Fuse Box Info
Passenger compartment fuse box location:

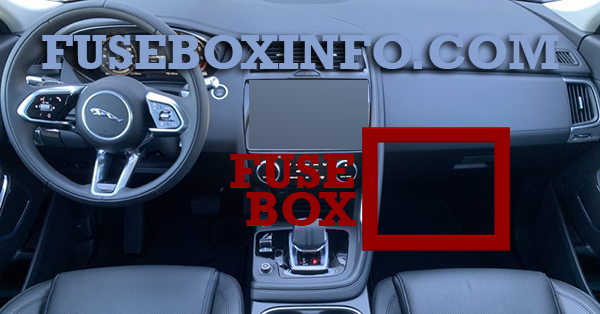

The fuse panel is located on the right side below the glove box.
Engine compartment fuse box location:
Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Front passenger's seat |
| 2 | 30A | Driver's seat |
| 3 | 25A | Passenger's door module |
| 4 | 25A | Driver's door module |
| 5 | 5A | Keyless entry |
| 6 | - | - |
| 7 | - | - |
| 8 | 5A | PHEV only: PHEV junction box |
| 9 | 5A | RF receiver |
| 10 | 5A | Battery back-up sounder |
| 11 | 5A | Instrument panel |
| 12 | 20A | Fuel burner heater system |
| 13 | 5A | Diagnostic socket |
| 14 | 5A | Vehicle immobiliser |
| 15 | 5A | Steering wheel |
| 16 | 20A | Keyless entry |
| 17 | - | - |
| 18 | 20A | Front blind |
| 19 | 20A | Front passenger's heated and climate seat |
| 20 | 5A | Mirror, Camera |
| 21 | 5A | Blind spot monitor |
| 22 | - | - |
| 23 | - | - |
| 24 | 10A | Head-Up Display (HUD) module |
| 25 | 10A | Instrument panel |
| 26 | 20A | Auxiliary power socket |
| 27 | - | - |
| 28 | - | - |
| 29 | 5A | Adaptive cruise control |
| 30 | 20A | Driver's heated and climate seat control |
| 31 | 5A | Hill descent control, Ionizer |
| 32 | 5A | Occupant monitoring |
| 33 | 10A | Accessory socket console/USB console |
| 34 | - | - |
| 35 | 15A | Infotainment system |
| 36 | 10A | Audio video output |
| 37 | 15A | Seat switches and memory |
| 38 | - | - |
| 39 | 5A | Electrochromic mirror |
| 40 | - | - |
| 41 | 10A | Heated steering wheel |
| 42 | - | - |
| 43 | 20A | Heating and ventilation system |
| 44 | - | - |
| 45 | 40A | Body control module |
| 46 | - | - |
| 47 | 40A | Body control module |
| 48 | - | - |
| 49 | 40A | Infotainment system amplifier |
| 50 | - | - |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | 15A | Water charge air cooler |
| 3 | 10A | Engine management system |
| 4 | - | - |
| 5 | 15A | Engine management system |
| 6 | 15A | Engine management system |
| 7 | - | - |
| 8 | 10A | Plug-in Hybrid Electric Vehicles only: PHEV control/PHEV heater pump |
| 9 | 15A | Intercooler water pump |
| 10 | 15A | PHEV only: inverter |
| 11 | - | - |
| 12 | 5A | 48v system |
| 13 | - | - |
| 14 | - | - |
| 15 | 15A | Engine management system |
| 16 | - | - |
| 17 | 15A | Fuel system, Engine management system, Exhaust sensors |
| 18 | 30A | Glow plugs |
| 19 | 40A | Engine control module |
| 20 | 40A | Brake control module, Battery |
| 21 | 30A | Glow plugs |
| 22 | 40A | Blower motor |
| 23 | 10A | Front fog lights |
| 24 | 10A | Engine cooling |
| 25 | - | - |
| 26 | 10A | Diesel exaust fluids |
| 27 | 10A | Engine management system |
| 28 | 25A | Fuel pump |
| 29 | 25A | Front windshield washer |
| 30 | - | - |
| 31 | 25A | Rear window washer |
| 32 | - | - |
| 33 | - | - |
| 34 | 25A | Right-side headlight |
| 35 | 25A | Left-side headlight |
| 36 | 10A | Driver assistance systems |
| 37 | 15A | Horn |
| 38 | 10A | Hybrid system |
| 39 | 20A | 4WD |
| 40 | 25A | Power wash pump |
| 41 | 5A | Acoustic vehicle alerting system |
| 42 | 15A | PHEV only: Hybrid coolant pump |
| 43 | - | - |
| 44 | 40A | Right-side front heated windshield |
| 45 | 40A | PHEV only: Transmission oil pump |
| 46 | - | |
| 47 | 40A | Left-side front heated screen |
| 48 | 40A | Starter motor |
| 49 | 30A | Electric Parking Brake (EPB) |
| 50 | ||
| 51 | 40A | Diesel motor |
| 52 | 30A | Windshield wiper motor |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Rear wiper |
| 2 | - | - |
| 3 | 5A | Telematics |
| 4 | 5A | Fuel Burning Heater (FBH) |
| 5 | 25A | Driver assistance systems |
| 6 | 30A | Power tailgat |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | 25A | Right-side rear door module |
| 12 | 20A | Trailer socket |
| 13 | - | - |
| 14 | 25A | Left-side rear door module |
| 15 | 10A | Near field sensing module |
| 16 | - | - |
| 17 | - | - |
| 18 | - | - |
| 19 | 30A | Driveline |
| 20 | - | - |
| 21 | 20A | Accessory socket |
| 22 | - | - |
| 23 | - | - |
| 24 | 5A | USB socket |
| 25 | 5A | Vehicle battery |
| 26 | 20A | Rear heated seat module |
| 27 | - | - |
| 28 | - | - |
| 29 | 10A | Wireless phone charger |
| 30 | - | - |
| 31 | - | - |
| 32 | - | - |
| 33 | 20A | Trailer socket |
| 34 | 10A | Chassis control module |
| 35 | 30A | Driveline |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
| 39 | - | - |
| 40 | 10A | USB socket |
| 41 | 20A | Right-side heated rear seat |
| 42 | 20A | Rear console accessory socket |
| 43 | - | - |
| 44 | 30A | Heated rear screen |
| 45 | 30A | Driveline |
| 46 | - | - |
| 47 | 30A | Trailer socket |
| 48 | 30A | Deployable towbar |
| 49 | 50A | Auxiliary heater |
| 50 | 25A | Diesel Exhaust Fluid (DEF) |
