Jaguar XJ 2017 Fuse Box Info

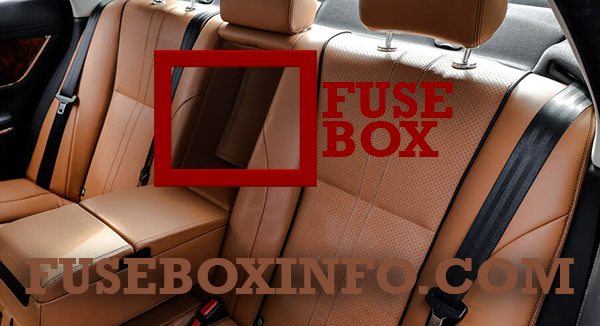

Passenger compartment fuse box location:
Engine compartment fuse box location:

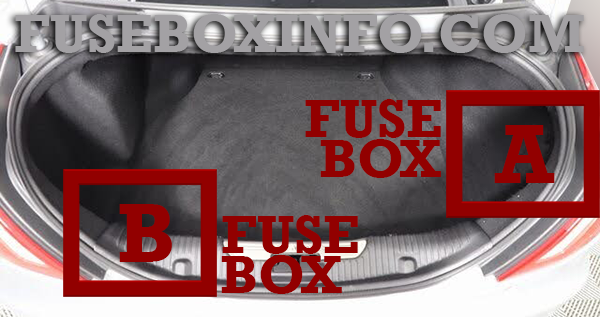

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Radio Frequency (RF) receiver. Alarm sensors. Tire Pressure Monitoring System (TPMS) |
| 2 | - | - |
| 3 | - | - |
| 4 | 5A | Databus gateway module |
| 5 | 5A | Stability control |
| 6 | 5A | Engine compartment fuse box |
| 7 | 20A | Left side rear climate seat |
| 8 | 30A | Front passenger's seat |
| 9 | 5A | Electric Parking Brake (EPB) |
| 10 | 5A | Air suspension |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | 5A | Brake pedal switch |
| 15 | 30A | Heated rear window |
| 16 | 5A | Power steering |
| 17 | 5A | Keyless vehicle systems |
| 18 | - | - |
| 19 | 5A | Engine management system |
| 20 | 10A | Heated steering wheel |
| 21 | 5A | Climate seats, Steering wheel, Center console rear media panel, Alarm sensors, Smog sensor |
| 22 | 5A | Transmission control module, Rear differential, Center console switches, Gear selector |
| 23 | 5A | Headlamp levelling |
| 24 | 5A | Right side front fog lights |
| 25 | 10A | Left side front fog lights |
| 26 | - | - |
| 27 | - | - |
| 28 | 20A | Right side rear climate seat |
| 29 | 20A | Driver's climate seat, Driver's heated seat |
| 30 | 25A | Front passenger door switches |
| 31 | 5A | Rain sensor |
| 32 | 25A | Driver’s door module |
| 33 | 20A | Front passenger climate seat, Front passenger heated seat |
| 34 | 10A | Fuel filler flap lock |
| 35 | - | - |
| 36 | 5A | Battery back-up sounder |
| 37 | 20A | Keyless vehicle systems |
| 38 | 15A | Windshield washer |
| 39 | 25A | Left side rear door switches |
| 40 | 5A | Driver’s door window, Driver's door memory switch, Clock, Center console switches, Rear climate control panel |
| 41 | - | - |
| 42 | 30A | Driver's seat |
| 43 | - | - |
| 44 | 25A | Right side rear door switches |
| 45 | 20A | Front passenger seat |
| 46 | 20A | Driver’s seat |
| 47 | - | - |
| 48 | 20A | Driver's seat |
| 49 | 5A | Right side headlight levelling |
| 50 | 5A | Left side headlight levelling |
| 51 | 5A | Steering wheel switches |
| 52 | 20A | Front cigar lighter |
| 53 | 20A | Rear cigar lighter |
| 54 | - | - |
| 55 | 20A | Rear accessory socket |
| 56 | 10A | Supplementary Restraint System (SRS) |
| 57 | 10A | Electrical power management, JaguarSense |
| 58 | 20A | Rear passenger seats |
| 59 | - | - |
| 60 | 5A | Dynamic response, Occupant sensor |
| 61 | 10A | Engine immobilizer, Instrument panel |
| 62 | 10A | Climate control |
| 63 | 20A | Front accessory socket |
| 64 | 15A | Left side rear sunblind |
| 65 | - | - |
| 66 | 5A | Diagnostic socket |
| 67 | - | - |
| 68 | - | - |
| 69 | 15A | Right side rear sunblind |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | 10A | Engine management sensors |
| 3 | 25A | Engine management sensors |
| 4 | 30A | Windshield washer pump |
| 5 | 40A | Engine management system |
| 6 | 40A | Right side windshield heater, Heated wipers |
| 7 | 30A | All Wheel Drive (AWD) |
| 8 | 10A | Engine management system |
| 9 | 10A | Engine management system |
| 10 | - | - |
| 11 | - | - |
| 12 | 20A | Engine management system |
| 13 | 20A | Engine management system |
| 14 | 5A | Adaptive Cruise Control |
| 15 | 20A | Engine management system |
| 16 | - | - |
| 17 | - | - |
| 18 | 15A | Horn |
| 19 | 30A | Starter motor |
| 20 | 40A | Anti-lock Braking System (ABS) |
| 21 | 25A | ABS |
| 22 | 15A | Left side headlights |
| 23 | 15A | Right side headlights |
| 24 | - | - |
| 25 | 15A | Engine management system |
| 26 | 40A | Wiper motor |
| 27 | 5A | Starter motor |
| 28 | 15A | Transmission |
| 29 | - | - |
| 30 | - | - |
| 31 | - | - |
| 32 | 40A | Left side windshield heater |
| 33 | - | - |
| 34 | - | - |
| 35 | - | - |
Luggage compartment fuse box A (Primary):
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Electric Parking Brake (EPB) |
| 2 | - | - |
| 3 | - | - |
| 4 | - | - |
| 5 | - | - |
| 6 | 30A | Power trunk lid |
| 7 | - | - |
| 8 | 5A | Telematics |
| 9 | - | - |
| 10 | - | - |
| 11 | 20A | Front passenger heated seat, Front passenger climate seat |
| 12 | 10A | Front seat switches, Front seat massage |
| 13 | 10A | Rear seat switches, Rear seat massage |
| 14 | 20A | Driver's heated seat, Driver's climate seat |
| 15 | - | - |
| 16 | 10A | Chassis systems |
| 17 | 10A | Air suspension |
| 18 | 10A | Entertainment system |
| 19 | 30A | Fuel pump |
| 20 | - | - |
| 21 | 10A | Instrument panel |
| 22 | 10A | Headlights, Camera, Lane keep assist, Parking aid, Interior mirror |
| 23 | 5A | Adaptive Cruise Control |
| 24 | 5A | Databus gateway module |
| 25 | 5A | Air suspension |
| 26 | 20A | Right side rear heated seat, Right side rear climate seat |
| 27 | 20A | Left side rear heated seat, Left side rear climate seat |
| 28 | - | - |
| 29 | - | - |
| 30 | 2A | Electronic toll collection |
| 31 | - | - |
| 32 | 30A | EPB |
| 33 | 40A | Rear differential |
| 34 | 40A | Heating and ventilation blower |
| 35 | 60A | Electrical power management |
| 36 | 40A | Sunroof |
| 37 | 60A | Air suspension |
| 38 | 40A | Body control module |
| 39 | - | - |
Luggage compartment fuse box B (Secondary):
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Touchscreen |
| 2 | 10A | Clock, Audio system amplifier, Portable audio interface |
| 3 | - | - |
| 4 | - | - |
| 5 | 15A | Entertainment system |
| 6 | 15A | Entertainment system |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | -- | - |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | 15A | Heating and ventilation |
| 16 | - | - |
