Jaguar F-Pace 2021 Fuse Box Info
Passenger compartment fuse box location:

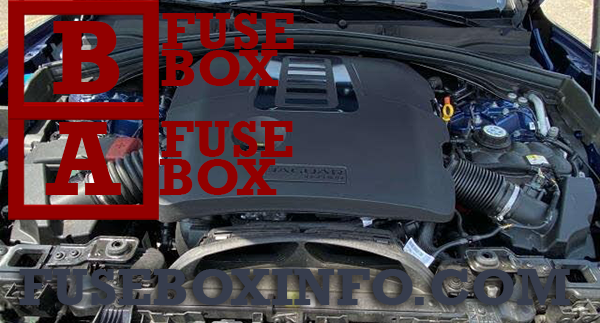

Engine compartment fuse box location:

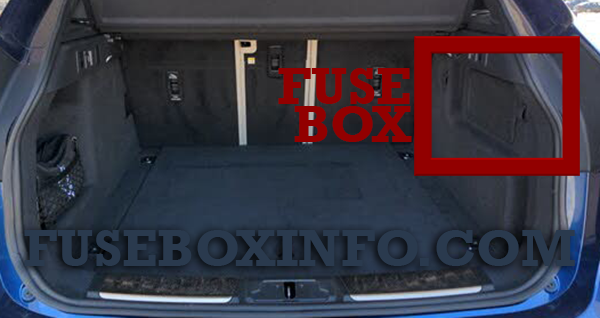

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | - | - |
| 3 | 25A | Right-side rear door |
| 4 | 25A | Right-side front door |
| 5 | 20A | Sunroof |
| 6 | 5A | - |
| 7 | 5A | Immobilizer antenna |
| 8 | 5A | Diagnostic socket |
| 9 | 5A | Battery back-up sounder |
| 10 | - | - |
| 11 | 5A | Tire Pressure Monitoring System (TPMS) |
| 12 | - | - |
| 13 | 25A | Left-side front door |
| 14 | 20A | Rear seat |
| 15 | 30A | Right-side front seat |
| 16 | 30A | Left-side front seat |
| 17 | 20A | Right-side front seat |
| 18 | 20A | Left-side front seat |
| 19 | 20A | Cubby box USB socket |
| 20 | 20A | Second row USB socket |
| 21 | 20A | Front auxiliary power socket |
| 22 | 10A | Wireless charging |
| 23 | 25A | Left-side rear door |
| 24 | 15A | Horns |
| 25 | 5A | Radio Frequency (RF) receiver |
| 26 | 5A | Steering wheel module |
| 27 | - | - |
| 28 | 5A | Electronic road pricing |
| 29 | - | - |
| 30 | - | - |
| 31 | 10A | Heated steering wheel |
| 32 | 20A | Left-side front heated or climate seat |
| 33 | 20A | Right-side front heated or climate seat |
| 34 | 5A | Ionizer |
| 35 | 5A | Keyless entry |
| 36 | - | - |
| 37 | - | - |
| 38 | 20A | Keyless locking |
| 39 | 5A | Driver assistance systems |
| 40 | - | - |
| 41 | - | - |
| 42 | - | - |
| - | - | - |
| 44 | - | - |
Engine compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | Left-side headlight |
| 2 | 25A | Right-side headlight |
| 3 | 5A | Driver assistance systems |
| 4 | 5A | 48V systems |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | 30A | Headlight washers |
| 9 | 10A | Transmission cooling |
| 10 | 15A | Engine cooling |
| 11 | 60A | Anti-lock Braking System (ABS) |
| 12 | 40A | Heated front screen: Right side |
| 13 | 40A | Heated front screen: Left side |
| 14 | - | - |
| 15 | 10A | Front fog lights |
| 16 | - | - |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| 20 | - | - |
| 21 | - | - |
| 22 | - | - |
Engine compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Windshield wipers |
| 2 | 40A | Engine control module |
| 3 | 20A | Rear blower motor |
| 4 | 20A | Engine management system |
| 5 | 20A | Engine management system |
| 6 | - | - |
| 7 | 10A | Engine management system |
| 8 | 10A | Engine management system |
| 9 | 10A | Engine management system |
| 10 | 10A | Engine cooling |
| 11 | 10A | Engine cooling |
| 12 | 25A | Engine management system |
| 13 | - | - |
| 14 | 40A | Transmission |
| 15 | 40A | Starter motor |
| 16 | - | - |
| 17 | 60A | Anti-lock Braking System (ABS) |
| 18 | 15A | Engine management system |
| 19 | 5A | Engine cooling |
| 20 | 5A | Engine starting |
| 21 | 15A | Transmission |
| 22 | - | - |
| 23 | - | - |
| 24 | 25A | All Wheel Drive (AWD system) |
| 25 | - | - |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | 5A | Climate and comfort systems |
| 12 | 20A | Left-side rear heated seat |
| 13 | 20A | Right-side rear heated seat |
| 14 | 15A | Chassis control module |
| 15 | 5A | Heated rear seats |
| 16 | - | - |
| 17 | - | - |
| 18 | 15A | Rear wiper |
| 19 | 5A | Blind spot monitor |
| 20 | - | - |
| 21 | 15A | Seats |
| 22 | - | - |
| 23 | - | - |
| 24 | 5A | Telematics |
| 25 | - | - |
| 26 | 20A | Loadspace USB socket |
| 27 | 20A | Center console rear USB socket |
| 28 | 5A | Adaptive cruise control radar |
| 29 | 15A | Climate and comfort systems |
| 30 | 20A | Auxiliary heater |
| 31 | - | - |
| 32 | - | - |
| 33 | 2A | Electronic toll charge |
| 34 | 10A | Interior mirror |
| 35 | - | - |
| 36 | 5A | Forward-facing camera |
| 37 | - | - |
| 38 | 10A | Instrument panel |
| 39 | 10A | Head-Up Display (HUD) |
| 40 | 10A | Gesture tailgate |
| 41 | - | - |
| 42 | 10A | Climate and comfort systems |
| 43 | - | - |
| 44 | 15A | Touchscreen |
| 45 | 10A | Audio/video input/output |
| 46 | 10A | Touchscreen |
| 47 | 30A | Fuel pump |
| 48 | - | - |
| 49 | - | - |
| 50 | - | - |
| 51 | - | - |
| 52 | - | - |
| 53 | - | - |
| 54 | - | - |
| 55 | - | - |
| 56 | - | - |
| 57 | 15A | 48V system |
| 58 | 10A | Proximity sensors |
| 59 | 30A | Powered tailgate |
| 60 | - | - |
| 61 | 10A | 48V system |
| 62 | - | - |
| 63 | 15A | 48V system |
| 64 | - | - |
| 65 | - | - |
| 66 | - | - |
| 67 | 15A | Trailer socket: Ignition |
| 68 | 15A | Trailer socket: Battery |
| 69 | 30A | Deployable side steps |
| 70 | - | - |
| 71 | 30A | Trailer socket |
| 72 | - | - |
| 73 | - | - |
