Jaguar F-Pace 2020 Fuse Box Info

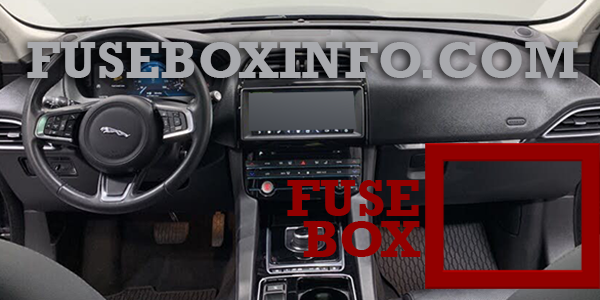

Passenger compartment fuse box location:
Engine compartment fuse box location:

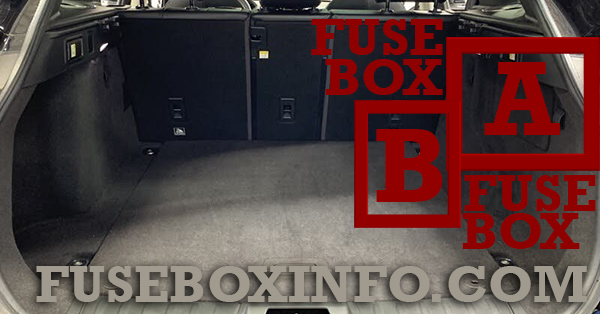

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Sunroof |
| 2 | 5A | Brake pedal switch |
| 3 | 5A | Immobilizer |
| 4 | 5A | Diagnostic connector |
| 5 | 5A | Battery back-up sounder |
| 6 | 20A | Second row auxiliary power socket |
| 7 | 20A | Cubby box auxiliary power socket |
| 8 | 20A | Left-side front seat |
| 9 | 20A | Right-side front seat |
| 10 | 30A | Left-side front seat |
| 11 | 30A | Right-side front seat |
| 12 | - | - |
| 13 | 20A | Front auxiliary power socket |
| 14 | 20A | Rear seat recline |
| 15 | - | - |
| 16 | 5A | Steering wheel module |
| 17 | 5A | Door handles antenna |
| 18 | 15A | Horns |
| 19 | - | - |
| 20 | 20A | Driver's heated or climate seat |
| 21 | 20A | Front passenger's heated or climate seat |
| 22 | 25A | Right-side front door module |
| 23 | 25A | Left-side rear door module |
| 24 | 25A | Right-side rear door module |
| 25 | 25A | Left-side front door module |
| 26 | 2A | Electronic toll road collection |
| 27 | - | - |
| 28 | 10A | Steering angle sensor |
| 29 | 5A | Keyless entry |
| 30 | 20A | Keyless entry |
| 31 | - | - |
| 32 | 5A | Tire Pressure Monitoring System (TPMS) |
| 33 | 15A | Air Conditioning (A/C) |
| 34 | 10A | USB socket |
| 35 | - | - |
Engine compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Left-side headlamp motor |
| 2 | 5A | Headlamps |
| 3 | 5A | Right-side headlamp motor |
| 4 | - | - |
| 5 | - | - |
| 6 | 30A | Headlamp power wash |
| 7 | - | - |
| 8 | - | - |
| 9 | 10A | Front fog lights |
| 10 | 15A | Intercooler water pump |
Engine compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| 11 | 15A | Engine management system |
| 12 | 15A | Engine management system |
| 13 | 10A | Engine management system |
| 14 |
15A 10A |
Engine management system (2.0L gasoline) Engine management system (2.0L diesel, 3.0L gasoline) |
| 15 | 10A | Engine management system |
| 16 | 25A | Engine management system |
| 17 | 20A | Exhaust sensors |
| 18 | 20A | Exhaust sensors |
| 19 | 20A | Exhaust sensors (3.0L gasoline) |
| 20 | 15A | Engine management system |
| 21 | - | - |
| 22 | 5A | Intercooler water pump |
| 23 | 5A | Engine management system, Starter monitor, Electrical power management |
| 24 | 15A | Transmission control module |
| 25 | 30A | Starter Motor |
| 26 | 5A | Engine management system |
| 27 | 25A | Transfer box |
| 28 | 30A | Fuel pump |
Luggage compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Luggage compartment auxiliary power socket |
| 2 | 5A | Heated rear seats |
| 3 | 20A | Left-side heated rear seat |
| 4 | 20A | Right-side heated rear seat |
| 5 | 10A | Adaptive dynamic suspension, Electronic differential |
| 6 | 10A | Message center |
| 7 | - | - |
| 8 | 25A | Trailer socket |
| 9 | 10A | Diesel Exhaust Fluid (DEF) |
| 10 | 25A | Diesel Exhaust Fluid (DEF) |
| 11 | 10A | Rear-view mirror, Blind Spot Monitoring (BSM), Camera |
| 12 | 10A | Entertainment system |
| 13 | 10A | Heated steering wheel |
| 14 | 10A | Head-Up Display (HUD) |
| 15 | 5A | Camera |
| 16 | - | - |
| 17 | 5A | Adaptive Cruise Control (ACC) |
| 18 | 20A | Trailer socket |
| 19 | - | - |
| 20 | 10A | Telematics |
| 21 | - | - |
| 22 | 15A | Driver's door switches, Driver's seat, Driver's seat switches, Front passenger seat |
| 23 | - | - |
| 24 | 20A | Rear auxiliary power socket |
| 25 | - | - |
| 26 | 15A | Rear wiper |
| 27 | 30A | Electrically deployable tow bar, Trailer |
| 28 | 30A | Fuel system |
| 29 | 30A | Powered tailgate |
| 30 | 5A | Diesel fuel pump |
Luggage compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Touch screen, Climate control panel |
| 2 | 10A | Audio amplifier |
| 3 | 10A | Gesture tailgate |
| 4 | 10A | Navigation |
| 5 | 15A | Audio head unit |
| 6 | 15A | Portable media connector panel |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | 15A | Heating and ventilation system |
| 16 | 20A | Auxiliary heater |
