Jaguar XF 2019 Fuse Box

Jaguar Hits: 509

Jaguar XF 2019 Fuse Box Info

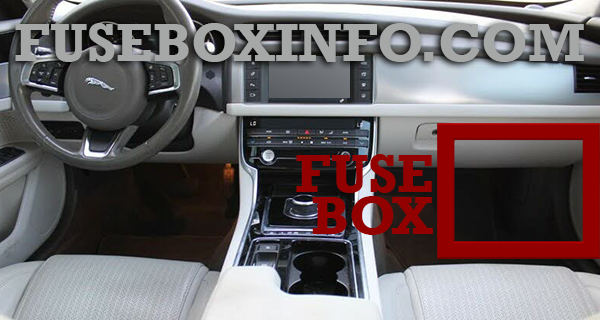

Passenger compartment fuse box location:

Engine compartment fuse box location:

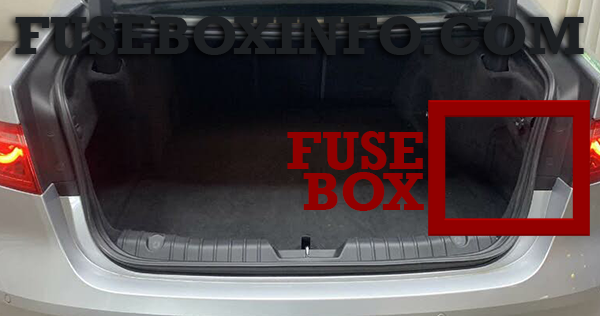

Luggage compartment fuse box location:

Fuse Box Diagram | Layout

Passenger compartment fuse box:

Fuse/Relay N°	Rating	Functions
1	20A	Sunroof
2	5A	Brake pedal switch
3	5A	Immobilizer
4	5A	Diagnostic socket
5	5A	Battery back-up sounder
6	20A	Second row auxiliary power socket
7	20A	Cubby box auxiliary power socket
8	30A	Left front seat
9	30A	Right front seat
10	30A	Left front seat
11	30A	Right front seat
12	-	-
13	20A	Front auxiliary power socket
14	-	-
15	-	-
16	5A	Steering wheel module
17	5A	Door handles antenna
18	15A	Horns
19	-	-
20	20A	Driver's Heated/Climate seat
21	20A	Front passenger's Heated/Climate seat
22	25A	Right front door
23	25A	Left rear door
24	25A	Right rear door
25	25A	Left front door
26	-	-
27	-	-
28	10A	Steering angle sensor
29	5A	Keyless entry
30	20A	Keyless entry
31	-	-
32	5A	Tire Pressure Monitoring System (TPMS)
33	15A	Air Conditioning (A/C)
34	-	-
35	-	-

Engine compartment fuse box A:

Engine compartment fuse box B:

Fuse/Relay N°	Rating	Functions
11	15A	Engine management system
12	15A	Engine management system
13	10A	Gear selector, Fuel system, Engine management system
14	15A	Engine management system (2.0L diesel)
15	10A	Engine cooling, Engine mounts, Engine management system
16	25A	Engine management system (3.0L gasoline)
17	20A 10A	Exhaust sensors Engine management system (2.0L petrol)
18	20A	Exhaust sensors
19	20A	Exhaust sensors (3.0L gasoline)
20	15A	Engine management system
21	-	-
22	5A	Intercooler water pump
23	5A	Engine management system, Starter monitor, Electrical power management
24	-	-
25	30A	Starter Motor
26	5A	Engine management system
27	25A	Transfer box
28	30A	Fuel pump

Luggage compartment fuse box (Lower) - Saloon vehicles only:

Fuse/Relay N°	Rating	Functions
1	20A	Luggage compartment auxiliary power socket
2	5A	Rear heated seats
3	20A	Left Heated rear seat
4	20A	Right Heated rear seat
5	10A	Dynamic Stability Control (DSC), Electronic differential
6	10A	Instrument panel
7	-	-
8	25A	Trailer
9	10A	Diesel Exhaust Fluid (DEF)
10	25A	Diesel Exhaust Fluid (DEF)
11	10A	Rear-view mirror, Blind Spot Monitoring (BSM) system, Camera
12	10A	Entertainment system
13	10A	Heated steering wheel
14	-	-
15	5A	Camera
16	-	-
17	5A	Adaptive Cruise Control
18	20A	Trailer
19	-	-
20	10A	Telematics
21	-	-
22	15A	Driver's door switches, Driver's seat, Driver's seat controls, Front passenger seat
23	10A	Rear sunblind
24	20A	Rear auxiliary power socket
25	-	-
26	-	-
27	30A	Electrically deployable tow bar, Trailer
28	30A	Fuel system
29	30A	Powered trunk
30	5A	Diesel pump

Luggage compartment fuse box (Upper) - Saloon vehicles only:

Fuse/Relay N°	Rating	Functions
1	15A	Touch screen, Climate control panel
2	10A	Audio amplifier
3	10A	Gesture trunk
4	10A	Navigation system, Television tuner
5	15A	Audio head unit
6	15A	Portable media connector panel
7	-	-
8	-	-
9	-	-
10	-	-
11	-	-
12	-	-
13	-	-
14	-	-
15	15A	Heating and ventilation system
16	-	-

Luggage compartment fuse box - Sportbrake vehicles only:

Fuse/Relay N°	Rating	Functions
11	5A	Spare
12	20A	Left-side heated rear seat
13	20A	Right-side heated rear seat
14	20A	Dynamic Stability Control (DSC)
15	5A	Heated rear seats
16	10A	Heated steering wheel
17	25A	Spare
18	15A	Rear wiper
19	5A	Blind spot monitor, Clear exit detection
20	15A	Spare
21	15A	Seat switches
22	15A	Seat massage
23	10A	Rear sunblind
24	10A	Telematics
25	15A	Rear wiper
26	10A	Luggage compartment auxiliary socket
27	20A	Center console rear auxiliary socket
28	5A	Adaptive cruise control
29	15A	Climate control, Rear blower motor
30	20A	Auxiliary heater
31	25A	Spare
32	25A	Spare
33	2A	Vehicle Information Control System (VICS)
34	10A	Rear-view mirror, Blind spot monitor, Camera, Parking aid
35	-	-
36	5A	Auto High Beam Assist (AHBA)
37	25A	Spare
38	10A	Instrument panel
39	-	-
40	10A	Gesture tailgate, Portable media connections
41	15A	Entertainment system
42	15A	Climate control
43	10A	Spare
44	15A	Entertainment system
45	10A	Entertainment system, Portable media connections, Occupant detection
46	15A	Spare
47	30A	Fuel system
48	25A	Heating system
49	5A	Fuel system (diesel vehicles only)
50	15A	Powered luggage compartment cover
51	5A	Adaptive dynamics
52	25A	Spare
53	10A	Air suspension
54	25A	Spare
55	-	-
56	15A	Adaptive dynamics
57	25A	Spare
58	10A	Adaptive cruise control
59	30A	Powered tailgate
60	25A	Spare
61	25A	Electrical power management
62	25A	Spare
63	25A	Spare
64	10A	Entertainment system
65	10A	Diesel Exhaust Fluid (DEF)
66	25A	Spare
67	15A	Trailer
68	15A	Trailer
69	30A	Deployable side steps
70	30A	Trailer braking
71	30A	Electrically deployable tow bar
