Hyundai Aura 2026 Fuse Box Info

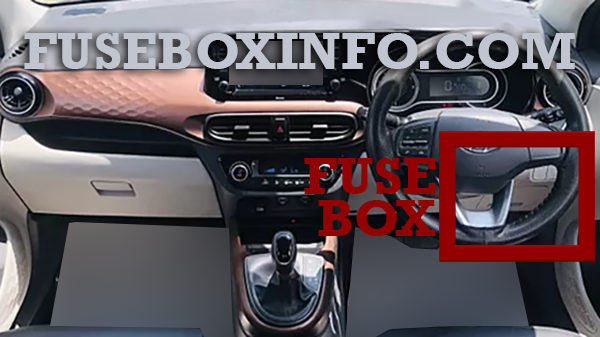

Passenger compartment fuse box location:
The fuse box is located at the right side of the steering column at the bottom of the instrument panel, behind the cover.

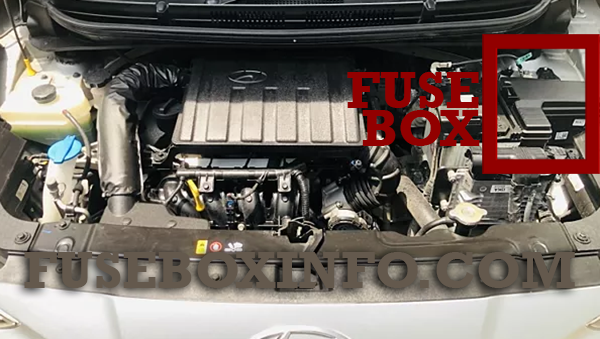

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| Inner Compartment Fuse Panel (ICU) | ||
| ROOM LAMP | 10A | ICU: Room Lamp, FOOT LP_DRV & PASS, Luggage Lamp |
| OUTSIDE MIRROR HEATED |
10A | Outside Mirror Heated, ECU, RR HTD SW |
| POWER WINDOW LH |
25A | FRT Power Window LH |
| POWER OUTLET FRONT |
20A | ICU/PCB: Front Power Outlet |
| IBU1 | 15A | ICU: BODY CONTROL MODULE (IBU) |
| MULTI MEDIA |
20A | ICU: AUDIO |
| POWER WINDOW RH |
25A | FRT Power Window RH |
| TCU | 15A | PCB/ICU: AT : Speed Sensor Out, Inhibit SW |
| BRAKE SWITCH |
10A | PCB/ICU: Stop Switch |
| MEMORY | 10A | ICU: A/Con (FATC), A/Con (MTC), Cluster |
| START | 7.5A | PCB: Inhibitor Switch, Start Relay |
| FOLDING MIRROR |
10A | ICU/PCB: Folding Mirror |
| MODULE1 | 7.5A | ICU/PCB: Stop Switch |
| Airbag | 10A | ICU/PCB: ACU |
| Inner Compartment Fuse Panel (PCB) | ||
| DOOR LOCK | 20A | ICU: Door Lock, T/GATE |
| ECU | 10A | ICU/PCB: ECU, A_FLOW_SNSR |
| DRL | 10A | ICU: DRL, DRL Position Lamp |
| MODULE6 | 10A | ICU: OBD PCB: OBD_EXTN |
| HAZARD | 15A | PCB: HAZARD Switch, ICU: IBU (Turn Signal) |
| MODULE2 | 10A | PCB: ESC Switch, ICU: BCM(IBU) *for CNG:CNG_SW:IGN1 |
| MODULE3 | 7.5A | PCB/ICU: FATC, AT Lever Indicator, Head Lamp Projection, Audio Compact, AVN, VDMS EXTN, OBD |
| REAR WIPER |
15A | RR WPR MOTOR MFSW (RR_WIPER) |
| Airbag INDICATOR |
7.5A | PCB/ICU: Cluster |
| IBU2 | 10A | ICU: BCM (IBU), Immobilizer |
| ABS | 7.5A | PCB/ICU: ABS/ESC Unit |
| FRONT WIPER |
20A | PCB/ICU: MFSW, Wiper Motor |
| A/CON2 | 7.5A | PCB/ICU: MTC, FATC, Dual Switch |
| CLUSTER | 7.5A | PCB/ICU: Cluster |
| ACC | 10A | ICU: AUDIO, AVN, IBU, OBD, E_CALL, O/S MIRROR SW, USB CHARGER PCB: AUDIO, AVN, USB CHARGER, O/S MIROR SW |
| MDPS | 7.5A | PCB/ICU: Motor Driven Power Steering Unit |
| MODULE4 | 7.5A | ICU: BCM (IBU) |
| REAR POWER OUTLET |
20A | PCB/ICU: RR Power Outlet |
| A/CON1 | 7.5A | PCB/ICU: FATC, Blower Motor |
| Fog Lamp | 10A | PCB/ICU: Fog Lamp REAR |
| TAIL LH | 7.5A | PCB: Position Lamp LH, Head Lamp LH, RR Combi Lamp LH |
| OUTSIDE MIRROR HEATED |
10A | Outside Mirror Heated |
| POWER WINDOW LH |
25A | FOR ALL THE POWER WINDOW |
| POWER OUTLET FRONT |
20A | ICU/PCB: Front Power Outlet |
| TAIL RH | 7.5A | PCB: Position Lamp RH, Head Lamp RH, RR Combi Lamp RH |
| POWER WINDOW RH |
25A | FRT Power Window RH |
| TCU | 15A | PCB/ICU: AT : Speed Sensor Out, Inhibit SW AMT: AMT Lever |
| BRAKE SWITCH |
10A | PCB/ICU: Stop Switch |
| STOP LAMP | 15A | PCB: Stop Lamp, RR Combi Lamp, HMSL |
| START | 7.5A | PCB: Inhibitor Switch, Start Relay |
| FOLDING MIRROR |
10A | ICU/PCB: Folding Mirror |
| MODULE1 | 7.5A | ICU/PCB: Stop Switch |
| IMMOBILIZER | 10A | PCB: Immobilizer Unit |
| Airbag | 10A | ICU/PCB: ACU |
| Inner Compartment Fuse Panel (PCB) | ||
| DOOR LOCK | 20A | ICU: Door Lock |
| ECU | 10A | ICU/PCB: ECU, A_FLOW_SNSR |
| MODULE6 | 10A | ICU: OBD PCB: OBD & OBD_EXN |
| HAZARD | 15A | PCB: HAZARD Switch, ICU: IBU (Turn Signal) |
| MODULE2 | 10A | PCB: ESC Switch, ICU: BCM (IBU) |
| MODULE3 | 7.5A | PCB/ICU: FATC, AT Lever Indicator, Head Lamp Projection, Audio Compact, Infotainment system |
| HEAD LAMP | 10A | PCB: Head Lamp Relay |
| REAR WIPER | 15A | PCB: RR Wiper Motor, ICU : Washer Motor |
| Airbag INDICATOR |
7.5A | PCB/ICU: Cluster |
| TURN SIGNAL | 10A | PCB: TURN SIGNAL |
| ABS | 7.5A | PCB/ICU: ABS/ESC Unit |
| FRONT WIPER |
20A | PCB/ICU: MFSW, Wiper Motor |
| A/CON2 | 7.5A | PCB/ICU: MTC, FATC, Dual Switch |
| CLUSTER | 7.5A | PCB/ICU: Cluster |
| ACC | 10A | PCB/ICU: Crash_VDMS_Extension, USB Charger, Audio_B, IBU |
| MDPS | 7.5A | PCB/ICU: Motor Driven Power Steering Unit |
| MODULE5 | 10A | PCB/ICU: Crash_VDMS_Extension |
| REAR POWER OUTLET |
20A | PCB/ICU: RR Power Outlet |
| A/CON1 | 7.5A | PCB/ICU: FATC, Blower Motor |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MAIN RELAY | 30A | ECU (MT, AT, CNG, BS6) |
| START | 20A | ECU, Start Solenoid |
| BLOWER | 35A | PCB, ICU |
| BURGLAR ALARM HORN |
20A | IBU |
| HEAD LAMP HI |
20A | Head Lamp Projection, Head Lamp |
| HEAD LAMP | 20A | Head Lamp Fuse |
| FUEL PUMP | 20A | F_PUMP_MTR |
| HORN | 20A | HORN |
| AIR CONDITIONER |
20A | A/CON_COM |
| COOLING FAN | 35A | Radiator Fan Motor |
| ALTERNATOR | 125A | K1.0, K1.2 |
| MDPS | 80A 50A |
DC type Economical type |
| BLOWER | 40A | Blower Relay |
| REAR HEATED | 40A | RR Heated Relay |
| COOLING FAN | GSL 30A |
Cooling Fan Relay |
| IGNITION1 | 30A | Starting (ICU/PCB_IG1) |
| BATTERY3 | 30A | ICU/PCB_B+3 |
| BATTERY2 | 30/50A | ICU/PCB_B+2 |
| BATTERY1 | 30/40A | ICU/PCB_B+1 |
| BATTERY4 | 50A | ICU/PCB_B+4 |
| AMT1 | 40A | TCU |
| ABS/ESC2 | 15A | ABS/ESC Unit |
| POWER OUTLET |
40A | P/OUTLET RLY |
| ABS/ESC1 | 25A | ABS/ESC Unit |
| ECU1 | 30A | FOR ALL THE ECU |
| IGNITION2 | 30A | Starting, Start Relay |
| AMT2 | 40A | TCU |
| BACK UP LAMP1 | 10A | BACK_UP_LAMP |
| FRONT WIPER | 10A | Front Wiper, ECU |
| ECU3 | 15A | ECU (MT, AT, BS6) |
| HORN | 15A | Horn Relay |
| AIR CONDITIONER |
10A | A/Con Relay |
| HEAD LAMP LH | 10A | Head Lamp LH, Head Lamp Projection LH |
| HEAD LAMP RH | 10A | Head Lamp RH, Head Lamp Projection RH |
| ECU7 | 10A | ECU: K 1.2 CNG |
| ECU8 | 15A | ECU: K 1.0 KMP, K 1.2 MPI |
| HEAD LAMP HI | 10A | Cluster |
| ECU2 | 15A | OBD |
| ECU5 | 15A | ECU: K 1.2 CNG |
| ECU4 | 15A | OBD |
| ECU6 | 15A | Ignition Coil Extension |
| HEAD LAMP LO | 20A | Head Lamp Relay |
| HEAD LAMP HI | 20A | Head Lamp HI Relay |
| FUEL PUMP3 | 15A | Fuel Pump Relay |
| AMT3 | 15A | TCU |
