Hyundai i10 2025 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover.
Engine compartment fuse box location:
Fuse Box Diagram | Layout

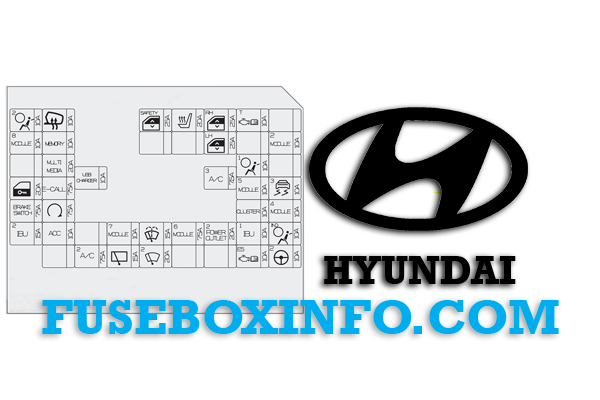

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| AIRBAG 2 | 10A | SRS Control Module |
| HEATED MIRROR |
10A | A/C Control Module, Driver/Passenger Power Outside MIrror |
| SAFETY P/ WINDOW |
25A | Driver Safety Power Window Module |
| SEAT WARMER | 20A | Driver/Passenger Seat Warmer Control Module |
| P/WINDOW RH | 25A | Power Window Main Switch, [LHD] Passenger Power Window Switch |
| TCU | 10A | TCM, ATM Shift Lever, Back-Up Lamp Switch |
| MODULE 8 | 10A | Hazard Door Lock Switch, Data Link Connector |
| MEMORY | 10A | Outside Mirror Folding/Unfolding Relay, A/C Control Module, Instrument Cluster |
| P/WINDOW LH | 25A | Power Window Main Switch, [RHD] Passenger Power Window Switch |
| MODULE 2 | 10A | Stop Lamp Switch |
| MULTIMEDIA | 20A | A/V & Navigation Head Unit, Audio, Low DC-DC Converter |
| AIRBAG 1 | 10A | SRS Control Module |
| USB CHARGER | 10A | Front USB Charger, Wireless Charger Indicator |
| A/C 3 | 7.5A | A/C Control Module |
| DOOR LOCK | 20A | Tailgate Unlock Relay, Door Lock/Unlock Relay |
| E-CALL | 7.5A | E-Call Unit |
| MODULE 5 | 10A | Wireless Cjarger Unit, Data Link Connector, E-Call Unit, ATM Shift Lever ILL., Low DC-DC Converter, Driver/Passenger Seat Warmer Control Module, Head Lamp LH/RH, Head Lamp Leveling Device Switch, A/C Control Module, A/V & Navigation Head Unit, Audio |
| ESP 3 | 10A | ESP Control Module |
| BRAKE SWITCH | 7.5A | IBU, Stop Lamp Switch |
| START | 7.5A | IBU, ECM |
| CLUSTER | 10A | Instrument Cluster |
| MODULE 4 | 10A | IBU, Console Switch, ESP Control Module, Clutch Sensor, Multifunction Camera, Ignition Lock & Clutch Switch |
| IBU 2 | 15A | IBU |
| ACC | 10A | Power Outlet Relay, Power Outside Mirror Switch, IBU, Rear USB Charger, E-Call Unit, A/V & Navigation Unit, Audio, Low DC-DC Converter, Front Power Outlet |
| MODULE 7 | 10A | Driver/Passenger Seat Warmer Control Module |
| WASHER | 15A | Multifunction Switch |
| MODULE 6 | 7.5A | IBU |
| POWER OUTLET |
20A | Front Power Outlet |
| IBU 1 | 10A | IBU |
| A/BAG IND | 10A | A/C Control Module, Instrument Cluster |
| A/C 1 | 7.5A | A/C Control Module, E/R Junction Block (RLY. 12) |
| WIPER RR | 15A | Rear Wiper Motor, E/R Junction Block (RLY. 3) |
| WIPER FRT 2 | 20A | Front Wiper Motor, E/R Junction Block (RLY. 11) |
| ECU 5 | 10A | ECM |
| MDPS 2 | 10A | MDPS Unit |
Engine compartment fuse box (for Smartstream G1.0):
| Fuse/Relay Name | Rating | Functions |
| RLY.1 | - | Main Relay |
| RLY.2 | - | Fuel Pump Relay |
| RLY.3 | - | Rear Wiper Relay |
| RLY.4 | - | Cooling Fan Low Relay |
| RLY.5 | - | Front Wiper High Relay |
| RLY.6 | - | A/CON Relay |
| RLY.7 | - | Start Relay |
| RLY.8 | - | Cooling Fan High Relay |
| RLY.9 | - | B/Alarm Horn Relay |
| RLY.10 | - | Horn Relay |
| RLY.11 | - | Front Wiper Low Relay |
| RLY.12 | - | Blower Relay |
| ALT | 125A (Without ISG) 150A (With ISG) |
Alternator, Multi Fuse - F02, Fuse - F03/F05/F06/F07/F08 |
| MDPS | 80A | MDPS Unit |
| BLOWER | 40A | E/R Junction Block (RLY.12) |
| RR DEFOG | 30A | ICU Junction Block (Rear Defogger Relay) |
| ABS2 | 40A | ESP Control Module |
| POWER OUTLET1 |
40A | ICU Junction Block (Power Outlet Relay) |
| ABS1 | 40A | ESP Control Module |
| WIPER1 | 10A | Front Wiper Motor, ECM, IBU, E/R Junction Block (RLY.11) |
| IG1 | 30A | [With Smart Key] PDM Relay Box (IG1, ACC Relay) [W/O Smart Key] Ignition Switch |
| C/FAN | 30A | E/R Junction Block (RLY.4, RYL.8) |
| AMT2 | 40A | TCM |
| BATT3 | 30A | ICU Junction Block (Long Term Load Latch Relay, Fuse - F01/F08/ F21/F25/F29) |
| BATT2 | 50A | ICU Junction Block (Power Window Relay, Fuse - F03/F04) |
| BATT4 | 40A | ICU Junction Block (IPS2 (4CH)/IPS4 (4CH)/IPS6 (2CH)/IPS9 (2CH)/ IPS10 (1CH)) |
| ECU3 | 15A | ECM |
| HORN | 15A | E/R Junction Block (RLY.9, RLY.10) |
| A/CON1 | 10A | E/R Junction Block (RLY.6) |
| BATT1 | 50A | ICU Junction Block (IPS1 (4CH)/IPS3 (4CH)/IPS5 (2CH)/IPS7 (2CH)/ IPS8 (2CH)/IPS11 (1CH)) |
| AMT1 | 40A | TCM |
| IG2 | 30A | E/R Junction Block (RLY.7)[With Smart Key] PDM Relay Box (IG2 Relay)[W/O Smart Key] Ignition Switch |
| AMT3 | 15A | TCM |
| FUEL PUMP | 15A | E/R Junction Block (RLY.2) |
| AMS | 10A | Battery Sensor |
| ECU4 | 15A | ECM, Ignition Lock & Clutch Switch |
| ECU1 | 30A | E/R Junction Block (RLY.1) |
| IGN COIL | 15A | Ignition Coil #1/#2/#3 |
| INJECTOR | 15A | ECM, E/R Junction Block (RLY.2), Injector #1-1/#1-2/#2-1/#2-2/#3 1/#3-2 |
| ECU2 | 15A | E/R Junction Block (RLY.4, RLY.6, RLY. 8), ECM, Oil Control Valve #1/#2 (Intake/Exhaust), Oxygen Sensor (Up/Down), Purge Control Solenoid Valve |
Engine compartment fuse box (for Smartstream G1.2 ):
| Fuse/Relay Name | Rating | Functions |
| RLY.1 | - | Main Relay |
| RLY.2 | - | Fuel Pump Relay |
| RLY.3 | - | Rear Wiper Relay |
| RLY.4 | - | Cooling Fan Low Relay |
| RLY.5 | - | Front Wiper High Relay |
| RLY.6 | - | A/CON Relay |
| RLY.7 | - | Start Relay |
| RLY.8 | - | Cooling Fan High Relay |
| RLY.9 | - | B/Alarm Horn Relay |
| RLY.10 | - | Horn Relay |
| RLY.11 | - | Front Wiper Low Relay |
| RLY.12 | - | Blower Relay |
| ALT | 125A (Without ISG) 150A (With ISG) |
Alternator, Multi Fuse - F02, Fuse - F03/F05/F06/F07/F08 |
| MDPS | 80A | MDPS Unit |
| BLOWER | 40A | E/R Junction Block (RLY.12) |
| RR DEFOG | 30A | ICU Junction Block (Rear Defogger Relay) |
| ABS2 | 40A | ESP Control Module |
| POWER OUTLET1 |
40A | ICU Junction Block (Power Outlet Relay) |
| ABS1 | 40A | ESP Control Module |
| WIPER1 | 10A | Front Wiper Motor, ECM, IBU, E/R Junction Block (RLY.11) |
| IG1 | 30A | [With Smart Key] PDM Relay Box (IG1, ACC Relay) [W/O Smart Key] Ignition Switch |
| C/FAN | 30A | E/R Junction Block (RLY.4, RYL.8) |
| AMT2 | 40A | TCM |
| BATT3 | 30A | ICU Junction Block (Long Term Load Latch Relay, Fuse - F01/F08/F21/F25/F29) |
| BATT2 | 50A | ICU Junction Block (Power Window Relay, Fuse - F03/F04) |
| BATT4 | 40A | ICU Junction Block (IPS2 (4CH)/IPS4 (4CH)/IPS6 (2CH)/IPS9 (2CH)/IPS10 (1CH)) |
| ECU3 | 15A | ECM |
| HORN | 15A | E/R Junction Block (RLY.9, RLY.10) |
| A/CON1 | 10A | E/R Junction Block (RLY.6) |
| BATT1 | 50A | ICU Junction Block (IPS1 (4CH)/IPS3 (4CH)/IPS5 (2CH)/IPS7 (2CH)/IPS8 (2CH)/IPS11 (1CH)) |
| AMT1 | 40A | TCM |
| IG2 | 30A | E/R Junction Block (RLY.7) [With Smart Key] PDM Relay Box (IG2 Relay) [W/O Smart Key] Ignition Switch |
| AMT3 | 15A | TCM |
| FUEL PUMP | 15A | E/R Junction Block (RLY.2) |
| AMS | 10A | Battery Sensor |
| ECU4 | 15A | ECM, Ignition Lock & Clutch Switch |
| ECU1 | 30A | E/R Junction Block (RLY.1) |
| IGN COIL | 15A | Ignition Coil #1/#2/#3 |
| INJECTOR | 15A | ECM, E/R Junction Block (RLY.2), Injector #1-1/#1-2/#2-1/#2-2/#3-1/#3 2/#4-1/#4-2 |
| ECU2 | 15A | E/R Junction Block (RLY.4, RLY.6, RLY. 8), ECM, Oil Control Valve #1/#2 (Intake/Exhaust), Oxygen Sensor (Up/Down), Purge Control Solenoid Valve |
Engine compartment fuse box (for Smart stream G1.0 T-GDi ):
| Fuse/Relay Name | Rating | Functions |
| RLY.1 | - | Main Relay |
| RLY.2 | - | Fuel Pump Relay |
| RLY.3 | - | Rear Wiper Relay |
| RLY.4 | - | Cooling Fan Low Relay |
| RLY.5 | - | Front Wiper High Relay |
| RLY.6 | - | A/CON Relay |
| RLY.7 | - | Start Relay |
| RLY.8 | - | Cooling Fan High Relay |
| RLY.9 | - | B/Alarm Horn Relay |
| RLY.10 | - | Horn Relay |
| RLY.11 | - | Front Wiper Low Relay |
| RLY.12 | - | Blower Relay |
| ALT | 125A (Without ISG) 150A (With ISG) |
Alternator, Multi Fuse - F02, Fuse - F03/F05/F06/F07/F08 |
| MDPS | 80A | MDPS Unit |
| BLOWER | 40A | E/R Junction Block (RLY.12) |
| RR DEFOG | 30A | ICU Junction Block (Rear Defogger Relay) |
| ABS2 | 40A | ESP Control Module |
| POWER OUTLET1 |
40A | ICU Junction Block (Power Outlet Relay) |
| ABS1 | 40A | ESP Control Module |
| WIPER1 | 10A | Front Wiper Motor, ECM, IBU, E/R Junction Block (RLY.11) |
| IG1 | 30A | [With Smart Key] PDM Relay Box (IG1, ACC Relay) [W/O Smart Key] Ignition Switch |
| C/FAN | 30A | E/R Junction Block (RLY.4, RYL.8) |
| AMT2 | 40A | TCM |
| BATT3 | 30A | ICU Junction Block (Long Term Load Latch Relay, Fuse - F01/F08/F21/F25/F29) |
| BATT2 | 50A | ICU Junction Block (Power Window Relay, Fuse - F03/F04) |
| BATT4 | 40A | ICU Junction Block (IPS2 (4CH)/IPS4 (4CH)/IPS6 (2CH)/IPS9 (2CH)/IPS10 (1CH)) |
| ECU3 | 15A | ECM |
| HORN | 15A | E/R Junction Block (RLY.9, RLY.10) |
| A/CON1 | 10A | E/R Junction Block (RLY.6) |
| BATT1 | 50A | ICU Junction Block (IPS1 (4CH)/IPS3 (4CH)/IPS5 (2CH)/IPS7 (2CH)/IPS8 (2CH)/IPS11 (1CH)) |
| AMT1 | 40A | TCM |
| IG2 | 30A | E/R Junction Block (RLY.7) [With Smart Key] PDM Relay Box (IG2 Relay)[W/O Smart Key] Ignition Switch |
| AMT3 | 15A | TCM |
| FUEL PUMP | 15A | E/R Junction Block (RLY.2) |
| AMS | 10A | Battery Sensor |
| ECU4 | 15A | ECM, Ignition Lock & Clutch Switch |
| ECU1 | 30A | E/R Junction Block (RLY.1) |
| IGN COIL | 15A | Ignition Coil #1/#2/#3 |
| INJECTOR | 15A | ECM, E/R Junction Block (RLY.2), Injector #1-1/#1-2/#2-1/#2-2/#3 1/#3-2 |
| ECU2 | 15A | E/R Junction Block (RLY.4, RLY.6, RLY. 8), ECM, Oil Control Valve #1/#2 (Intake/Exhaust), Oxygen Sensor (Up/Down), Purge Control Solenoid Valve |
