Hyundai Tucson 2004 Fuse Box Info
Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the driver side of the instrument panel.

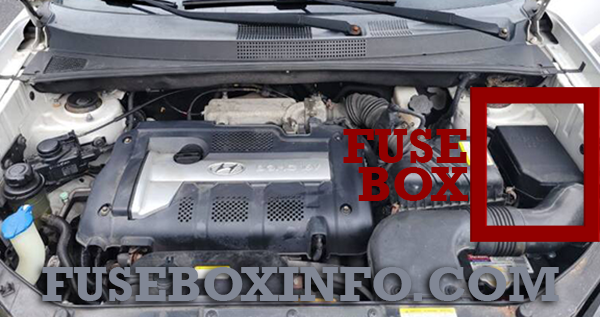

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay | Rating | Functions |
| P/WDW-LH | 30A | Left power window |
| P/WDW-RH | 30A | Right power window |
| TAIL RH | 10A | Right rear combination lamp, Glove box llluminations |
| RR HTR | 30A | Rear defogger |
| A/BAG | 15A | SRS control |
| CLUSTER | 10A | Instrument cluster, ETACM/TACM |
| TAIL LH | 10A | Left head lamp, left rear combination lamp, License lamp |
| AUDIO | 10A | Digital clock, Audio, Power outside mirror folding module, Power outside mirror & mirror folding switch |
| C/LIGHTER & P/OUTLET |
20A | Cigarette lighter |
| SPARE | 15A | (SPARE) |
| RR FOG | 10A | Rear fog lamp |
| HTD MIRR | 10A | Left/Right power outsider mirror& mirror folding motor, Rear defogger switch |
| AUDIO | 10A | Audio |
| IG COIL | 20A | Ignition coil (2.7 GSL) |
| IMMO | 10A | Immobilizer control module (2.7 GSL) |
| P/OUTLET | 15A | Rear power outlet |
| 10A | (Not used) | |
| S/HTR | 20A | Seat warmer |
| A/CON SW | 10A | A/C control module (Manual A/C) |
| START | 10A | Burglar alarm relay, Transaxle range switch, lgnition lock switch |
| IG-SW | 30A | Ignition switch |
| ROOM LP | 10A | Room lamp, A/C control module, Digital clock, ETACM/TACM Key remind switch |
| AMP | 20A | Audio |
| T/SIG | 10A | Hazard switch, Auto light & Photo sensor, Transaxle range switch |
| A/BAG IND | 10A | Instrument cluster |
| RR WIPER | 15A | Safety relay |
| A/CON | 10A | Sunroof controller, A/C control module, Blower relay, ETACM/TACM |
| IGN | 10A | PTC heater relay, Fuel filter heater relay, DRL CONTROL MODULE, head LAMP RELAY |
| HAZARD | 10A | Hazard switch, Hazard relay, Immobilizer control module (2.7 GSL) |
| S/ROOF | 20A | Sunroof, Door lock/unlock relay |
| STOP | 15A | Stop lamp switch, Power outside mirror folding module |
| H/FREE | 10A | (Not used) |
| ECU | 10A | Cruise control, Stop lamp, TCS, ESP, 4WD ECM, ECM, PCM, TCM, Vehicle speed sensor |
| FF WIPER | 20A | Front wiper, Multifunction switch |
| 4WD | 20A | 4WD/ECM |
| DEICER | 15A | Winshield defogger |
| TCU | 10A | TCM (2.7 GSL/DSL) |
| ABS | 10A | G-Sensor, ESP, ABS |
Engine compartment fuse box:
| Fuse/Relay | Rating | Functions |
| IGN | 30A | Start relay, lgition switch |
| ECU | 30A | Engine control, Fuel pump , A/C, Generator, ATM |
| BATT #1 | 50A | Ignition switch, Power connector |
| C/FAN | 50A | Cooling fan |
| ABS #1 | 30A | ABS, ESP |
| ABS #2 | 40A | ABS, ESP |
| BLOWER | 30A | Blower |
| BATT #2 | 30A | Igition switch, Power connector |
| INJ | 15A | Injector |
| SNSR | 10A | Cooling fan, Stop lamp switch, Oxygen sensor, ECM/PCM |
| DRL | 15A | DRL |
| F/FOG | 15A | Front fog lamp |
| HORN | 15A | Horn, Siren |
| A/CON | 15A | A/C |
| H/LP (HI) | 15A | Head lamp (HIGH) |
| H/LP (LOW) | 15A | Head lamp (LOW) |
