Hyundai Sonata 2010 Fuse Box Info

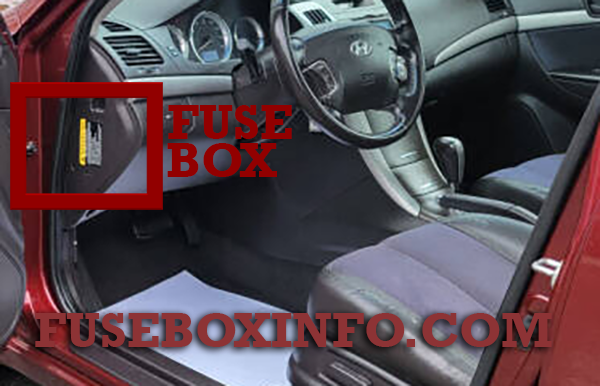

Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the driver side of the instrument panel.

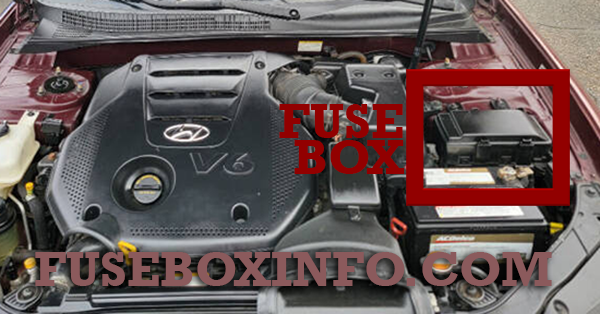

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay | Rating | Functions |
| SPARE | 15A | (Spare) |
| SPARE | 15A | (Spare) |
| ETACS | 10A | BCM(Body Control Module), Sunroof control module, Electronic chrome mirror, Rheostat |
| ESC | 10A | ESC module, Blower relay |
| C/LIGHTER | 20A | Cigarette lighter |
| SPARE | 15A | (Spare) |
| TAIL RH | 10A | Illumination lights, Right: License light (LH, RH), Rear combination light, Headlight, Glove box light |
| TAIL LH | 10A | Front fog light relay, Left: Rear combination light, Headlight |
| IONIZER | 10A | (Spare) |
| H/LP | 10A | DRL control module, Headlight relay, AQS and ambient sensor |
| WIPER | 25A | Wiper and washer |
| A/CON | 10A | A/C control module |
| A/BAG | 15A | SRS control module, Passenger's Airbag switch |
| P/OUTLET | 20A | Front accessory socket, Rear power outlet |
| D/CLOCK | 10A | Digital clock, Audio, A/T shift lock control module, Power outside mirror and mirror folding, BCM |
| SAFETY PWR | 25A | Safety window module |
| ECS | 15A | (Spare) |
| ATM KEY LOCK | 10A | A/T shift lock control module |
| P/WDW RR LH | 25A | Power window main switch, Left rear power window switch |
| P/WDW RH | 30A | Power window main switch, Right power window switch |
| P/AMP | 20A | Audio amp |
| DR LOCK | 20A | Door lock/unlock relay |
| HAZARD | 10A | Hazard relay |
| P/SEAT RH | 30A | Power seat manual switch(RHD) |
| A/BAG IND | 10A | Instrument cluster |
| T/SIG | 10A | Turn signal light |
| CLUSTER | 10A | BCM(Body Control Module), Instrument cluster, Yaw rate sensor, ESP switch, Seat warmer |
| AGCS | 10A | (Spare) |
| START | 10A | Start relay |
| PEDAL ADJ | 15A | (Spare) |
| ECS/RR FOG | 15A | Rear fog light relay |
| T/LID OPEN | 15A | Trunk lid relay, Fuel filler door and trunk lid switch |
| S/HTR | 15A | Seat warmer switch |
| P/SEAT LH | 30A | Power seat manual switch |
| SPORT MODE | 10A | Sport mode switch, Key solenoid |
| MIRR HTD | 10A | A/C control module, Outside mirror and mirror folding motor |
| POWER CONNECTOR. 1 | 15A | Audio |
| POWER CONNECTOR. 2 | 15A | BCM(Body Control Module), Digital clock, Instrument cluster, A/C control module, Courtesy lights, Interior light |
Engine compartment fuse box:
| Fuse/Relay | Rating | Functions |
| ABS.1 | 40A | ABS/ESC control module, Multipurpose check connector |
| ABS.2 | 20A | ABS/ESC control module, Multipurpose check connector |
| I/P B+1 | 40A | Fuse 23, 24, 30, 31, 32, 33, 34, 35 |
| RR HTD | 40A | Defogger relay |
| BLOWER | 40A | Blower relay |
| P/WDW | 40A | Power window relay, Fuse 16 |
| IGN.2 | 40A | Start relay, Ignition switch (IG2, START) |
| ECU RLY | 30A | Engine control unit relay |
| I/P B+2 | 30A | Power connector 1/2, Fuse 21,22 |
| IGN.1 | 30A | Ignition switch (ACC, IG1) |
| ALT | 150A | Fusible Iink (ABS. 1, ABS. 2, RR HTD, BLOWER) |
| MDPS | 100A | (Spare) |
| 1. HORN | 15A | Horn relay |
| 2. TAIL | 20A | Tail light relay |
| 3. ECU | 10A | PCM |
| 4. IG1 | 10A | (Spare) |
| 5. DRL | 15A | Siren relay, DRL control module |
| 6. FR FOG | 15A | Front fog light relay |
| 7. A/CON | 10A | A/C relay |
| 8. F/PUMP | 20A | Fuel pump relay |
| 9. DIODE | - | (Spare) |
| 10. ATM | 20A | ATM control relay |
| 11. STOP | 15A | Stop light relay |
| 12. H/LP LO RH | 15A | (Spare) |
| 13. S/ROOF | 15A | Sunroof control module |
| 14. H/LP WASHER | 20A | Headlight washer motor |
| 15. H/LP HI | 20A | Headlight relay (High) |
| 16. ECU | 10A | TCM |
| 17. SNSR.3 | 10A | A/C relay, Cooling fan relay, Injectors |
| 18. SNSR.1 | 15A | Mass air flow sensor, Crankshaft/Camshaft position sensor, Oil control valve, SMATRA |
| 19. SNSR.2 | 15A | Oxygen sensor, Fuel pump relay |
| 20. B/UP | 10A | Back up light switch, Pulse generator, Vehicle speed sensor |
| 21. IGN COIL | 20A | Ignition coils, Condenser |
| 22. ECU (IG1) | 10A | PCM |
| 23. H/LP LO | 20A | Headlight relay (Low) |
| 24. ABS | 10A | ABS/ESC control module, Multipurpose check connector |
