Hyundai Azera 2013 Fuse Box Info

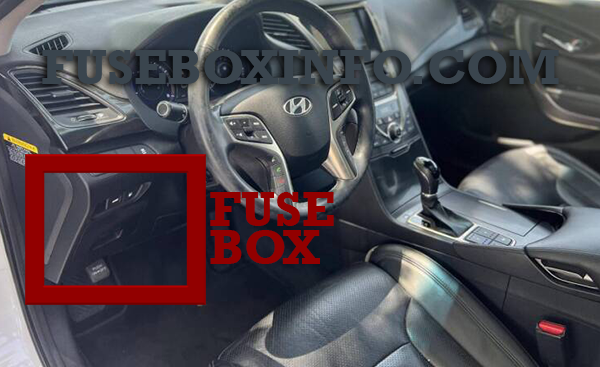

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

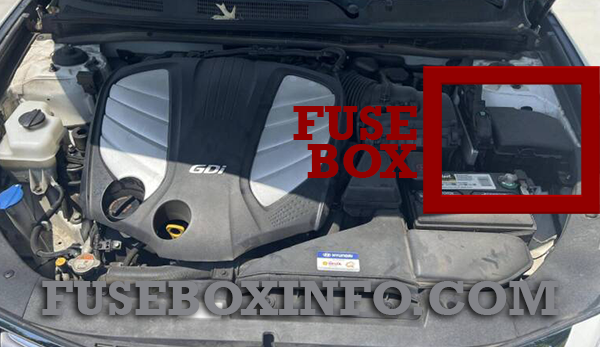

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Immobilizer Module, Smart Key Control Module |
| 2 | 7.5A | Instrument Cluster |
| 3 | 20A | - |
| 4 | 10A | AMP, MAP Lamp, Front Monitor, E/R Fuse & Relay Box (RLY.13), A/V & Navigation Head Unit, Smart Key Control Module, Audio |
| 5 | 7.5A | ABS/ESP Control Module, Steering Angle Sensor, Rear Seat Warmer LH/RH, A/C Control Module, Active Incar Sensor, Driver IMS Module, Front/Rear Parking Assist, Sensor LH/RH/LH (Center)/RH (Center) |
| 6 | 10A | Console Switch LH, Driver/Passenger Seat Warmer Module, Driver/Passenger Door Module, Stop Lamp Switch, Driver/Passenger CCS Control Module, Smart Cruise Control Radar, E/R Fuse & Relay Box(RLY. 6), Instrument Cluster, Crash Pad Switch, Multifunction Switch, Head Lamp Leveling Device Actuator LH/RH, Auto Head Lamp Leveling Device Module, Electronic Parking Brake Module, Electro Chromic Mirror, ATM Lever Indicator, Tire Pressure Monitoring Module, Steering Tilt&Telescopic Module |
| 7 | 10A | Driver/Passenger Power Outside Mirror, A/C Control Module |
| 9 | 20A | Center Tray Outlet, Rear Power Outlet #2 |
| 10 | 15A | SRS Control Module, A/C Control Module |
| 11 | 7.5A | Panorama Sunroof, Instrument Cluster, Rain Sensor, Smart Key Control Module, ICM Relay Box (Head Lamp Washer Relay), Rear Seat Warmer LH/RH |
| 12 | 7.5A | A/C Control Module, E/R Fuse & Relay (RLY.14), Cluster Ionizer, Driver/Passenger Seat Warmer Module, Driver/Passenger CCS Control Module |
| 13 | 10A | Steering Wheel Heater |
| 14 | 20A | E/R Fuse & Relay Box (F11, F12, F13) |
| 15 | 20A | - |
| 16 | 10A | Data Link Connector, A/C Control Module, Driver/Passenger Door Module, Instrument Cluster, Tire Pressure Monitoring Module, Auto Light & Photo Sensor |
| 17 | 10A | Cup Holder Lamp, Rear Door Lamp LH/RH, MAP Lamp, Driver/Passenger Door Mood Lamp, Driver/Passenger Door Lamp, Driver/Passenger Foot Lamp, Driver/Passenger Door Scuff Lamp, Rear Door Mood Lamp LH/RH, Vanity Lamp Switch LH/RH, Rear Door Scuff Lamp LH/RH, Trunk Room Lamp, Center Tray Lamp, Garnish Lamp LH/RH, Rear Personal Lamp Center/LH/RH |
| 18 | 25A | Wiper Motor, E/R Fuse & Relay Box (RLY. 8, RLY. 11, RLY. 12) |
| 19 | 10A | Immobilizer Module, Smart Key Control Module, Stop Lamp Switch, Start Stop Button Switch |
| 20 | 15A | ICM Relay Box (Rear Fog Lamp Relay) |
| 21 | 7.5A | RF Receiver |
| 22 | 10A | Front Monitor, Audio, A/V & Navigation Head Unit |
| 23 | 7.5A | Transaxle Range Switch, PCM, ICM Relay Box (Burglar Alarm Relay) |
| 24 | 20A | Power Seat Relay Box RH, Passenger Reclining Limit Switch |
| 25 | 20A | Panorama Sunroof |
| 26 | 10A | Trunk Lid Relay, Fuel Filler Door & Trunk Lid Switch |
| 27 | 20A | Rear Seat Warmer LH/RH |
| 28 | 10A | Driver Massage Module |
| 29 | 25A | Driver Safety Window Module, Rear Power Window Switch LH |
| 30 | 25A | AMP |
| 31 | 25A | - |
| 32 | 25A | Passenger Safety Window Module, Rear Power Window Switch RH |
| 33 | 25A | - |
| 34 | 25A | Smart Key Control Module |
| 35 | 15A | Key Solenoid, Sport Mode Switch, Steering Tilt & Telescopic Module |
| 36 | 20A | Driver/Passenger Seat Warmer Module, Driver/Passenger CCS Control Module |
| 37 | 20A | Door Lock/Unlock Relay |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 60A | Smart Junction Box (Fuse - F20/F25/F28/F35, IPS 1, IPS 2, ARISU-LT 1) |
| 2 | 60A | Smart Junction Box (Fuse - F26/F29/F32/F36) |
| 3 | 40A | W/O Smart Key - Ignition Switch With Smart Key - RLY. 2 (PDM 1 (ACC) Relay), LY. 9 (PDM 2 (IG1) Relay) |
| 4 | 40A | ESP Control Module, ABS Control Module |
| 5 | 40A | RLY. 1 (RR HTD Relay) |
| 6 | 40A | RLY. 14 (Blower Relay) |
| 7 | 60A | Smart Junction Box (Fuse - F19/F24/F27/F30, IPS 3, IPS 4, ARISU-LT 2) |
| 8 | 80A | - |
| 9 | 10A | A/C Control Module |
| 10 | 10A | Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror , A/V & Navigation Head Unit |
| 11 | 15A | Transaxle Range Switch |
| 12 | 10A | PCM |
| 13 | 10A | Multipurpose Check Connector |
| 14 | 25A | - |
| 15 | 30A | Electronic Parking Brake Module |
| 16 | 40A | RLY. 5 (S tart Relay), W/O Smart Key - Ignition Switch, With Smart Key - RLY. 10 (PDM 3 (IG2) Relay) |
| 17 | 30A | Electronic Parking Brake Module |
| 18 | 40A | EMS Box (Fuse - F36 / F37 / F38 / F39) |
| 19 | 40A | ESP Control Module, ABS Control Module |
| 20 | 50A | RLY. 3 (C/F an (HI) Relay), RLY. 4 (C/F an (LO) Relay) |
| 22 | 20A | Multipurpose Check Connector |
| 23 | 25A | RLY. 13 (P/Outlet Relay) |
| 24 | 10A | Battery Sensor |
| 25 | 10A | Smart Cruise Control Radar |
| 26 | 15A | RLY. 6 (Stop LP Relay), Stop Signal Relay |
| 27 | 20A | RLY. 7 (Deicer Relay) |
| 28 | 20A | ICM Relay Box (Head Lamp Washer Relay) |
| 29 | 30A | Driver Lumbar Support Limit Switch (W/O Massage), Driver IMS Module, Power Seat Relay Box LH, Driver Reclining Limit Switch |
| 30 | 40A | Smart Junction Box (Fuse - F37/F34, Leak Current Autocut Device (Leak Current Autocut Relay, Leak Current Autocut Switch, IPS 5)), E/R Fuse & Relay Box (Fuse - F22) |
| Engine compartment fuse box (2.4L) | ||
| 31 | 20A | Ignition Coil #1~#4, Condenser |
| 32 | 10A | Camshaft Position Sensor #1/#2, Oil Control Valve #1/#2, E/R Fuse & Relay Box ( LY. 3 : C/FAN (HI) Relay) |
| 33 | 10A | - |
| 34 | 10A | EMS Box (RLY. 1 : Fuel Pump Relay), Injector #1~#4 |
| 35 | 15A | Crankshaft Position Sensor, Oxygen Sensor(UP/DOWN), Purge Control Solenoid Valve, PCM, Variable Intake Solenoid Valve |
| 36 | 15A | PCM |
| 37 | 20A | EMS Box (RLY. 1 : Fuel Pump Relay) |
| 38 | 15A | EMS Box (RLY. 2 : Horn Relay), ICM Relay Box (Burglar Horn Relay) |
| 39 | 30A | EMS Box (RLY. 3 : Engine Control Relay) |
| Engine compartment fuse box (3.0L) | ||
| 31 | 20A | Ignition Coil #1~#6, Condenser #1/#2 |
| 32 | 10A | Camshaft Position Sensor #1~#4, E/R Fuse & Relay Box (RLY. 3 : C/FAN (HI) Relay) |
| 33 | 10A | - |
| 34 | 10A | EMS Box (RLY. 1 : Fuel Pump Relay), Injector #1 ~ #6 |
| 35 | 15A | Oxygen Sensor #1~#4, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Oil Control Valve #1~#4, PCM |
| 36 | 15A | PCM |
| 37 | 20A | EMS Box (RLY. 1 : Fuel Pump Relay) |
| 38 | 15A | EMS Box (RLY. 2 : Horn Relay), ICM Relay Box(Burglar Horn Relay) |
| 39 | 30A | EMS Box (RLY. 3 : Engine Control Relay) |
