Hyundai Azera 2010 Fuse Box Info

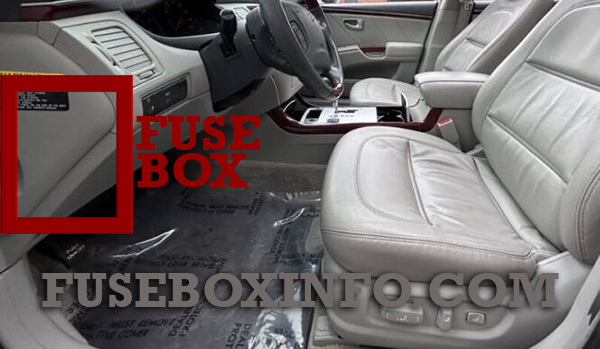

Passenger compartment fuse box location:
The instrument panel fuse box is located in the end of the driver side of the instrument panel.

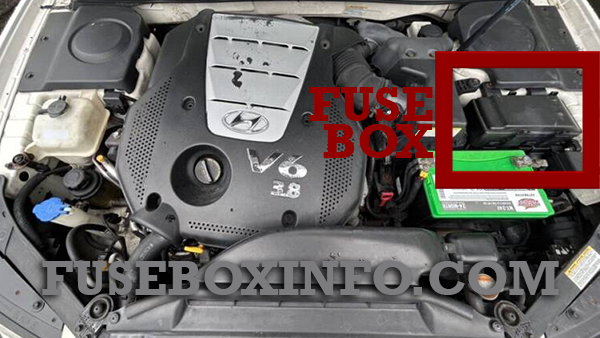

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| T/LID | 20A | Fuel lid opener & Trunk lid switch |
| FR P/SEAT | 30A | Front lumbar support switch, IMS Control module, Driver/Passenger seat manual switch |
| AUDIO-2 | 10A | ATM Key lock control module, Audio, IMS Switch, Accessory relay, Seat/Power outlet relay, Digital clock & Passenger seat belt IND. |
| AUDIO-1 | 15A | Audio |
| START | 10A | Transaxle range switch, Burglar alarm relay |
| P/WDW LH | 30A | Left front safety window module, Left rear power window switch |
| P/WDW RH | 30A | Right front safety window module, Right rear power window switch |
| RR P/SEAT | 30A | Right rear ICM relay box |
| MODULE-1 | 10A | Instrument cluster, BCM, Rear curtain module, Rain sensor, IMS Control module, Power window main switch |
| PEDAL ADJ | 15A | Back warning buzzer |
| MIRR HTD | 10A | Left/Right outside mirror & mirror folding motor, A/C Control module |
| KEY SOL | 20A | Key solenoid, Power window main switch |
| RR FOG | 15A | Rear fog light relay |
| A/BAG IND | 10A | Instrument cluster |
| A/BAG | 15A | Air bag cut off switch, SRS Control module |
| TILT | 15A | Tilt & Telescopic module, Sport mode switch |
| TAIL LH | 10A | Front fog light relay, Left rear combination light, License plate light, Left headlight |
| TAIL RH | 10A | Right rear combination light, License plate light, Right headlight |
| S/HTR | 10A | Driver seat warmer switch |
| MODULE-2 | 10A | Instrument cluster, ESC Switch, BCM, ATM Key lock control module, YAW Rate sensor, Multi-function switch |
| A/CON | 10A | A/C Control module, Tilt & Telescopic module, Rheostat, Electric chromic mirror, Overhead console lamp |
| DIESEL | 10A | Spare |
| C/LIGHTER | 15A | Cigarette lighter |
| T/SIG | 15A | BCM |
| RR CURTAIN | 10A | Rear curtain module |
| H/LP | 10A | Headlight relay, AQS & Ambient sensor, HID relay, Headlight leveling actuator |
| A/CON SW | 10A | A/C Control module, Blower relay, A/C Control module (AUTO) |
| MEMORY | 15A | Data link connector, A/C Control module, Instrument cluster, Multi-function switch, Tilt & Telescopic module, BCM, Door warning switch, Room lamp, Left/Right foot lamp, Door lamp |
| PIC | 15A | Spare |
| ACC SOCKET | 15A | Rear power outlet |
| WIPER | 25A | Washer relay, Wiper relay (High), Wiper relay |
| POWER CONN | 30A | Fuse (MEMORY, AUDIO-1) |
Engine compartment fuse box:
| Fuse/Relay | Rating | Functions |
| ABS1 | 40A | ABS/ESC Control module, Multipurpose check connector |
| ABS2 | 20A | ABS/ESC Control module, Multipurpose check connector |
| I/P (B+)1 | 40A | Fuse (FR P/SEAT, T/LID, T/SIG, TILT, PEDAL, RR CURTAIN) |
| RR HTD | 40A | Defogger relay |
| BLOWER | 40A | Blower relay |
| P/WDW | 40A | Fuse (P/WDW LH, P/WDW RH) |
| IGN2 | 40A | Start relay, Ignition switch (IG2, START) |
| ECU RLY | 30A | Engine control unit relay |
| I/P (B+)2 | 30A | Fuse (KEY SOL, ECS/RR FOG), Power connector |
| IGN1 | 30A | Ignition switch (ACC, IG1) |
| ALT | 150A | Fusible link (ABS1, ABS2, RR HTD, BLOWER) |
| 1. HORN | 15A | Horn relay |
| 2. TAIL | 20A | Tail light relay |
| 3. ECU | 10A | PCM |
| 4. IG1 | 10A | Spare |
| 5. DRL | 15A | Burglar alarm horn relay |
| 6. FR FOG | 15A | Front fog light relay |
| 7. A/CON | 10A | A/C Relay |
| 8. F/PUMP | 20A | Fuel pump relay |
| 9. DIODE | - | Spare |
| 10. ATM | 20A | ATM Control relay |
| 11. STOP | 15A | Stop light switch |
| 12. H/LP LO RH | 15A | HID Relay |
| 13. S/ROOF | 15A | Overhead console lamp |
| 14. H/LP WASHER | 20A | Headlight washer motor |
| 15. H/LP HI | 20A | Headlight relay (HIGH) |
| 16. ECU (B+) | 10A | PCM |
| 17. SNSR3 | 10A | Injector#1~#6, A/C Relay, Cooling fan relay |
| 18. SNSR1 | 15A | Mass air flow sensor, PCM, Immobilizer control module, Oil control valve#1/#2, Variable intake manifold valve |
| 19. SNSR2 | 15A | Oxygen Sensor#1~#4 |
| 20. B/UP | 10A | Back-up light switch, Stop light switch, Transaxle range switch, Vehicle speed sensor |
| 21. IGN COIL | 20A | Ignition coil#1~#6, Condenser |
| 22. ECU (IG1) | 10A | PCM |
| 23. H/LP LO | 20A | Headlight relay (LOW) |
| 24. ABS | 10A | ABS/ESC Control module, Multipurpose check connector |
