Hyundai Equus 2015 Fuse Box Info
Passenger compartment fuse box location:

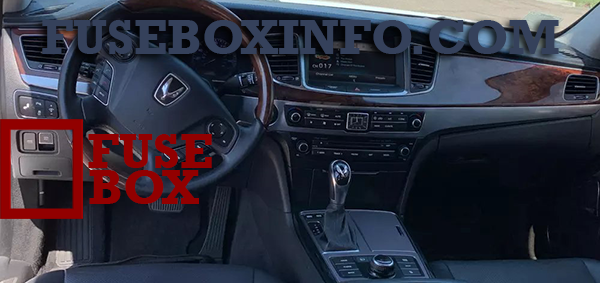

The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

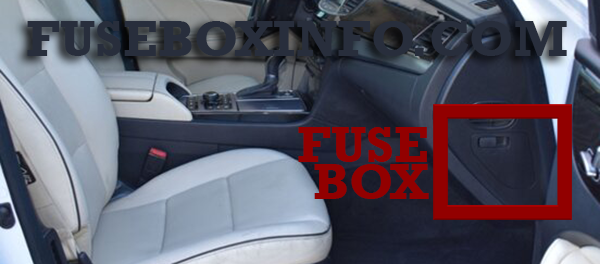

The fuse box is located on the right hand side of the instrument panel facing the passenger’s side door.

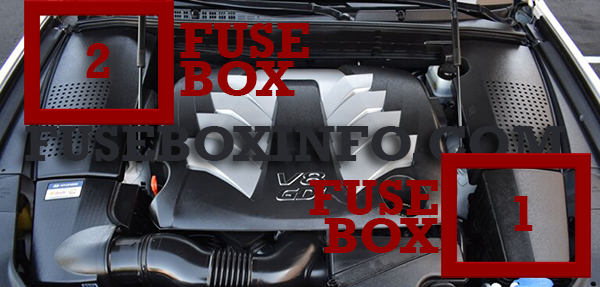

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Driver’s side):
| Fuse/Relay Name | Rating | Functions |
| PDM (B+) | 25A | Smart Key Control Module |
| HAZARD | 10A | Center Facia Switch |
| EPB | 10A | Electric Parking Brake Switch, Crash Pad Switch |
| RF RECEIVER | 10A | RF Receiver, Security Indicator |
| PDM (IG1) | 10A | Smart Key Control Module |
| SHIFT LEVER (IG1) | 10A | ATM Shift Lever IND. |
| A/BAG IND. | 10A | Instrument Cluster |
| SMART KEY | 10A | Start/Stop Button Switch |
| P/HANDLE | 10A | Steering Tilt & Telescopic Module |
| MEMORY | 10A | Power Trunk Lid Control Module, Relax Module Driver/Passenger Door Module, Rear Door Module LH/RH, Passenger Door Lamp, Passenger Door Mood Lamp, Rear Door Lamp LH/RH, Rear Door Mood Lamp LH/RH Instrument Cluster, Driver IMS Control Module, BCM, Analogue Clock, LCD Panel Switch, A/C Control Module, Data Link Connector |
| TPMS | 10A | Tire Pressure Monitoring Module |
| ACTIVE H/REST | 10A | Active Head Rest Sensor Module |
| CLUSTER | 10A | Instrument Cluster, Head-Up Display |
| STOP LAMP | 10A | Stop Lamp Switch, Smart Key Control Module |
| SHIFT LEVER (B+) | 10A | Sport Mode Switch |
| MULTI MEDIA | 15A | A/V & Navigation Head Unit, Front Monitor, Split Unit, MTS Module, Front DIS Switch, Rear Monitor LH/RH, Rear Console Switch, Rear Audio Switch |
| BCM | 10A | BCM |
| IG1 | 30A | E/R Junction Box (Fuse - B/UP LAMP, ESC, EHPS, AFLS, INJECTOR (IG1), CRUISE (IG1), ECU (IG1), TCU) |
| 1 MODULE | 10A | Head-Up Display, Rain Sensor, Rear Power Seat Switch LH |
| F/LID | 10A | Fuel Filler Door Switch, Front Console Switch |
| FOLD'G MIRR | 10A | Driver/Passenger Door Module |
| A/BAG | 15A | SRS Control Module, Driver/Passenger Pre-Safe Seat Belt, Center Facia Switch, PODS Module |
| 4 MODULE | 10A | E/R Junction Box (FAM), Multifunction Switch Driver/Passenger Door Module |
| ECS | 15A | ECS Control Module |
| AUDIO (IG1) | 10A | A/V & Navigation Head Unit, MTS Module |
| AFLS | 10A | Head Lamp LH/RH, Adaptive Front Lighting Module |
| O/S HDL DRV | 15A | Driver Power Door Latch, Driver Power Seat Switch, Driver Door Lamp, Driver Door Mood Lamp, Driver Smart Key Outside Handle |
| S/HEATER RR | 15A | Rear CCS Control Module LH, Rear Seat Warmer Module LH |
| 2 MODULE | 10A | Power Trunk Lid Control Module, Electro Chromic Mirror, A/T Console Switch |
| A/CON | 10A | A/C Control Module, AQS Sensor, Driver IMS Control Module Relax Module, Driver/Passenger CCS Control Module Driver/Passenger Seat Warmer Module, Rear CCS Control, Module LH/RH, Rear Seat Warmer Module LH/RH, Alternator Resistor (Alternator, Instrument Cluster, USB Jack, Rear Console Switch) |
| O/S HDL RR | 15A | Rear Power Door Latch LH, Rear Door Window Curtain LH, Rear Smart Key Outside Handle LH |
| 3 MODULE | 10A | ECS Control Module, Front Console Switch, Crash Pad Switch, Blind Spot Detection Radar LH/RH Tire Pressure Monitoring Module, Stop Lamp Switch, Steering Tilt & Telescopic Module, LDWS Camera Module Electric Parking Brake Module, Front/Rear Parking Assist Sensor LH/RH Front/Rear Parking Assist Sensor LH/RH (Center) |
| DR LOCK DRV | 10A | Driver Door Module |
| S/HEATER DRV | 15A | Driver CCS Control Module, Driver Seat Warmer Module |
| DR LOCK PASS | 15A | Passenger Door Module |
| P/TRUNK | 30A | Power Trunk Lid Control Module |
| P/SEAT PASS | 30A | Relax Module |
| RH SAFETY POWER WINDOW | 30A | Passenger Power Window Module, Rear Power Window Module RH |
| LH SAFETY POWER WINDOW | 30A | Driver Power Window Module, Rear Power Window Module LH |
Passenger compartment fuse box (Passenger’s side):
| Fuse/Relay Name | Rating | Functions |
| USB CHARGE | 10A | USB Jack |
| IG2 | 30A | E/R Junction Box Fuse (ECW 10A, WASHER 15A) |
| A/CON | 10A | E/R Junction Box (Blower Relay), A/C Control Module, Cluster Ion Gen, LCD Panel Switch |
| MODULE | 10A | Around View Module, Camera Module, Instrument panel LH(Instrument Cluster, Sunroof Module, Head-Up Display |
| P/SEAT RR | 20A | Rear LH Power Seat Relay Box |
| E-SHIFTER | 10A | USB Jack |
| PDM(ACC) | 10A | BCM, Smart Key Control Module |
| SUNROOF | 20A | Sunroof Module,Sunroof Switch |
| PDM (IG2) | 10A | BCM, Smart Key Control Module |
| POWER OUTLET RR | 20A | Rear Power Outlet (5:5 Seat),Rear Console Lamp(5:5 Seat), Rear Power Outlet #1/#2(6:4 Seat) |
| INTERIOR LAMP | 10A | E/R Junction Box (Power Outlet Relay FR), Front Room Lamp |
| O/S HDL RR | 15A | Rear Power Door Latch RH, Rear Door Curtain RH, Rear Smart Key Outside Handle RH |
| AUDIO | 10A | Analogue Clock, Split Unit, Front Monitor, Around View Module, Camera Module, MTS Module, Front DIS Switch, AMP, Rear Monitor LH/RH, Rear Audio Switch, Rear Console Switch |
| LEG SUPPORT RR | 15A | Rear RH Power Seat Relay Box |
| S/HEATER PASS | 15A | Passenger CCS Control Module, Passenger Seat Warmer Module (W/O CCS) |
| HTD STRG | 15A | Steering Wheel Heated |
| ICE BOX | 15A | Cool box |
| O/S HDL PASS | 15A | Passenger Power Door Latch,Passenger Power Seat Switch, Passenger Smart Key Outside Handle RH |
| S/HEATER RR | 15A | Rear CCS Control Module RH, Rear Seat Warmer Module RH (W/O CCS) |
Engine compartment fuse box (Main fuse box):
| Fuse/Relay Name | Rating | Functions |
| WIPER (B+) | 30A | Electronic Control Wiper Module |
| FAM 2 (B+) | 40A | FAM |
| FAM 1 (B+) | 40A | FAM |
| START | 30A | Start Relay |
| WASHER | 15A | Washer Relay |
| WIPER (IG2) | 10A | Electronic Control Wiper Module |
| DEICER | 15A | Deicer Relay |
| CRUISE (B+) | 10A | H/Lamp Relay, Smart Cruise Control Module |
| HORN | 15A | Horn Relay |
| EPB 2 | 15A | Electric Parking Brake Module |
| EPB 1 | 15A | Electric Parking Brake Module |
| A/CON | 10A | A/C Control Module |
| BLOWER | 40A | Blower Relay |
| PRESAFETY SEAT BELT LH | 40A | Driver Pre-Safe Seat Belt |
| RR HTD | 40A | RR HTD Relay |
| PRESAFETY SEAT BELT RH | 40A | Passenger Pre-Safe Seat Belt |
| ECU (IG1) | 10A | ECM, Alternator |
| ESC | 10A | ESC Module, E/R Fuse & Relay Box (Multipurpose Check Connector) |
| EHPS | 10A | EHPS Module |
| AFLS | 10A | Head Lamp LH/RH |
| TCU | 15A | TCM, Transmission Range Switch |
| HTD MIRR | 10A | Driver/Passenger Power Outside Mirror |
| F/PUMP | 20A | F/Pump Relay |
| ROOM LAMP | 10A | Room Lamp Relay |
| ECU (B+) | 15A | ECM, TCM |
| B/UP LAMP | 10A | Steering Angle Sensor, B/UP LP RLY’ S’ |
| CRUISE (IG1) | 10A | Smart Cruise Control Module |
| INJECTOR (IG1 | 10A | Injector Drive Box |
| H/LAMP LH | 15A | Head Lamp LH |
| H/LAMP RH | 15A | Head Lamp RH |
| 3 SENSOR | 10A | ECM, F/Pump Relay, Camshaft Position Sensor (BANK1/BANK2) (Intake/Exhaust) |
| 2 SENSOR | 10A | Canister Close Valve, Oil Control Valve #1 ~ #4, E/R Fuse & Relay Box (C/Fan Relay), Purge Control Solenoid Valve |
| 1 SENSOR | 10A | ECM, Oxygen Sensor #1 ~ #4 |
| INJECTOR (B+) | 15A | Injector Drive Box |
| IGN COIL | 20A | Condenser #1/#2, Ignition Coil #1 ~ #8 |
| ECU | 30A | ECU Relay |
Engine compartment fuse box (Sub fuse box):
| Fuse/Relay Name | Rating | Functions |
| ALT | 200A | Alternator, E/R Fuse & Relay Box (Fuse - I/P POWER RH, EHPS, C/FAN, PDM (ACC), ECS, TRUNK, AMP, POWER OUTLET FRT) |
| I/P POWER LH | 80A | Smart Junction Box LH (Fuse - PDM (B+), HAZARD, EPB, RF RECEIVER, SMART KEY, P/HANDLE, TPMS, STOP LAMP, SHIFT LEVER (B+), P/SEAT PASS, RH SAFETY POWER WINDOW, MULTI MEDIA, LH SAFETY POWER WINDOW, 1 MODULE, F/LID, ECS, O/S HDL DRV, S/HEATER RR, O/S HDL RR, DR LOCK DRV, S/HEATER DRV, DR LOCK PASS, P/TRUNK, Leak Current Autocut Device) |
| I/P POWER RH | 60A | I/P Junction Box RH (Fuse - USB CHARGE, P/SEAT RR, SUNROOF, O/S HDL RR, LEG SUPPORT RR, S/HEATER PASS, O/S HDL PASS, S/HEATER RR) |
| C/FAN | 70A | C/FAN Relay |
| EHPS | 80A | EHPS Module |
| ESC 1 | 40A | ESC Module, Multipurpose Check Connector |
| ESC 2 | 40A | ESC Module, Multipurpose Check Connector |
| PDM (IG1) | 40A | PDM (IG1) Relay |
| PDM (IG2) | 30A | PDM (IG2) Relay |
| P/SEAT (DRV) | 30A | Driver IMS Control Module, Driver Lumbar Support Valve |
| ECS | 40A | ECS Relay |
| AMP | 30A | AMP |
| PDM (ACC) | 30A | PDM (ACC) Relay |
| STOP LAMP | 15A | Stop Signal Electronic Module |
| B/UP LAMP | 10A | B/UP LAMP Relay |
| POWER OUTLET FRT | 25A | POWER OUTLET FRT Relay |
| TRUNK | 10A | TRUNK Relay |
