Hyundai Equus 2010 Fuse Box Info
Passenger compartment fuse box location:

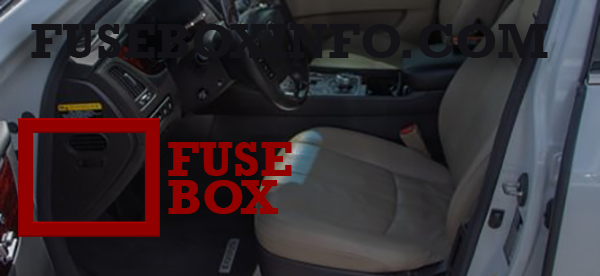

The fuse box is located on the left hand side of the instrument panel facing the driver’s side door.

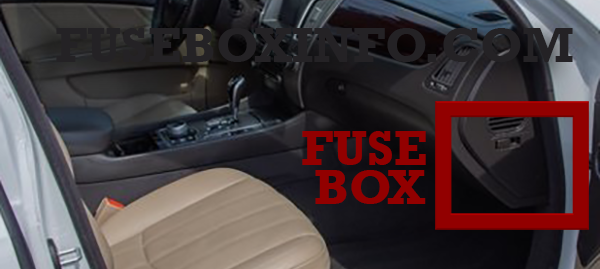

The fuse box is located on the right hand side of the instrument panel facing the passenger’s side door.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Driver’s side):
| Fuse/Relay Name | Rating | Functions |
| AUDIO (IG1) | 10A | AV H/UNIT,MTS UNIT,SBR IND,ACTIVE HEAD REST SNSR, AVN LOW |
| A/BAG | 15A | SRS Control Module,TELLTAIL, PODS Module |
| BODY UNIT-2 | 10A | FAM, Multifunction Switch, Tilt & Telescopic Module, Instrument Cluster, Driver Door Module, Passenger Door Module, IMS Control Module, Rear Curtain Module |
| A/BAG IND | 10A | Instrument Cluster |
| IG KEY SUPPLY | 30A | E/R Junction Box Fuse (INHIBITOR SW 10A, ECU-2 10A, EHPS 10A, CRUISE 10A, TCU 15A, ESP 10A, STOP LP 10, AFLS 10A) |
| CLUSTER | 10A | Instrument Cluster |
| CHASSIS UNIT | 10A | Air Suspension Switch,ECS SW,Tire Pressure Monitoring Module, Presafety Seat Belt LH,RH |
| AUDIO(B+) | 15A | Audio, Front Monitor,AV Head Module, Media Module (With AV) |
| BODY UNIT-1 | 10A | FAM, IPM, Tilt & Telescopic Module, PDM, Driver Door Module, Passenger Door Module, IMS Control Module, Multifunction Switch, Electronic Parking Brake Module, Forward & Rear Parking Assist Control Module |
| AFLS | 10A | Auto Head Lamp Leveling Device Sensor, Adaptive Front Lighting Module, Head Lamp LH, Head Lamp RH |
| ESCL-2 | 10A | IPM,PDM |
| A/CON(IG1) | 10A | A/C Control Module |
| CRUISE SW | 10A | Crash Pad Switch, A/C Control Module |
| A/CON(B+) | 10A | A/C Control Module,RF RECEIVER,A/CLOCK,Auto Light Sensor & Security Indicator |
| S/HTD ECU(FL) | 15A | Driver CCS Control Module, Driver Seat Warmer Module (W/O CCS) |
| P/HANDLE | 15A | Tilt & Telescopic Module |
| ESCL-1 | 10A | PDM |
| DR LOCK(LH) | 10A | Door Lock Actuator LH |
| KEY ILLUMINATION | 10A | Start Stop Button Switch,FOB Holder |
| S/HTD ECU(RL) | 15A | RR-LH CCS Control Module, RR-LH Seat Warmer Module (W/O CCS) |
| P/TRUNK | 30A | Power Trunk Lid Motor |
| DR LOCK(RH) | 15A | Door Lock Actuator Passenger, RR-LH, RR-RH |
| RR DOOR MDL | 10A | Data Link Connector, RR-LH Door Module, RR-RH Door Module |
| P/DOOR (FL) | 15A | POWER DR LATCH FL, DR EXTN FL B+ |
| P/DOOR (RL) | 15A | POWER DR LCATCH RL, DR CURTAIN RL |
| ESCL SW | 10A | Start Stop Button Switch, FOB Holder |
| F/LID OPEN | 10A | Fuel Filler Door Switch |
| ECS | 15A | Air Suspension Control Unit |
| RR CURTAIN MTR | 10A | Rear Curtain Module |
| P/WDW(RH) | 30A | Passenger Power Window Module, Rear RH Power window Module |
| P/WDW(LH) | 30A | Driver Power Window Module, Rear LH Power window Module |
| P/CONN | 30A | I/P Junction Box Fuse LH (BODY UNIT 2 10, A/CON 3 10A, AUDIO 2 15A) |
Passenger compartment fuse box (Passenger’s side):
| Fuse/Relay Name | Rating | Functions |
| MIRROR | 10A | Power Outside Mirror Motor LH/RH |
| CONSOLE SW | 10A | Console Switch LH/RH, RR-RH Massage unit |
| TPMS | 10A | Tire Pressure Monitoring Module, Electro Chromic Mirror |
| P/SEAT(FR)-2 | 15A | Passenger Power Seat Relay Box2 |
| IG KEY SUPPLY | 30A | E/R Junction Box Fuse (AQS 10A, WASHER 15A) |
| A/CON(IG2) | 10A | Incar Motor,Cluster Ion Gen, A/C Control Module, IPM, PDM |
| BODY UNIT | 10A | Instrument Cluster, Driver CCS Control Module, PDM, IPM, Rheostat |
| P/SEAT(RR) | 20A | RR-LH Power Seat Relay Box |
| P/OUTLET(RR) | 15A | RR ACC Socket Relay |
| A/CON(ACC) | 10A | A/C Control Module, IPM, PDM |
| S/ROOF | 20A | Sunroof Module, Sunroof Switch |
| P/SEAT(FR) | 20A | Passenger Power Seat Relay Box1 |
| ECM | 10A | Electro Chromic Mirror, Sunroof Module, Rain Sensor, Rear Curtain Module |
| P/OUTLET(FR) | 10A | ACC Socket Relay |
| P/DOOR(RR) | 15A | Power Door Latch RR-LH, Door Curtain RR |
| H/REST(FR) | 10A | Head Rest Passenger |
| AUDIO(ACC) | 10A | Audio, Camera Module, Front Monitor, Media Module, AV Head Module |
| LEG SUPPORT(RR) | 15A | RR-RH Power Seat Relay Box |
| S/HTD ECU(FR) | 15A | Passenger CCS Control Module, Passenger Seat Warmer Module (W/O CCS) |
| HTD STRG | 15A | Steering Wheel Heated |
| ICEBOX | 15A | Cool box |
| ESCL | 25A | PDM |
| P/DOOR(FR) | 15A | Passenger Power Door Latch |
| S/HTD ECU(RR) | 15A | RR-RH CCS Control Module, RR-RH Seat Warmer Module (W/O CCS) |
Engine compartment fuse box (Main fuse box):
| Fuse/Relay Name | Rating | Functions |
| PRESAFETY(RH) | 40A | Presafety Seat Belt Passenger |
| HTD GLASS(RR) | 40A | Heated Glass (RR) Relay |
| PRESAFETY(LH) | 40A | Presafety Seat Belt Driver |
| BLOWER MOTOR | 40A | Blower Relay |
| A/CON | 10A | A/C Control Module |
| EPB-1 | 15A | Electronic Parking Brake Module |
| EPB-2 | 15A | Electronic Parking Brake Module |
| HORN | 15A | Horn Relay |
| IPM | 10A | IPM |
| HTD GLASS(FR) | 15A | Heated Glass (FR) Relay |
| AQS | 10A | AQS Sensor, Electronic Control Wiper Module, Blower Relay, Head Lamp (Low) Relay |
| WASHER | 15A | Washer Relay |
| WIPER | 30A | Electronic Control Wiper Module |
| FAM POWER-2 | 40A | FAM |
| MIRROR HTD | 10A | A/C Control Module, Power Outside Mirror Motor LH/RH |
| TCU | 15A | TCM |
| AFLS | 10A | Head Lamp LH/RH |
| EHPS | 10A | EHPS Module |
| ESP | 10A | ESC Control Module, Multipurpose Check Connector |
| ECU (IG1) | 10A | ECM |
| ECU | 30A | ECM |
| IGN COIL-1 | 15A | Ignition Coil |
| IGN COIL-2 | 15A | Ignition Coil, Condenser |
| ENG SNSR-1 | 10A | ECM, Mass Air Flow Sensor (GSL 3.8L), Oxygen Sensor, Camshaft Position Sensor (GSL 4.6L) |
| ENG SNSR-2 | 10A | Canister Purge Control Solenoid Valve, Variable Intake Manifold Valve, Oil Control Valve, ECM, Cooling Fan Relay, Immobilizer Module, Canister Close Valve |
| ENG SNSR-3 | 15A | ECM (GSL 3.8L), Injector, Fuel Pump Relay |
| H/LP(LO-RH) | 15A | Head Lamp RH |
| H/LP(LO-LH) | 15A | Head Lamp LH |
| INHIBITOR SW | 15A | Transaxle Range Switch (GSL 3.8L) |
| CRUISE | 10A | Smart Cruise Control Module |
| STOP LP | 10A | Stop Lamp Switch, Stop Lamp Relay, Generator |
| ECU (B+) | 10A | ECM, TCM |
| ROOM LP | 10A | Room Lamp Relay |
| FUEL PUMP | 20A | Fuel Pump Relay |
| FAM POWER-1 | 40A | FAM |
| START | 30A | Start Relay |
Engine compartment fuse box (Sub fuse box):
| Fuse/Relay Name | Rating | Functions |
| ALT | 200A | Generator |
| ESP-1 | 30A | ESC Control Module, Multipurpose Check Connector |
| ESP-2 | 30A | ESC Control Module, Multipurpose Check Connector |
| ESCL(IGN1) | 30A | ESCL (IGN1) Relay |
| ESCL(IGN2) | 30A | ESCL (IGN2) Relay |
| P/SEAT(FR-LH) | 30A | Driver Power Seat Relay Box, IMS Control Module, Front Lumbar Support Switch |
| STOP LP | 10A | Stop Lamp Relay, Stop Lamp Switch, IPM |
| B/UP LP-1 | 10A | BACK UP LP (GSL 4.6L) |
| B/UP LP-2 | 10A | Back-up Lamp Relay (GSL 3.8L) |
| I/P POWER(LH) | 60A | I/P Junction Box LH |
| ECS | 40A | ECL Relay |
| AMP-1 | 40A | AV JBL Amp |
| AMP-2 | 30A | Amp |
| ESCL(ACC) | 30A | ESCL (ACC) Relay |
| H/LP WASHER | 20A | - |
| P/OUTLET(FR) | 25A | ACC Socket Relay |
| TRUNK OPEN | 10A | Trunk Lid Relay |
| IMS | 10A | Ims Autocut Relay |
| I/P POWER(RH) | 60A | I/P Junction Box RH |
| COOLING FAN | 60A | Cooling Fan Relay |
| EHPS | 80A | EHPS Module |
