Hyundai Genesis Coupe 2010 Fuse Box Info

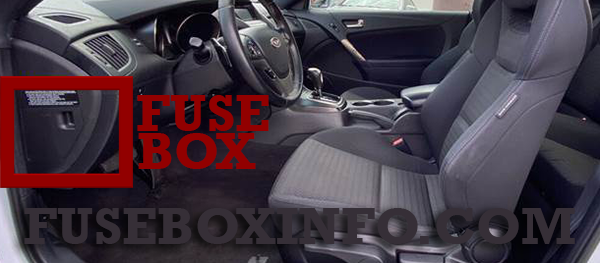

Passenger compartment fuse box location:
The fuse box is located on the left hand side of the instrument panel facing the driver’s side door.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ABS | 7.5A | ESC & Rear fog switch, ESC control module, ABS control module, Multipurpose check connector |
| CLUSTER/ESCL | 7.5A | Smart key control module, PDM, Sport mode switch (G4KF), BCM, Instrument cluster (IND.), Multifunction switch (Remocon), TPMS |
| ESCL | 10A | PDM, Smart key control module |
| ESCL SW | 10A | FOB holder, Start stop button switch |
| START | 10A | E/R box LH (Start relay), Ignition switch, Ignition lock switch, ICM relay box(B/Alarm relay) |
| P/OUTLET(FR) | 15A | Front power outlet |
| P/OUTLET | 15A | Console power outlet |
| AUDIO/ESCL | 7.5A | Audio, Multimonitor, Power outside mirror & Mirror folding switch, BCM, PDM, Smart key control module |
| A/BAG | 15A | SRS control module, Tell tail lamp, PODS |
| T/SIG | 10A | Hazard switch |
| B/UP LP | 10A | Back-up lamp switch (M/T), E/R box LH (B/UP LP relay (A/T G4KF)) |
| HAZARD | 10A | Hazard switch, ICM Relay box (HAZARD relay) |
| STOP LP | 15A | Stop lamp switch |
| AUTO SHIFT LOCK | 7.5A | E/R box LH (Multipurpose check connector), Data link connector, Sport mode switch, Key solenoid |
| FOG LP(RR) | 10A | ICM relay box (Rear fog relay) |
| P/SEAT(LH) | 30A | Driver power seat switch |
| DR LOCK | 10A | DR LOCK/UNLOCK relay, ICM relay box (Two turn unlock relay) |
| A/BAG IND | 7.5A | Instrument cluster (Air bag IND.) |
| ECU | 10A | ECM, TCM, Stop lamp switch, E/R box LH (SUB START relay (A/T(G4KF))), Cruise clutch pedal position switch (M/T(G6DA)) |
| A/CON | 7.5A | BCM, A/C control module, Incar temperature sensor, BLOWER relay |
| WIPER(FR) | 25A | Multifunction switch (Wiper), Front wiper motor, E/R junction box LH (WIPER (FR) relay) |
| IGN/ESCL | 7.5A | PDM, E/R box LH (H/LP(HI)/(LO) relay), Vacuum switch, Sunroof control module, Electro chromic mirror, Auto head lamp leveling device sensor, Auto head lamp leveling device actuator LH/RH, E/R box LH (Vacuum pump relay), E/R box LH (FOG LP (FR) relay (NAS)) |
| ESCL | 25A | PDM |
| P/WDW(LH) | 25A | Driver safety window module |
| P/WDW(RH) | 25A | Passenger safety window module |
| SEAT HTR(DRI) | 10A | Driver seat warmer switch |
| SEAT HTR(ASS) | 10A | Passenger seat warmer switch |
| MIRROR HTD | 7.5A | A/C control module, Power outside mirror LH/RH, Rear defogger (+) |
| T/LID OPEN | 15A | Trunk lid & Fuel filler door switch, T/LID relay |
| AMP | 20A | AMP |
| TAIL(LH) | 7.5A | Head lamp LH, Rear combination lamp LH, E/R box LH (FOG LP(FR) relay (NAS)) |
| TAIL(RH) | 10A | Head lamp RH, Rear combination lamp RH, License lamp, Glove box lamp, Rheostat, Driver/Passenger seat warmer switch, ESC & Rear fog switch, Head lamp leveling device switch, Multimonitor, hazard switch, Audio, Rear license lamp, Driver/Passenger power window switch, Sport mode switch, A/C control module, USB/AUX jack, Instrument cluster (ILL.), Multifunction switch (Remocon) |
|
P/CON AUDIO P/CON MEMORY |
15A 10A |
Audio Trunk room lamp, Power outside mirror & Mirror folding switch, MAP lamp, Auto light & Photo sensor/Security indcator, Multimonitor, RF receiver Instrument cluster (MICOM, IND.), A/C control module, BCM, Rear parking assist buzzer, Door warning switch, Vanity lamp LH/RH, TPMS, HOME LINK |
Engine compartment fuse box (Main fuse box):
| Fuse/Relay Name | Rating | Functions |
| BATT 2 | 50A | Fuse (STOP 15A, AUTO SHIFT LOCK 7.5A, P/CON (AUDIO 15A, MEMORY 10A), DR LOCK 10A, P/SEAT (LH) 30A, Fog LP(RR) 10A) |
| BATT 1 | 30A | Fuse (T/LID OPEN 15A, AMP 20A, HAZARD 10A, ESCL 25A, P/WDW (RH) 25A, P/WDW (LH) 25A, ESCL 10A, ESCL SW 10A) |
| ALT | 150A | Generator |
| ABS-1 | 40A | ESC control module, ABS control module, Multipurpose check connector |
| ABS-2 | 40A | ESC control module, ABS control module |
| BLOWER | 40A | Blower relay |
| HTD GLASS (RR) | 40A | HTD glass (RR) relay, Fuse (MIRROR HTD 7.5A) |
| COOLING FAN | 50A | Cooling fan (HI) relay, Cooling fan (LO) relay |
| IGN 1 | 30A | ESCL (IGN1) relay, ESCL (ACC) relay, Ignition switch |
| IGN 2 | 40A | ESCL (IGN2) relay, Start relay, Ignition switch |
| B/UP LP | 10A | B/UP LP relay |
| HORN | 15A | Horn relay |
| H/LP (LO) | 20A | H/LP (LO) relay, Fuse (H/LP LO RH 15A, H/LP LO LH 15A) |
| H/LP (HI) | 20A | H/LP (HI) relay, Instrument cluster, Head lamp LH/RH |
| VACUUM PUMP | 15A | Vacuum pump relay |
| A/CON COMP | 10A | A/Con relay |
| FOG LP (FR) | 10A | FOG LP (FR) relay, Instrument cluster |
| TAIL | 15A | TAIL relay, Fuse (TAIL (LH) 7.5A, TAIL (RH) 10A) |
| HTD GLASS (FR) | 15A | HTD glass (FR) relay |
| DRL, B/HORN | 15A | ICM Relay box (Burglar alarm horn relay), I/P junction box (DRL UNIT) |
| S/ROOF | 20A | Sunroof control module |
| H/LP LO RH | 15A | Head lamp RH, Manual head lamp leveling device actuator RH, Head lamp leveling device switch |
| H/LP LO LH | 15A | Head lamp LH, Manual head lamp leveling device actuator LH |
Engine compartment fuse box (Sub fuse box):
| Fuse/Relay Name | Rating | Functions |
| B+ | 50A | Fuse (F/PUMP 20A, ECU-1 10A, ECU 30A) |
| ECU |
30A G4KF 30A G6DA |
ECU main relay (ECU-2, SNSR-1, SNSR-2, INJ, IGN COIL) ECU main relay (SNSR-1, SNSR-2, INJ, IGN COIL) |
| F/PUMP | 20A | F/PUMP relay |
| ECU-1 | 10A | ECM, TCM |
| INJ | 15A | Injector, F/PUMP relay, ECM (G6DA) |
| ECU-2 | 20A | ECM (G4KF) |
| SNSR-1 | 10A | Oxygen sensor (UP/DOWN), A/CON relay, Cooling fan (HI) relay, Cooling fan (LO) relay, ECM (G6DA), Mass airflow sensor (G6DA) |
| SNSR-2 |
15A G4KF 15A G6DA |
Oil control valve, Canister purge control solenoid valve, Camshaft position sensor, Crankshaft psition sensor, WGT control solenoid valve, RCV control solenoid valve, Immobilizer module, Canister close valve Oil control valve, Oil control valve (EXHAUST), ECM, Purge control solenoid valve, Immobilizer module, Canister close valve |
