Honda Fit 2015 Fuse Box Info
Passenger compartment fuse box location:
The interior fuse boxes is under the dashboard on the driver’s side.

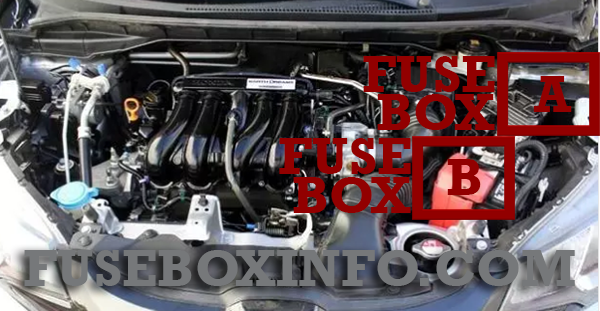

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Fuse box A):
| Fuse/Relay N° | Rating | Functions |
| 1 | (20A) | Door Lock |
| 2 | - | - |
| 3 | (10A) | Smart* |
| 4 | 15A | Driver Side Door Unlock |
| 5 | 15A | Passenger Side Door Unlock |
| 6 | (10A) | Driver Door Unlock |
| 7 | (10A) | Driver Door Lock |
| 8 | 20A | Driver’s Power Window |
| 9 | 20A | Passenger’s Power Window |
| 10 | 20A | Rear Left Power Window |
| 11 | 20A | Rear Right Power Window |
| 12 | 15A | Driver Side Door Lock |
| 13 | 15A | Passenger Side Door Lock |
| 14 | - | - |
| 15 | 10A | Right Headlight High Beam |
| 16 | (7.5A) | STS* |
| 17 | (20A) | ACC Socket (Console*) |
| 18 | (20A) | Moonroof* |
| 19 | (20A) | Front Seat Heater* |
| 20 | - | - |
| 21 | - | - |
| 22 | 15A | Washer |
| 23 | (10A) | Rear Wiper |
| 24 | 7.5A | A/C |
| 25 | 7.5A | Daytime Running Lights |
| 26 | 7.5A | Starter Cut |
| 27 | 7.5A | ABS/VSA |
| 28 | 10A | SRS |
| 29 | 10A | Left Headlight High Beam |
| 30 | 10A | ACG |
| 31 | 10A | Power Window |
| 32 | 15A | Fuel Pump |
| 33 | 7.5A | SRS |
| 34 | 7.5A | Meter |
| 35 | 7.5A | Mission SOL |
| 36 | 20A | Front ACC Socket |
| 37 | 7.5A | ACC |
| 38 | 7.5A | ACC Key Lock |
| 39 | (10A) | Option |
| 40 | 10A | Rear Wiper |
| 41 | - | - |
| 42 | - | - |
* Not available on all models
Passenger compartment fuse box (Fuse box B):
| Fuse/Relay N° | Rating | Functions |
| 1 |
70A 30A*1/50A*2 50A 40A 30A 40A |
EPS IG Main Fuse Box Main 2 ABS/VSA Motor Fuse Box Main 1 Fuse Box Main 3 |
| 2 |
- - - - - - |
- - - - - - |
| 3 | 30A | Heater |
|
4*1 4*2 |
30A - |
IG Main 2 - |
| 5 | 30A | ABS/VSA FSR |
| 6 | (10A) | Deicer |
| 7 | - | - |
| 8 | - | - |
| 9 | 10A | Small Light |
| 10 | (20A) | ACC Socket (Console)* |
| 11 | 30A | Rear Defogger |
|
12*1 12*2 |
- (7.5A) |
- ACC Key Lock |
| 13 | (10A) | Heated Door Mirror* |
| 14 | (7.5A) | A/C Blower SW |
|
15*1 15*2 |
- 30A |
- Wiper |
* Not available on all models
*1 Models with smart entry system
*2 Models without smart entry system
Engine compartment fuse box (Fuse box A):
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Headlight Low Beam Main |
| 2 | (30A) | CDC* |
| 3 | 10A | Hazard |
| 4 | 15A | DBW |
| 5 | (30A) | Wiper* |
| 6 | 10A | Stop |
| 7 | 15A | IGP |
| 8 | 15A | IG Coil |
| 9 | (10A) | ECP* |
| 10 | (20A) | INJ |
| 11 | - | - |
| 12 | 30A | Main Fan |
| 13 | (30A) | Starter SW |
| 14 | 7.5A | MG Clutch |
| 15 | (7.5A) | Battery Sensor |
| 16 | - | - |
| 17 | (7.5A) | Daytime Running Lights |
| 18 | 10A | Horn |
| 19 | (10A) | Fog Light* |
| 20 | - | - |
| 21 | 15A | Back Up Main |
| 22 | 7.5A | Interior Lights |
| 23 | (30A) | Sub Fan |
| 24 | - | - |
| 25 | (7.5A) | Smart Entry Auto Start* |
| 26 | (7.5A) | ST MG |
| 27 | - | - |
| 28 | - | - |
| 29 | (10A) | Back Up |
| 30 | (10A) | IGP LAF |
| 31 | (7.5A) | IGPS |
| 32 | 10A | Right Headlight Low Beam |
| 33 | 10A | Left Headlight Low Beam |
* Not available on all models
Engine compartment fuse box (Fuse box B):
| Fuse/Relay N° | Rating | Functions |
| a | 100A | Battery Main |
| b | 70A | RB Main 1 |
| c | 80A | RB Main 2 |
| d | 70A | CAP Main |
