Honda Fit 2009 Fuse Box Info

Passenger compartment fuse box location:

The interior fuse box is behind the panel on the driver’s side.

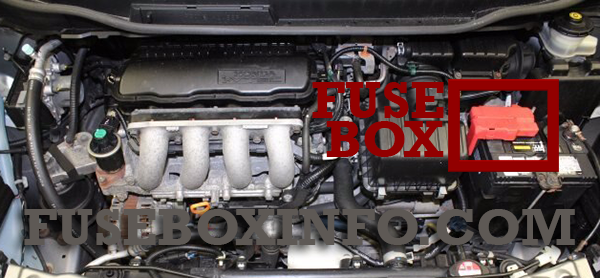

Engine compartment fuse box location:

The under-hood fuse box is on the positive terminal of the battery.

Fuse Box Diagram | Layout

Passenger compartment fuse box:

Fuse/Relay N°	Rating	Functions
1	10A	Back Up
2	7.5A	TPMS*
3	20A	Driver's Power Window
4	-	Not Used
5	10A	Back Up Light
6	10A	SRS
7	(10A)	Transmission SOL*
8	7.5A	SRS
9	(20A)	Fog Light*
10	7.5A	A/C*
11	7.5A	ABS/VSA*
12	10A	ACG
13	20A	ACC Socket
14	7.5A	Key Lock/Radio
15	7.5A	Daytime Running Light
16	10A	Rear Wiper
17	20A	Front Passenger's Power Window
18	20A	Rear Passenger's Side Power Window
19	20A	Rear Driver's Side Power Window
20	15A	Fuel Pump
21	15A	Washer
22	7.5A	Meter
23	10A	Hazard
24	10A	Stop/Horn
25	-	Not Used
26	10A	LAF
27	(30A)	Door Lock Main*
28	20A	Headlight Main
29	10A	Small Light
30	30A	Main Fan Motor
31	-	Not Used
32	10A	Right Headlight Low Beam
33	15A	IG Coil
34	10A	Left Headlight Low Beam
35	(15A)	Door Lock*
36	(15A)	Door Lock*
37	30A	ABS/VSA* FSR
38	(15A)	Door Lock*
39	15A	IGP
40	-	Not Used
41	-	Not Used
42	-	Not Used
43	(7.5A)	MG Clutch
44	7.5A	STS
45	-	Not Used
46	-	Not Used
47	(30A)	Sub Fan Motor
48	10A	Left Headlight High Beam
49	(15A)	Door Lock*
50	(15A)	Door Lock*
51	10A	Right Headlight High Beam
52	15A	DBW
53	-	Not Used
54	20A	Rear Defogger*
55	10A	Heated Mirror*
56	30A	Front Wiper
57	30A	Blower Motor
58	30A	ABS/VSA* Motor
59	20A 30A	Rear Defogger
60	50A/40A	IG Main/Option Main
61	30A	Radio
62	-	Not Used

* If equipped

Engine compartment fuse box:
