Ford Mustang 1997 Fuse Box Info
Passenger compartment fuse box location:

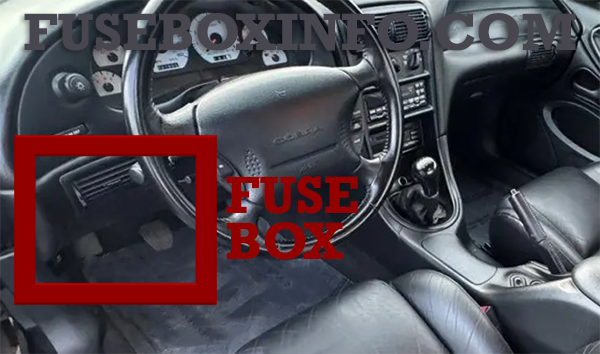

The fuse box is located below and to the left of the steering wheel by the brake pedal.

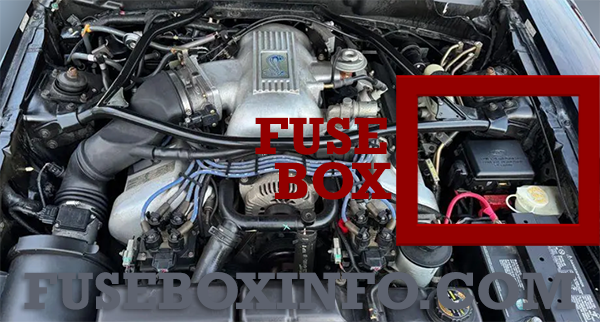

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Air bag diagnostic module, Shift lock actuator, Electronic flasher, Rear window defrost control switch, Daytime running lamps (DRL), Transmission control switch, Convertible top switch, Backup lamp switch, Transmission range (TR) sensor |
| 2 | 30A | Interval wiper/washer (module & motor) |
| 4 | 10A | Air bag system |
| 5 | 15A | Main light switch |
| 6 | 15A | Speed control amplifier, Warning chime, Clock, A/C heater control assembly, Anti-theft controller module, Remote keyless entry module |
| 7 | 10A | Anty-lock brake system |
| 8 | 10A | Courtesy lamps, Radio, Power mirror, Remote keyless entry, Clock |
| 9 | 15A | Brake ON/OFF (BOO) switch, Brake pressure switch, Electronic flasher |
| 10 | 15A | Intake manifold runner control (IMRC) |
| 11 | 15A | Radio |
| 12 | 20A | Power door locks, Remote keyless entry (RKE), Trunk lid release switch |
| 13 | 10A | Instrument illumination lamps |
| 14 | 20A | Power windows |
| 15 | 10A | Instrument cluster, Warning chime, Air bag diagnostic module |
| 16 | 20A | Anti-theft module, Flash-to-pass, Passive anti-theft system |
| 17 | 30A | Heter/air conditioning |
| 18 | 20A | Instrument cluster, PATS, Constant control relay module, Ignition system |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| IGN SW | 40A | Ignition switch, Starter relay |
| IGN SW | 40A | Ignition switch |
| IGN SW | 40A | Ignition switch |
| HD LPS | 50A | Exterior lamps, I/P fuse panel |
| EEC | 20A | Powertrain control module, Constant control relay module |
| HTD BL | 40A | Rear window defrost |
| FUEL PUMP | 20A | Fuel pump |
| FAN | 60A | Electric cooling fan motor |
| ABS | 60A | Anti-lock brake system |
| CONV TOP | 30A | Convertible top, Raise and lower relay |
| CIG ILLUM | 30A | Cigar lighter, Auxiliary power socket |
| ALT | 20A | Generator/voltage regulator |
| AUDIO | 25A | Radio |
| INT LPS | 25A | Brake on/off switch, Brake pressure switch |
| DRL, FOG, HORNS | 20A | Horns, Fog lamps, Daytime running lamps (DRL) |
| POWER SEATS | 25A | Left power lumbar seat switch, Power seats |
| THERM | 30A | Air injection reaction (AIRB) bypass, Air injection reaction (AIR) relay |
