Ford Taurus 2000 Fuse Box Info
Fuse box location:
The fuse box is located below and to the left of the steering wheel by the brake pedal.
Engine compartment fuse box:
Fuse Box Diagram | Layout

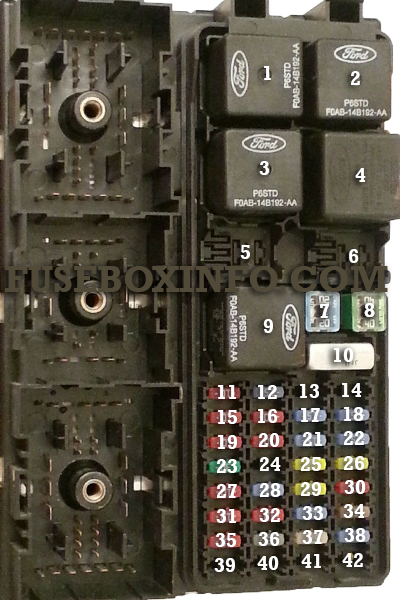

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Accessory Delay Relay |
| 2 | - | Driver One Touch Down Relay |
| 3 | - | Blower Motor Relay |
| 4 | - | Flasher Relay |
| 5 | - | Not used |
| 6 | - | Not used |
| 7 | 40A | Rear Defrost Grid Feed |
| 8 | 40A | Blower Motor |
| 9 | - | Rear Defrost Relay |
| 10 | 30A | Power Seats, Delayed Accessory, Adjustable Pedals |
| 11 | 15A | Integrated Control Panel (ICP), Rear Washer Wiper Control, Front Washer, Cell Phone, Passenger Switch Illumination, GEM, Rear Wiper Motor |
| 12 | 10A | Heated Mirrors, Rear Defrost Switch |
| 13 | 20A | Cigar Lighter, Auxiliary Power Point |
| 14 | - | Not used |
| 15 | 30A | Front Wiper Motor |
| 16 | 15A | Flasher and GEM Power, Integrated Control Panel (ICP) Power, RCC Memory, Cluster |
| 17 | 15A | Stop Lamp, Speed Control Deactivating Switch |
| 18 | - | Not used |
| 19 | - | Not used |
| 20 | - | Not used |
| 21 | - | Not used |
| 22 | 20A | Deck Lid Release Solenoid, Lock/Unlock Relays |
| 23 | 10A | Air Bag Module, PATS Transceiver |
| 24 | 15A | Transit Relay |
| 25 | 2A | PCM Relay |
| 26 | 10A | Mirrors, Power Antenna, Pulse Stretcher Module, Deck Lid Lamp, Battery Saver |
| 27 | 10A | Gauges and Warning Lamps, Integrated Control Panel (ICP), FFV Sender, GEM |
| 28 | 10A | Blower Motor Relay Coil, EATC Logic |
| 29 | 15A | Autolamps, Headlamp Switch |
| 30 | 15A | Horns and Horn Switch, OBD II Connector |
| 31 | - | Not used |
| 32 | 10A | ABS, DRL Relay Coil, Speed Control Actuator, Traction Control Switch, AC Heater Selector Switch, Blend Door Actuator, Brake Shift Interlock |
| 33 | - | Not used |
| 34 | - | Not used |
| 35 | - | Not used |
| 36 | 15A | Turn Signals, Back-up Lamps |
| 37 | 15A | Transmission Position Switch |
| 38 | 5A | GEM Park Neutral Switch |
| 39 | - | Not used |
| 40 | - | Not used |
| 41 | - | Not used |
| 42 | - | Not used |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 60A | Fuse Junction Panel |
| 2 | 30A | PCM Relay |
| 3 | 60A | Fuse Junction Panel |
| 4 | - | Not used |
| 5 | - | Not used |
| 6 | - | Not used |
| 7 | 40A | Starter Relay, Ignition Switch |
| 8 | 20A | Transit Relay (Export only) |
| 9 | 40A | Cooling Fan Relays |
| 10 | - | Not used |
| 11 | 20A | Thermactor Relay (FFV only) |
| 12 | - | Not used |
| 13 | 40A | Anti-Lock Brake Module Pump Feed |
| 14 | - | Not used |
| 15 | 20A | Anti-Lock Brake Module Valve Solenoid |
| 16 | 20A | Fuel Pump Relay |
| 17 | 20A | Rear Control Unit, CD Changer, Cell Phone |
| 18 | - | Not used |
| 19 | 15A | Right Headlamp |
| 20 | - | Not used |
| 21 | 15A | Left Headlamp |
| 22 | 10A | A/C Clutch Relay, PCM Keep Alive Power |
| 23 | - | Starter Motor Relay |
| 24 | - | Low Speed Fan Relay |
| 25 | - | Wiper Speed Relay |
| 26 | 30A | Generator |
| 27 | 5A | Rear Control Unit, Antenna |
| 28 | 15A | HEGO Sensor Transmission Shift Solenoid, Canister Vent, A/C Clutch Relay, Thermactor Bypass Solenoid |
| 29 | - | Wiper Park Relay |
| 30 | - | Fuel Pump Relay |
| 31 | - | PCM Power Relay |
| 32 | - | High Speed Fan Relay |
| 33 | - | A/C Clutch Relay |
