Ford C-MAX Hybrid/Energi 2014 Fuse Box Info

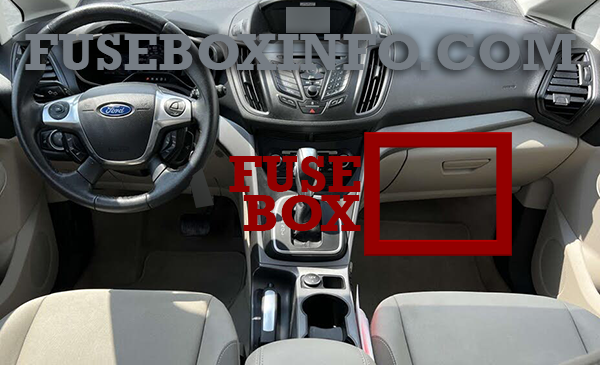

Passenger compartment fuse box location:
The fuse box is located on the right side below the glove box.
Engine compartment fuse box location:

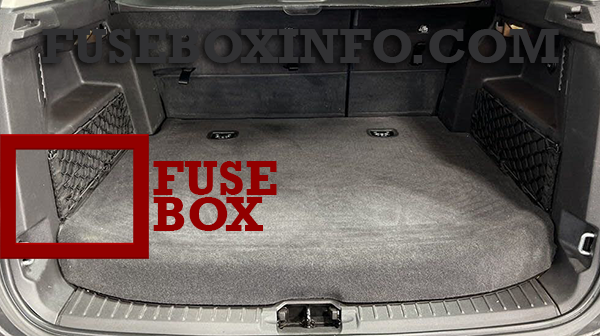

Luggage compartment fuse box location:
The fuse box is located in the luggage compartment behind the left side wheel well.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 56 | 20A | Fuel pump supply |
| 57 | - | Not used |
| 58 | 5A | Not used (spare) |
| 59 | 5A | Passive anti-theft system |
| 60 | 10A | Interior light, Driver door switch pack, Glove box illumination, Overhead console switch bank |
| 61 | 20A | Cigar lighter, Second row power point |
| 62 | 5A | Autowipers module, Auto-dimming rear view mirror |
| 63 | 10A | Not used (spare) |
| 64 | - | Not used |
| 65 | 10A | Liftgate release |
| 66 | 20A | Driver door unlock supply |
| 67 | 7.5A | Cell phone passport (C-MAX Energi), Multifunction display, GPS module, SYNC |
| 68 | 15A | Not used (spare) |
| 69 | 5A | Instrument cluster |
| 70 | 20A | Central lock and unlock supply |
| 71 | 10A | Heating control head (manual A/C), Climate control module |
| 72 | 7.5A | Steering wheel module |
| 73 | 7.5A | Data link connector, OBD II supply |
| 74 | 15A | Headlamp supply |
| 75 | 15A | Fog lamp supply |
| 76 | 10A | Reversing lamp supply |
| 77 | 20A | Washer pump |
| 78 | 5A | Ignition switch, Start button |
| 79 | 15A | Radio, Hazard light switch |
| 80 | 20A | Not used (spare) |
| 81 | 5A | Power sun shade, Remote receiver antenna |
| 82 | 20A | Washer pump ground |
| 83 | 20A | Central locking ground |
| 84 | 20A | Drive door unlock ground |
| 85 | 7.5A | Electronic 15 feed |
| 86 | 10A | Restraints control module, Passenger air bag deactivation indicator |
| 87 | - | Not used |
| 88 | 25A | Not used (spare) |
| 89 | - | Not used |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F1 | 50A | Cooling fan module |
| F2 | 50A | Electric water pump |
| F3 | 50A | Body control module supply 1 |
| F4 | 50A | Body control module supply 2 |
| F5 | - | Not used |
| F6 | - | Not used |
| F7 | 40A | Anti-lock brake system pump |
| F8 | 30A | Anti-lock brake system valve |
| F9 | 40A | Vacuum pump |
| F10 | 40A | Heater blower motor |
| F11 | 30A | Engine management |
| F12 | - | Not used |
| F13 | 25A | Powertrain control module relay |
| F14 | 20A | Rear wiper |
| F15 | 30A | Body control module KL30 supply |
| F16 | 20A | Body control module 15 feed |
| F17 | 20A | Transmission oil pump (C-MAX Energi) |
| F18 | 20A | Front wiper motor |
| F19 | 5A | Anti-lock brake system and electronic stability program module |
| F20 | 15A | Horn |
| F21 | 5A | Stop light switch |
| F22 | 5A | Vacuum pump monitoring |
| F23 | 5A | Engine control module 15 / Powertrain control module 15 / Transmission oil pump 15 |
| F24 | 5A | Relay coils, Light switch module |
| F25 | 10A | Motor electronic cooling pump |
| F26 | 5A | Electronic power assist steering module 15 |
| F27 | 5A | Mass air flow sensor |
| F28 | 15A | Powertrain control module |
| F29 | 10A | Electronic air conditioning compressor / Positive temperature coefficient heater |
| F30 | 10A | Engine control module, Powertrain control module |
| F31 | 5A | Charge port light ring (C-MAX Energi) |
| F32 | 20A | Vehicle power 2 |
| F33 | 15A | Vehicle power 4 |
| F34 | 10A | Injectors |
| F35 | 10A | Vehicle power 3 |
| F36 | 20A | Vehicle power 1 |
| R1 | - | Not used |
| R2 | - | Horn |
| R3 | - | Hybrid powertrain control |
| R4 | - | Front wiper |
| R5 | - | Not used |
| R6 | - | Front and rear wiper high/low |
| R7 | - | Vacuum pump |
| R8 | - | Ignition feed |
| R9 | - | Not used |
| R10 | - | Vacuum pump sensor |
| R11 | - | Not used |
| R12 | - | Cooling fan |
| R13 | - | Heater blower |
| R14 | - | Engine control relay |
Luggage compartment fuse box::
| Fuse/Relay N° | Rating | Functions |
| F1 | 5A | Hands-free liftgate entry module |
| F2 | 10A | Keyless vehicle module |
| F3 | 5A | Keyless vehicle door handles |
| F4 | 25A | Door control unit front left |
| F5 | 25A | Door control unit front right |
| F6 | 25A | Door control unit rear left |
| F7 | 25A | Door control unit rear right |
| F8 | - | Not used |
| F9 | 25A | Driver seat motor |
| F10 | 25A | Heated rear window |
| F11 | - | Not used |
| F12 | 15A | Battery electronics control module |
| F13 | - | Not used |
| F14 | 10A | Charger (C-MAX Energi) |
| F15 | - | Not used |
| F16 | - | Not used |
| F17 | 10A | Battery electronics control module |
| F18 | 15A | Battery electronics control module — fan |
| F19 | 15A | Charger fan (C-MAX Energi) |
| F20 | - | Not used |
| F21 | 10A | Smart datalink connector |
| F22 | 10A | Active noise cancellation |
| F23 | - | Not used |
| F24 | 10A | DC/AC power converter |
| F25 | 25A | Power liftgate |
| F26 | 40A | AC/DC charger (C-MAX Energi) |
| F27 | 20A | Luggage compartment outlet |
| F28 | - | Not used |
| F29 | - | Not used |
| F30 | 5A | Parking aid module |
| F31 | 5A | Rear view camera |
| F32 | 5A | DC/AC power converter |
| F33 | - | Not used |
| F34 | 20A | Driver seat heater |
| F35 | 20A | Passenger seat heater |
| F36 | - | Not used |
| F37 | 20A | Power sun shade |
| F38 | - | Not used |
| F39 | - | Not used |
| F40 | - | Not used |
| F41 | - | Not used |
| F42 | - | Not used |
| F43 | - | Not used |
| F44 | - | Not used |
| F45 | 5A | Humidity sensor |
| F46 | 10A | Fuel system |
| R1 | - | Rear 15 relay |
| R2 | - | Heated rear window |
| R3 | - | Fuel door (C-MAX Energi) |
| R4 | - | Not used |
| R5 | - | Not used |
| R6 | - | Rear wiper |
