Ford Explorer 2020 Fuse Box Info

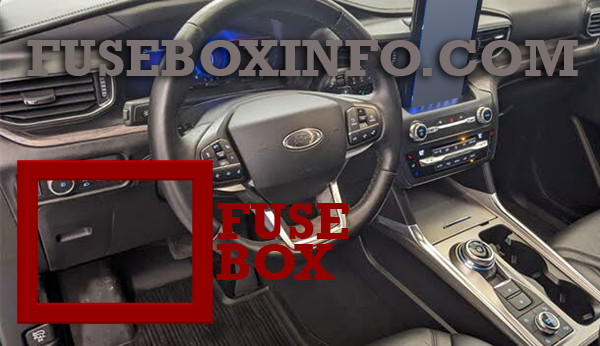

Passenger compartment fuse box location:
The fuse box is located under the instrument panel to the left of the steering column.

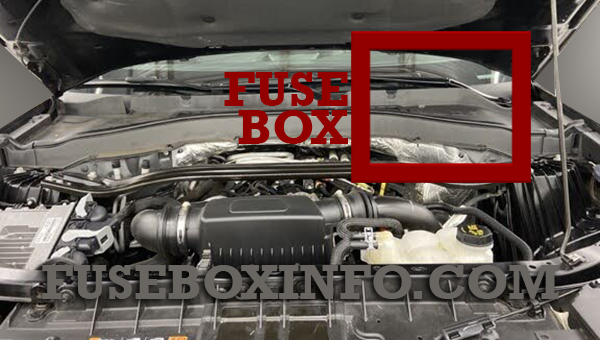

Engine compartment fuse box location:
The engine compartment fuse box is under the driver side leaf screen in the engine compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | 10A | Moonroof, ERA-GLONAS, eCall, Telematics control unit module, Inverter, Driver door switch pack |
| 3 | 7.5A | Memory seat switch, Wireless accessory charger module, Seat switches |
| 4 | 20A | Not used (spare) |
| 5 | - | Not used |
| 6 | 10A | Not used |
| 7 | 10A | Smart data link connector power |
| 8 | 5A | Telematics control unit modem, Hands-free liftgate actuation module, Power liftgate module |
| 9 | 5A | Keypad switch, Rear climate control |
| 10 | - | Not used |
| 11 | - | Not used |
| 12 | 7.5A | Climate control head, Gear shift module |
| 13 | 7.5A | Steering column control module, Smart datalink connector, Instrument cluster |
| 14 | 15A | Not used (spare) |
| 15 | 15A | SYNC, Integrated control panel |
| 16 | - | Not used |
| 17 | 7.5A | Headlamp control module |
| 18 | 7.5A | Not used (spare) |
| 19 | 5A | Headlamp switch, Push button ignition switch |
| 20 | 5A | Ignition switch, Telematics control unit module, Key inhibit solenoid lock |
| 21 | 5A | Not used |
| 22 | 5A | Pedestrian sounder (hybrid electric vehicle) |
| 23 | 30A | Not used (spare) |
| 24 | 30A | Moonroof |
| 25 | 20A | Not used (spare) |
| 26 | 30A | Not used (spare) |
| 27 | 30A | Not used (spare) |
| 28 | 30A | Not used (spare) |
| 29 | 15A | Not used (spare) |
| 30 | 5A | Trailer brake connector |
| 31 | 10A | Terrain management switch, Selectable drive mode switch, Transceiver module |
| 32 | 20A | Audio control module |
| 33 | - | Not used |
| 34 | 30A | Run/start relay |
| 35 | 5A | Not used (spare) |
| 36 | 15A | Park assist module, Image processing module A |
| 37 | 20A | Not used (spare) |
| 38 | 30A | Left-hand rear power window, Right-hand rear power window |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Body control module - battery power in feed 1 |
| 2 | 20A | Power outlet main console bin |
| 3 | 40A | Body control module - battery power in feed 2 |
| 4 | 30A | Fuel pump |
| 5 | 5A | Powertrain control module keep alive power |
| 6 | 20A | Powertrain control module power |
| 7 | 20A | Canister vent solenoid, Evaporative leak control module, Exhaust gas heat recovery (hybrid electric vehicle), Tank pressure control valve (hybrid electric vehicle), Refueling valve (plug-in hybrid electric vehicle), Vapor blocking valve, Universal exhaust gas oxygen 11, Universal exhaust gas oxygen 21, Catalyst monitor sensor 12, Catalyst monitor sensor 22, Canister purge valve |
| 8 | 20A | Cooling fan relay coil, Battery interrupt box, Transmission oil pump, Auxiliary coolant pump, Fuel flap door (hybrid electric vehicle), Engine coolant bypass valve, Active grille shutters |
| 9 | 20A | Ignition coils |
| 13 | 40A | Front blower motor relay |
| 14 | 15A | Transmission oil pump, A/C compressor variable clutch, Auxiliary pumps (hybrid electric vehicle) |
| 16 | 15A | Windshield and rear window washer pump relay power |
| 17 | 5A | Charge status indicator (hybrid electric vehicle) |
| 18 | 30A | Starter motor |
| 21 | 10A | Headlamp leveling motors, Adaptive headlamps |
| 22 | 10A | Electric power assisted steering module |
| 23 | 10A | Anti-lock brake system module with integrated park brake |
| 24 | 10A | Powertrain control module, Hybrid powertrain control module |
| 25 | 10A | Air quality sensor, 360 camera with park aid, Rear view camera, Blind spot information system, Adaptive cruise control module |
| 26 | 15A | Transmission control module |
| 28 | 40A | Anti-lock brake system valves with integrated park brake |
| 29 | 60A | Anti-lock brake system pump with integrated park brake |
| 30 | 30A | Driver seat module |
| 31 | 30A | Passenger seat motor |
| 32 | 20A | Front media bin power point |
| 33 | 20A | Rear cargo area power point |
| 34 | 20A | Console end cap power point |
| 35 | 20A | Power point 4 |
| 36 | 40A | Power inverter |
| 38 | 30A | Climate controlled seat module |
| 41 | 30A | Power liftgate module |
| 42 | 30A | Trailer brake control module |
| 43 | 60A | Body control module |
| 44 | 10A | Brake on and off switch |
| 46 | 15A | Battery charger control module (hybrid electric vehicle) |
| 50 | 40A | Heated backlite |
| 54 | 20A | Heated steering wheel |
| 55 | 20A | Trailer tow park lamps |
| 57 | 30A | Trailer tow battery charge |
| 58 | 10A | Trailer tow backup lamps |
| 61 | 15A | Multi-contour seat module |
| 62 | 15A | Headlamp washer pump |
| 64 | 40A | Four-wheel drive module |
| 69 | 30A | Front window wiper motor |
| 71 | 15A | Rear window wiper motor |
| 72 | 20A | Not used (spare) |
| 73 | 30A | Driver door module |
| 78 | 50A | Left-hand heated windshield |
| 79 | 50A | Right-hand heated windshield |
| 80 | 20A | Trailer tow |
| 82 | 20A | Not used (spare) |
| 88 | 20A | Rear blower motor |
| 91 | 20A | Trailer tow lighting module |
| 95 | 15A | Integrated spark control (hybrid electric vehicle) |
| 96 | 15A | Not used (spare) |
| 97 | 10A | Electric AC (hybrid electric vehicle), High voltage positive temperature coefficient heater (hybrid electric vehicle) |
| 98 | 10A | Traction battery coolant proportional valve (hybrid electric vehicle) |
| 103 | 50A | Not used (spare) |
| 104 | 50A | Not used (spare) |
| 105 | 40A | Not used (spare) |
| 106 | 40A | Not used (spare) |
| 107 | 40A | Not used (spare) |
| 108 | 20A | Not used (spare) |
| 109 | 30A | Passenger door module |
| 111 | 30A | Body control module voltage quality monitor feed |
| 112 | 20A | Not used (spare) |
| 114 | 50A | Not used (spare) |
| 115 | 20A | Amplifier |
| 116 | 5A | Not used (spare) |
| 118 | 30A | Second row heated seats |
| 120 | 15A | Port fuel injectors |
| 124 | 5A | Rain sensor |
| 125 | 5A | USB smart charger 1 |
| 127 | 20A | Amplifier |
| 128 | 15A | Not used (spare) |
| 131 | 40A | Power folding seat module |
| 133 | 15A | Heated wiper park |
| 134 | 10A | Family entertainment system |
| 136 | 20A | Not used (spare) |
| 139 | 5A | USB smart charger 2 |
| 142 | 5A | Traffic cam |
| 146 | 15A | Battery electronic control module |
| 148 | 30A | Left-hand headlamp module |
| 149 | 30A | Right-hand headlamp module |
| 150 | 40A | Not used (spare) |
| 155 | 25A | Transmission control module (hybrid electric vehicle) |
| 159 | 15A | DC/DC converter (hybrid electric vehicle) |
| 160 | 10A | Not used (spare) |
| 168 | 20A | Low voltage service disconnect |
| 169 | 10A | Coolant pump (hybrid electric vehicle) |
| 170 | 10A | Traction battery coolant pump (hybrid electric vehicle) |
| 177 | 10A | Not used (spare) |
