Ford Explorer 2011 Fuse Box Info

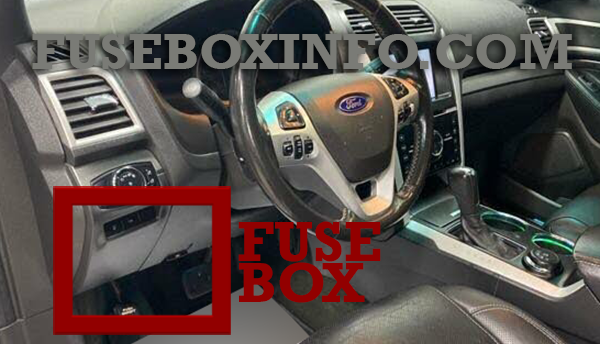

Passenger compartment fuse box location:
The fuse box is located below and to the left of the steering wheel by the brake pedal.
Engine compartment fuse box location:
The power distribution box is located in the engine compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | One touch up/down driver side front window |
| 2 | 15A | Not used (spare) |
| 3 | 30A | One touch up/down passenger side front window |
| 4 | 10A | Interior demand lamps (overhead console, 2nd row, cargo), glove box lamp, 2nd and 3rd row seat release, visor lamps |
| 5 | 20A | Amplifier |
| 6 | 5A | Not used (spare) |
| 7 | 7.5A | Memory seat module logic feed |
| 8 | 10A | Not used (spare) |
| 9 | 10A | 4” Radio display (without SYNC), Power liftgate logic, Electronic finish panel |
| 10 | 10A | Run/accessory relay (wipers, rear washer), Rain sensor |
| 11 | 10A | Instrument cluster, Heads-up display |
| 12 | 15A | Interior courtesy lamps (overhead console, 2nd row, cargo), Puddle lamps, Console bin LED, Backlighting |
| 13 | 15A | Right turn lamps, Right trailer tow (TT) turn/stop lamps |
| 14 | 15A | Left turn lamps, Left TT turn/stop lamps |
| 15 | 15A | Reverse lamps, Stop lamps, High-mounted stop lamp |
| 16 | 10A | Low beam headlamps (right) |
| 17 | 10A | Low beam headlamps (left) |
| 18 | 10A | Keypad illumination, Brake shift interlock (BSI), Start button run indicator, Passive anti-theft system (PATS), Powertrain control module (PCM) wake-up, Rear seat power enable |
| 19 | 20A | Memory seat power |
| 20 | 20A | Locks |
| 21 | 10A | Intelligent access (IA), Keypad |
| 22 | 20A | Horn relay |
| 23 | 15A | Steering wheel control module, IA, Headlamp switch |
| 24 | 15A | Datalink connector, Steering wheel control module |
| 25 | 15A | Liftgate release |
| 26 | 5A | Radio frequency module |
| 27 | 20A | IA module |
| 28 | 15A | Ignition switch, Push button start |
| 29 | 20A | Radio, 8” SYNC Multi-function display screen, SYNC module, Global positioning system module |
| 30 | 15A | Front park lamps |
| 31 | 5A | Trailer tow brake controller |
| 32 | 15A | 110V AC power point, Power folding mirror, Power mirrors, One touch up/down front windows, Door lock illumination |
| 33 | 10A | Occupant classification sensor |
| 34 | 10A | Blind spot monitor, Rearview camera, Reverse sensing system |
| 35 | 5A | Heads-up display, Climate control humidity sensor, Terrain management system, Hill descent switch, Headlamp switch IGN sense |
| 36 | 10A | Not used (spare) |
| 37 | 10A | Restraints control module |
| 38 | 10A | Auto-dimming rear view mirror, Moon roof |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Rear park lamps, License plate lamps |
| 41 | 7.5A | Overdrive cancel, Tow/haul |
| 42 | 5A | Not used (spare) |
| 43 | 10A | Not used (spare) |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control module |
| 47 | 15A | Fog lamps, left and right turn signal mirror feed |
| 48 | 30A | Rear power windows, Passenger power window, One touch down (driver side only) |
| 49 | - | Body control module |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | - | Not used |
| 3 | 30A | Trailer brake control module |
| 4 | 30A | Wipers, Front washer |
| 5 | 50A | Anti-lock brake system (ABS) pump |
| 6 | - | Not used |
| 7 | 30A | Power liftgate |
| 8 | 20A | Moon roof |
| 9 | 20A | Power point #2 (console rear) |
| 10 | - | 3rd row rear seat release relay |
| 11 | - | Rear window defroster relay |
| 12 | - | Trailer tow battery charge relay |
| 13 | - | Starter motor relay |
| 14 | - | Not used |
| 15 | - | Fuel pump relay |
| 16 | - | Not used |
| 17 | 40A | 110V AC power point |
| 18 | 40A | Front blower motor |
| 19 | 30A | Starter motor |
| 20 | 20A | Power point #1/cigar lighter |
| 21 | 20A | Power point #3 (cargo area) |
| 22 | 30A | 3rd row seat module |
| 23 | 30A | Driver power seat, Memory module |
| 24 | 30A | Trailer tow (TT) battery charge |
| 25 | - | Not used |
| 26 | 40A | Rear window defroster, Heated mirrors |
| 27 | 20A | Power point (console) |
| 28 | 30A | Climate controlled seats |
| 29 | - | Not used |
| 30 | - | Not used |
| 31 | - | Not used |
| 32 | - | Auxiliary blower motor relay |
| 33 | - | Not used |
| 34 | - | Blower motor relay |
| 35 | - | Not used |
| 36 | - | Not used |
| 37 | - | TT right stop/turn lamps relay |
| 38 | - | TT back up relay |
| 39 | 40A | Auxiliary blower motor |
| 40 | - | Not used |
| 41 | - | Not used |
| 42 | 30A | Passenger seat |
| 43 | 40A | ABS valves |
| 44 | - | Rear washer relay |
| 45 | 5A | Rain sensor |
| 46 | - | Not used |
| 47 | - | Not used |
| 48 | - | Not used |
| 49 | - | Not used |
| 50 | 15A | Heated mirrors |
| 51 | - | Not used |
| 52 | - | Not used |
| 53 | - | TT left stop/turn lamps relay |
| 54 | - | Not used |
| 55 | - | Wiper relay |
| 56 | - | Not used |
| 57 | 20A | Left high-intensity discharge (HID) headlamps |
| 58 | 10A | Alternator sensor |
| 59 | 10A | Brake on/off (BOO) switch |
| 60 | 10A | TT back-up lamps |
| 61 | 20A | 2nd row seat release |
| 62 | 10A | A/C clutch |
| 63 | 15A | TT stop/turn lamps |
| 64 | 15A | Rear wipers |
| 65 | 30A | Fuel pump |
| 66 | - | Powertrain control module (PCM) relay |
| 67 | 20A | Vehicle power (VPWR) #2 (emission related powertrain components) |
| 68 | 15A | VPWR #4 (ignition coils) |
| 69 | 15A | VPWR #1 (PCM) |
| 70 | 10A | VPWR #3 (coil), All-wheel drive module, A/C clutch |
| 71 | - | Not used |
| 72 | - | Not used |
| 73 | - | Not used |
| 74 | - | Not used |
| 75 | - | Not used |
| 76 | - | Not used |
| 77 | - | TT park lamps relay |
| 78 | 20A | Right HID headlamps |
| 79 | 5A | Adaptive cruise control (ACC) |
| 80 | - | Not used |
| 81 | - | Not used |
| 82 | 15A | Rear washer |
| 83 | - | Not used |
| 84 | 20A | TT park lamps |
| 85 | - | Not used |
| 86 | 7.5A | PCM keep-alive power, PCM relay, Canister vent solenoid |
| 87 | 5A | Run/start |
| 88 | - | Run/start relay |
| 89 | 5A | Front blower relay coil, Electrical Power Assist Steering (EPAS) module |
| 90 | 10A | PCM |
| 91 | 10A | ACC |
| 92 | 10A | ABS module, Plant EVAC and fill |
| 93 | 5A | Rear blower motor, Rear defroster, TT battery charge relays |
| 94 | 30A | Passenger compartment fuse panel run/start |
| 95 | - | Not used |
| 96 | - | Not used |
| 97 | - | Not used |
| 98 | - | A/C clutch relay |
