Ford Explorer 2016 Fuse Box Info

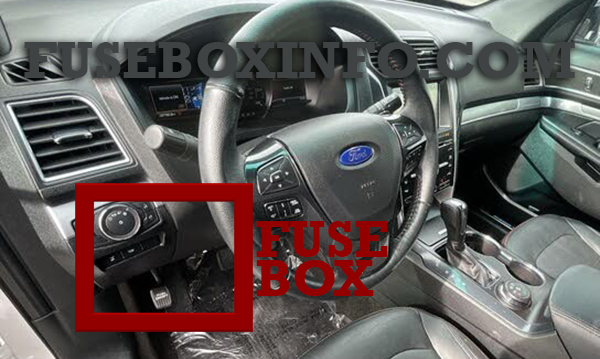

Passenger compartment fuse box location:
The fuse box is located under the instrument panel to the left of the steering column.

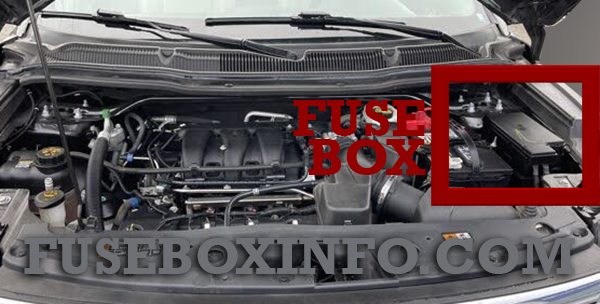

Engine compartment fuse box location:
The power distribution box is located in the engine compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Demand lamps, Battery saver |
| 2 | 7.5A | Memory seat switch (lumbar power) |
| 3 | 20A | Driver unlock relay |
| 4 | 5A | Aftermarket electronic brake controller |
| 5 | 20A | Rear heated seat module |
| 6 | - | Not used |
| 7 | - | Not used |
| 8 | - | Not used |
| 9 | - | Not used |
| 10 | 5A | Securicode™ keyless entry keypad, Hands free liftgate |
| 11 | 5A | Rear climate control module |
| 12 | 7.5A | Front climate control module |
| 13 | 7.5A | Instrument cluster, Smart data link, Steering column control module |
| 14 | - | Not used |
| 15 | 10A | Smart datalink connector power, Heads up display |
| 16 | - | Not used |
| 17 | 5A | Electronic finish panel |
| 18 | 5A | Push button start switch, Ignition switch, Key inhibit |
| 19 | 7.5A | Transmission control switch (tow haul) |
| 20 | - | Not used |
| 21 | 5A | Terrain management switch, Heads up display, Humidity sensor |
| 22 | 5A | Occupant classification sensor |
| 23 | 10A | Delayed accessory power, Power windows, Moonroof, Folding mirror relay, DC inverter, Window/moonroof switch illumination |
| 24 | 20A | Central lock relay |
| 25 | 30A | Left-hand front smart window motor, Door zone module |
| 26 | 30A | Right-hand front smart window motor, Door zone module |
| 27 | 30A | Moonroof |
| 28 | 20A | Sony amplifier - 10 channel |
| 29 | 30A | Sony amplifier - 14 channel |
| 30 | - | Not used |
| 31 | - | Not used |
| 32 | 10A | SYNC, GPS module, Display, Radio frequency reciever |
| 33 | 20A | Radio |
| 34 | 30A | Run/start relay |
| 35 | 5A | Restrain control module |
| 36 | 15A | Lane departure warning module, Auto high beam, EC mirrors, Rear heated seats |
| 37 | 20A | Heated steering wheel |
| 38 | 30A | Left-hand front window motor, Rear power window motors |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Powertrain control module power |
| 2 | 20A | Engine emissions (MIL) |
| 3 | 20A | A/C clutch control relay coil, VACC, Active grill shutters |
| 4 | 20A | Ignition coils |
| 5 | - | Not used |
| 6 | - | Not used |
| 7 | - | Not used |
| 8 | - | Not used |
| 9 | - | Not used |
| 10 | 15A | Heated mirrors |
| 11 | - | Right hand side electronic cooling fan 3 relay |
| 12 | 40A | Heated rear window |
| 13 | - | Not used |
| 14 | - | Powertrain control module relay |
| 15 | 20A | Horn relay power |
| 16 | 10A | A/C clutch relay power |
| 17 | - | Rear heated window and heated mirrors relay |
| 18 | - | Rear blower motor relay |
| 19 | - | Not used |
| 20 | - | Left hand side cooling fan relay |
| 21 | - | Cooling fans series/parallel relay |
| 22 | 25A | Electronic fan relay 2 |
| 23 | - | Not used |
| 24 | - | Not used |
| 25 | - | Not used |
| 26 | 30A | Anti-lock brake system valves |
| 27 | 30A | Trailer tow battery charge relay power |
| 28 | - | Not used |
| 29 | - | Run/start relay |
| 30 | - | Not used |
| 31 | 10A | Electric power-assisted steering |
| 32 | 10A | Anti-lock brake system module |
| 33 | 10A | Powertrain control module (ISPR) |
| 34 | 10A | Blind spot information system, Adaptive cruise control, Front view camera, Rear camera |
| 35 | - | Not used |
| 36 | - | Blower motor relay |
| 37 | - | Trailer tow battery charge relay |
| 38 | - | A/C compressor clutch relay |
| 39 | - | Horn relay |
| 40 | - | Not used |
| 41 | 40A | Rear blower motor |
| 42 | - | Not used |
| 43 | 40A | Front blower motor |
| 44 | 50A | Voltage quality module bus |
| 45 | 40A | Electronic fan relay 1 |
| 46 | 30A | Trailer tow brake controller |
| 47 | - | Not used |
| 48 | 50A | Body control module RP1 bus |
| 49 | - | Not used |
| 50 | 50A | Body control module RP2 bus |
| 51 | 50A | Electronic fan relay 3 |
| 52 | 60A | Anti-lock brake system pump |
| 53 | - | Not used |
| 54 | - | Not used |
| 55 | - | Not used |
| 56 | 40A | Power inverter |
| 57 | - | Not used |
| 58 | - | Not used |
| 59 | - | Not used |
| 60 | 20A | Power point (front console bin) |
| 61 | - | Not used |
| 62 | 20A | Power point (instrument panel) |
| 63 | 30A | Fuel pump |
| 64 | - | Not used |
| 65 | 20A | Power point (2nd row) (without USB charger) |
| 66 | - | Not used |
| 67 | 20A | Power point (cargo area) |
| 68 | - | Not used |
| 69 | 30A | Power liftgate |
| 70 | 20A | Trailer tow left-hand and right-hand stop and direction indicator lamps |
| 71 | - | Not used |
| 72 | 30A | Heated/cooled seats |
| 73 | 30A | Driver seat module, Driver seat power |
| 74 | 30A | Passenger seat power |
| 75 | 30A | Front wiper motor |
| 76 | - | Not used |
| 77 | - | Not used |
| 78 | 30A | 3rd row power folding seat module relay |
| 79 | 30A | Starter relay |
| 80 | - | Not used |
| 81 | 10A | Trailer tow back-up lamp relay |
| 82 | - | Not used |
| 83 | 10A | Brake on/off switch |
| 84 | - | Not used |
| 85 | 5A | 2nd row USB charger (if equipped) |
| 86 | - | Not used |
| 87 | - | Not used |
| 88 | - | Not used |
| 89 | - | Not used |
| 90 | - | Not used |
| 91 | - | Not used |
| 92 | 15A | Multi-contour seat module relay |
| 93 | 10A | Alternator sense |
| 94 | 15A | Rear washer relay |
| 95 | 15A | Rear wiper relay |
| 96 | 10A | Powertrain control module relay coil power |
| 97 | 5A | Rain sensor |
| 98 | 20A | 2nd row seat motors |
| 99 | 20A | Trailer tow parking lamp relay |
