Ford Ka 2016 Fuse Box Info
Passenger compartment fuse box location:

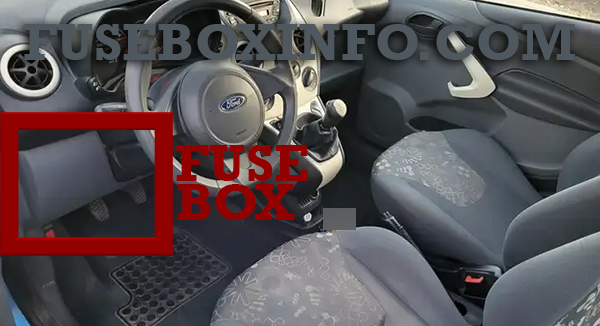

The interior fuse box is under the dashboard on the driver’s side (LHT).

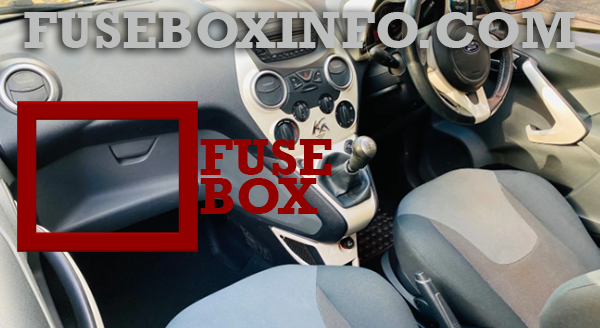

The interior fuse box is behind the glove box on the passinger’s side (RHT).

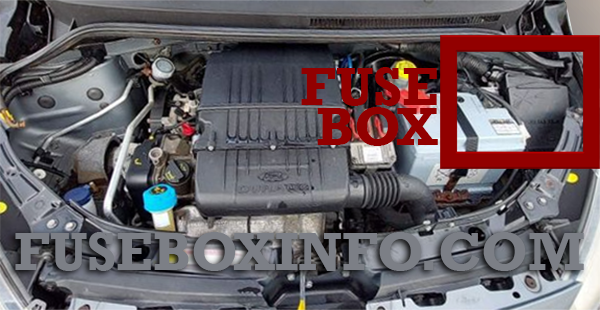

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 12 | 7.5A | Right dipped beam power supply |
| 13 | 7.5A | Left dipped headlight and headlight alignment control unit power supply |
| 31 | 5A | Remote switch coils on fuse box in engine compartment (INT/A) |
| 32 | 7.5A | Front and rear roof lights, boot and puddle lights |
| 36 | 10A | Diagnostic socket, radio, climate control, EOBD |
| 37 | 5A | Brake light switch, instrument panel node |
| 38 | 20A | Door central locking |
| 43 | 15A | Windscreen/ rear window washer pump |
| 47 | 20A | Driver’s side electric windows |
| 48 | 20A | Passenger side electric window |
| 49 | 5A | Parking sensor, backlighting switches, electric mirrors |
| 50 | 7.5A | Airbag Control Unit |
| 51 | 7.5A | Radio switch, convergence, climate control, brake lights, clutch |
| 53 | 5A | Instrument panel node |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 08 | 30A | Climate control electric fan |
| 09 | 05A | Trailer |
| 10 | 15A | Horns |
| 14 | 15A | Main beam headlamps |
| 15 | 20A | Sun roof motor |
| 20 | 30A | Heated rear window, mirror defrosters |
| 30 | 15A | Fog lights |
| 85 | 15A | Front socket (with or without cigar lighter plug) |
