Fiat 500L 2014 Fuse Box

Fiat 500L 2014 Fuse Box Info



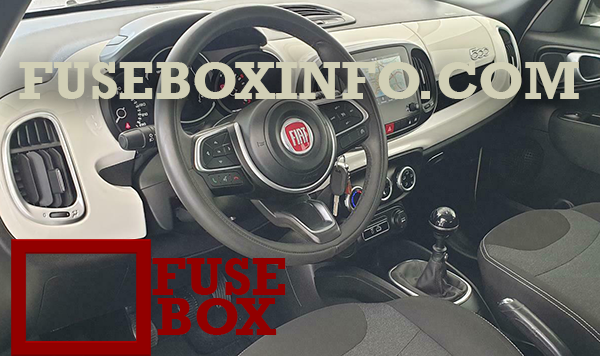

Fuse box location:

The fuse box is located on the driver’s side under the instrument panel.



Engine compartment fuse box:



Luggage compartment fuse box:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
12 7.5A Right Low Beam
32 7.5A Front and Rear Ceiling Lights Trunk and Door Courtesy Lights
53 7.5A Instrument Panel Node
38 20A Central Door Locking
36 15A Diagnostic Socket, Car Radio, Climate Control System, TPMS, Sunroof
43 20A Bi-Directional Washer
48 20A Passenger Power Window
13 7.5A Left Low Beam, Headlamp Leveling
50 7.5A Airbag
51 5A Car Radio Switch, Climate Control System, Stop Light, Clutch, Reverse Gear, Sunroof, Parking Sensor, Rear Camera
37 7.5A Stop Light Switch, Instrument Panel Node
49 5A Exterior Mirror, GPS, Electric Mirror, Parking Sensor
31 5A Climate Control, Seat Regulation
47 20A Driver Power Window






Engine compartment fuse box:

Fuse/Relay N° Rating Functions
01 60A Body Controller
02 60A Body Controller Rear Distribution Unit
03 20A Ignition Switch
04 40A Anti-Lock Brake Pump
05 70A Electric Power Steering
06 30A Radiator Fan - Low Speed
07 50A Radiator Fan - High Speed
08 40A Blower Motor
09 7.5A Transmission
10 15A Horn
11 10A Powertrain
14 20A Power Outlet 115V
15 15A Transmission
16 7.5A Transmission Powertrain
17 10A Powertrain
18 5A Powertrain (Multiair – If Equipped)
19 7.5A Air Conditioning
20 30A Rear Defroster
21 15A Fuel Pump
23 20A Anti-Lock Brake Valves
24 7.5A Stability Control System
30 5A After Run Pump
81 70A PTC (Secondary)
82 40A Transmission
83 40A PTC (Primary)
84 7.5A Transmission
85 15A Front Power Outlet 12V
86 15A Rear Power Outlet 12V
88 7.5A Heated Mirrors



Luggage compartment fuse box:

Fuse/Relay N° Rating Functions
61 15A Lumbar Regulation Seats
62 15A Heated Seats
64 20A Hi Fi System
65 20A Sun Blind
66 20A Sunroof
90 7.5A Left High Beam
91 7.5A Right High Beam
92 7.5A Left Fog Light
93 7.5A Right Fog Light
33 5A BSM, ESP
