Fiat 500L 2022 Fuse Box

Fiat 500L 2022 Fuse Box Info



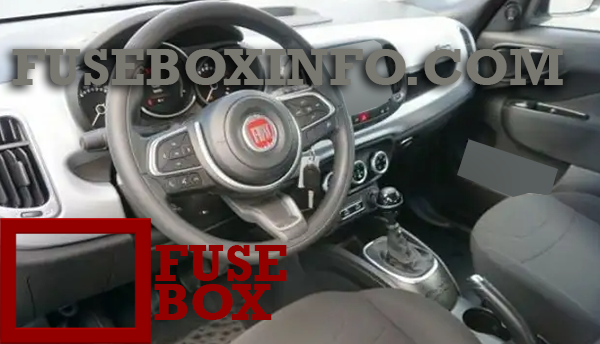

Passenger compartment fuse box location:

The fuse box is located on the driver’s side under the instrument panel.



Engine compartment fuse box location:



Luggage compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
33 20A Rear electric window (left side)
34 20A Rear electric window (right side)
36 15A Uconnect™, rear courtesy lights (right and left)
38 20A Central locking
43 20A Two-way windscreen washer pump
47 20A Front electric window (driver side)
48 20A Front electric window (passenger side)
90 7.5A Main beam headlight (left side)
91 7.5A Main beam headlight (right side)
92 7.5A Fog light (left side)
93 7.5A Fog light (right side)




Engine compartment fuse box:

Fuse/Relay N° Rating Functions
10 10A Horn
20 30A Heated rear window
85 15A Cigar lighter/Front power socket
86 7.5A USB charging port (for versions/markets, where provided)
88 7.5A Door mirror defrosters



Luggage compartment fuse box:

Fuse/Relay N° Rating Functions
1 15A Front seat electric lumbar regulator
2 15A Front seat electric heating
3 20A Hi-Fi system
5 20A Electric sun roof blind
6 20A Electric sunroof
