Fiat 500X 2020 Fuse Box Info

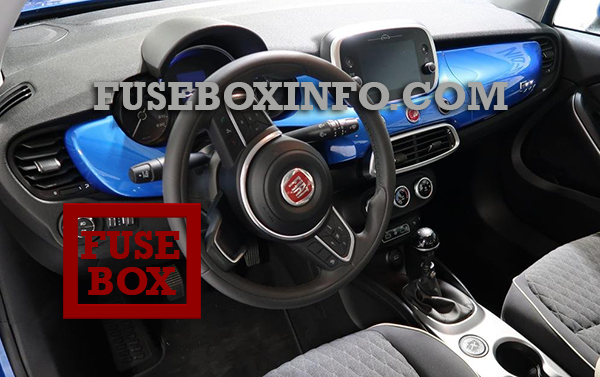

Fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

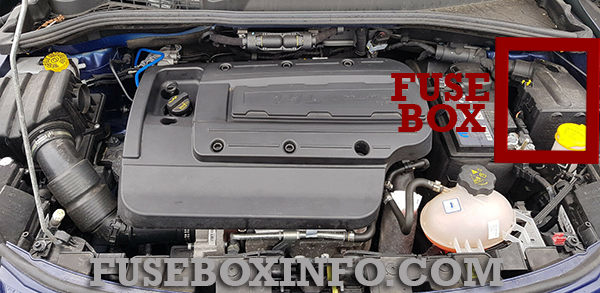

Engine compartment fuse box:

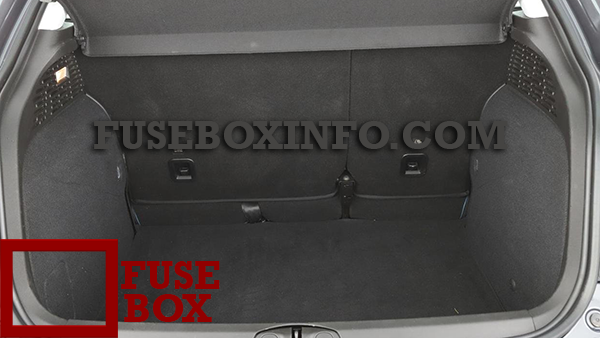

Luggage compartment fuse box:
Fuse Box Diagram | Layout

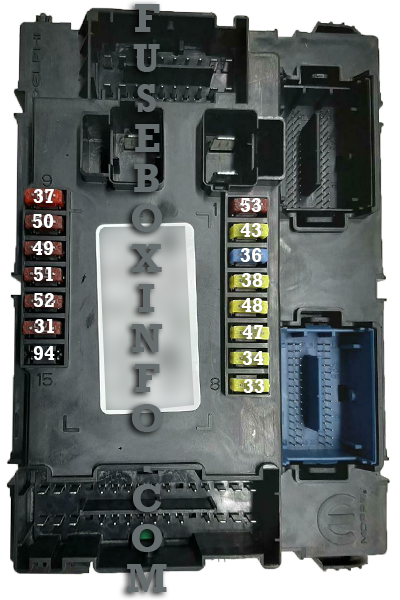

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 31 | 7.5A | Fan Air Conditioning, Power Socket |
| 33 | 20A | Power Window Front (Passenger Side) |
| 34 | 20A | Power Window Front (Drivers Side) |
| 36 | 15A | Supply Uconnect System, Air Conditioning, USB Port, Rear lateral ceiling light in case of open roof, EOBD port |
| 37 | 10A | System Power Forward Collision Warning Plus, All Wheel Drive (AWD), IPC, Central stack switches, Brake Pedal Switch (NC) |
| 38 | 20A | Central Locking |
| 42 | 7.5A | BSM - Brake Control Module, EPS - Electric Power-Assisted Steering |
| 43 | 20A | Bi-directional Pump Washer |
| 47 | 20A | Power Rear Window (Driver Side) |
| 48 | 20A | Power Rear Window (Passenger Side) |
| 49 | 7.5A | Supply ParkSense, Spot Lights Front Dome, Internal Electocromic Mirror, Heated Front Seats, SGW, Sunroof Motor |
| 50 | 7.5A | Supply Air Bag |
| 51 | 7.5A | Air Conditioning Compressor, Plaque Automatic Transmission, Rear Camera, Air Conditioning, LDW - Lane Departure Warning, ASS - Auxiliary Stack Switch, DSU - Drive Syle Selector Unit, Reverse gear switch, side mirrors and rear window defrost |
| 53 | 7.5A | Supply IPC/Starter Device/System Keyless Enter-N-Go, Brake Pedal Switch (NA), EPB - Electric Parking Brake |

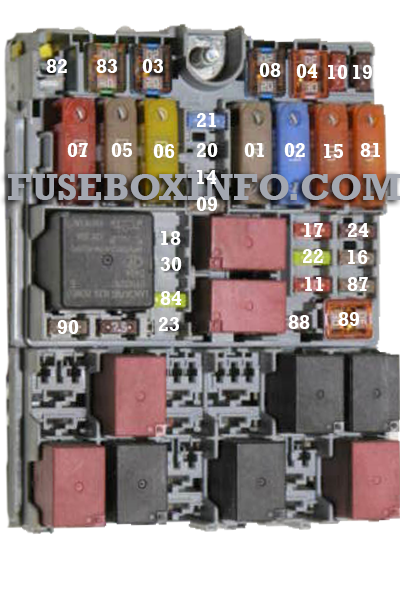

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | 70A | Module Body Computer |
| 02 | 60A | Module Body Computer, Rear Distribution Units |
| 03 | 20A | Controller Power Supply Body Computer |
| 04 | 30A | Brake Control Electronics Module |
| 05 | 70A | Electric Power-Assisted Steering |
| 06 | 70A | Engine Cooling fan |
| 07 | 50A | Engine Cooling fan |
| 08 | 30A | Automatic Transmission, GSM |
| 09 | 5A | Control Module Engine |
| 10 | 10A | Horn |
| 11 | 5A | Supply Secondary Loads |
| 14 | 15A | Pump Power "After run" AGS Supply |
| 15 | 40A | Brake Control Module Pump |
| 16 | 5A | Engine Control Module Power, Automatic Transmission |
| 17 | 30A | Power Control Module Engine |
| 18 | 30A | Power All-Wheel Drive |
| 19 | 7.5A | Air Conditioner Compressor |
| 20 | 5A | Electronic Power Four-Wheel Drive |
| 21 | 15A | Fuel Pump |
| 22 | 10A | Supply Primary Loads |
| 23 | 20A | Power Outlet (Battery Powered) |
| 24 | 15A | Electronic Unit Supply Automatic Transmission |
| 30 | 30A | Heated Windshield – If Equipped |
| 83 | 40A | Air Conditioning Fan |
| 84 | 20A | Power Outlet (Ignition Powered) |
| 87 | 5A | Gear Selector Automatic Transmission |
| 88 | 7.5A | Heated Outside Mirrors |
| 89 | 30A | Heated Rear Window |
| 90 | 5A | IBS Sensor (Battery State of Charge) |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 02 | 20A | Audio System |
| 03 | 20A | Electric Sunroof |
| 05 | 30A | Power Seat (driver side) |
| 06 | 7.5A | Power Seat (driver side) Lumbar Adjustment |
| 08 | 20A | Heating Front Seats |
