Fiat Bravo 2013 Fuse Box Info

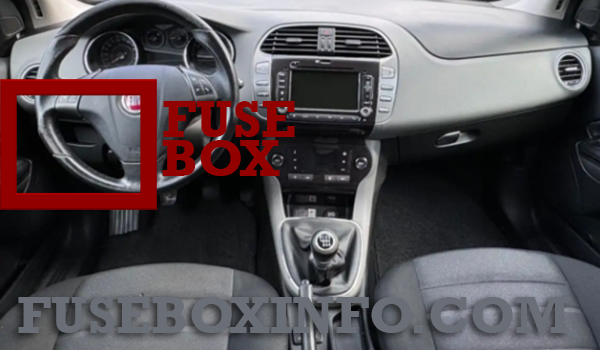

Passenger compartment fuse box location:
The fuse box is located on the left side of the dashboard.

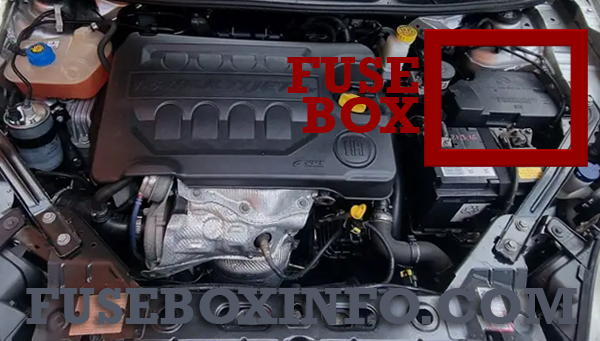

Engine compartment fuse box location:
The fuse box is located next to the battery.

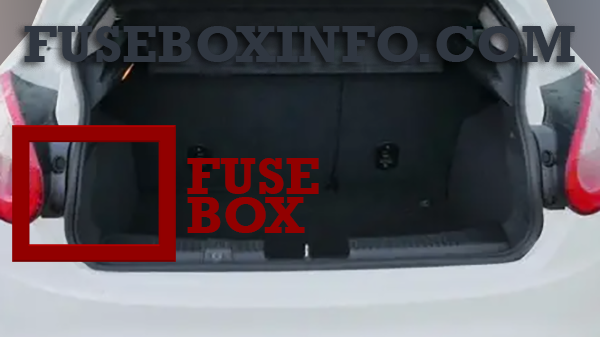

Luggage compartment fuse box location:
The fuse box is located on the left side of the boot.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F12 | 7.5A | Right dipped headlight (halogen headlights) |
| F12 | 15A | Right dipped headlight (Bi-Xenon headlights) |
| F13 | 7.5A | Left dipped headlight (halogen headlights) |
| F13 | 15A | Left dipped headlight (Bi-Xenon headlights) |
| F35 | 5A | Reverse |
| F37 | 7.5A | 3rd brake light |
| F53 | 7.5A | Rear fog light (driver's side) |
| F13 | 7.5A | Headlight alignment corrector system (halogen headlights) |
| F31 | 5A | Relay switch coils on engine compartment fuse box (CVM)/Body Computer control unit (NBC) |
| F32 | 15A | Subwoofer amplifier for Hi-Fi/Radio and radio navigator sound system (1.4 Turbo MultiAir versions with optional Hi-Fi ) |
| F33 | 20A | Left rear electric window |
| F34 | 20A | Right rear electric window |
| F35 | 5A | Control on stop pedal (normally closed contact NC) /Water in diesel sensor / Flow meter / Control on clutch pedal and servo brake pressure sensor (1.4 Turbo MultiAir versions) |
| F36 | 20A | Central locking system control unit (CGP) (door opening/closing, safe lock, tailgate release) |
| F37 | 7.5A | Control on brake pedal (normally open contact NO)/Instrument panel (NQS)/Gas discharge bulbs control units on front headlights |
| F39 | 10A | Radio and radio navigator (excluding 1.4 Turbo MultiAir versions with optional Hi-Fi)/Radio setup/Blue&Me™ system/Alarm siren (CSA)/Alarm system on roof light/ Internal cooling unit/Tyre pressure monitoring system control unit (CPP)/Diagnosis socket connector/Rear roof lights |
| F40 | 30A | Heated rear window |
| F41 | 7.5A | Electric door mirror demisters/Demisters on windscreen jets |
| F43 | 30A | Windscreen wiper/Bi-directional windscreen/rear window washer electric pump system on steering column stalk |
| F44 | 15A | Current sockets/Cigar lighter |
| F46 | 20A | Electric sun roof motor |
| F47 | 20A | Front electric window (driver side) |
| F48 | 20A | Front electric window (passenger side) |
| F49 | 5A | Emergency control panel (lighting)/Right branch central control panel (lighting, ASR switch) and left branch/Steering wheel controls (lighting)/Control panel on front roof light (lighting)/Volume sensing alarm system control unit (deactivation)/Electric sun roof system (control unit, control lighting)/Rain sensor/Dusk sensor on rear view mirror/Heating pad activation controls on front seat |
| F51 | 5A | Internal cooling unit/Radio setup/Cruise Control lever/Blue&Me™ system control unit/Parking sensor control unit (NSP)/Air pollution sensor (AQS)/Automatic climate control system/Electric door mirrors (adjustment, folding)/Tyre pressure monitoring system control unit (CPP)/Voltage stabiliser (1.4 Turbo MultiAir versions) |
| F52 | 15A | Rear window wiper |
| F53 | 7.5A | Instrument Panel (NQS) |
Engine compartment fuse box:
Version1
Version 2
| Fuse/Relay N° | Rating | Functions |
| F14 | 15A | Main beam headlights |
| F30 | 15A | Left/right fog light/cornering light |
| F09 | 7.5A | Right fog light/cornering light (for versions/markets, where provided) |
| F14 | 7.5A | Right main beam headlight (for versions/markets, where provided) |
| F15 | 7.5A | Left main beam headlight (for versions/markets, where provided) |
| F30 | 7.5A | Right fog light/Cornering light (for versions/markets, where provided) |
| F08 | 40A | Climate control fan |
| F09 | 30A | Headlight washer pump |
| F10 | 10A | Acoustic warning |
| F15 | 30A | Additional heater (PTC1) |
| F19 | 7.5A | Air conditioning compressor |
| F20 | 20A | Headlight washer electric pump (for versions/markets, where provided) |
| F21 | 15A | Electric fuel pump in tank (for versions/markets, where provided) |
| F85 | 15A | Fuel pump |
| F87 | 5A | Battery charge status sensor (1.4 Turbo MultiAir version) |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F1 | 30A | Front right seat movement |
| F2 | 30A | Front left seat movement |
| F3 | 10A | Front left seat heating |
| F6 | 10A | Front right seat heating |
