Fiat E-Ducato 2024 Fuse Box Info

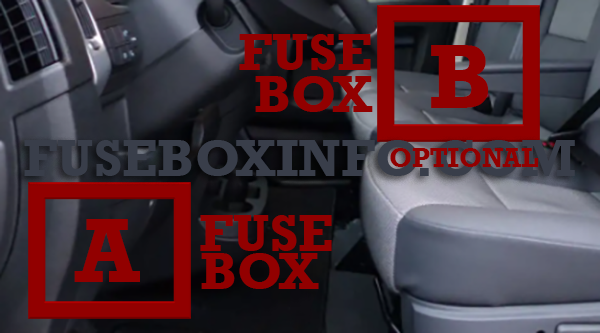

Passenger compartment fuse box location:
The fuse box A is located on the left side of the dashboard. The fuse box B (Optional fuse box) is located on the right central pillar.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| F12 | 7.5A | Right dipped beam headlight |
| F13 | 7.5A | Left dipped headlight |
| F31 | 5A | Instrument panel control unit relay (+key) |
| F32 | 7.5A | Passenger compartment interior ceiling lighting (+battery 12V) |
| F33 | - | Not used |
| F34 | 7.5A | Minibus interior lights (emergency) |
| F36 | 10A | Radio, climate control system, alarm, chronograph, 12V battery disconnect control unit, TPMS |
| F37 | 7.5A | Brake light control (main), instrument panel (+key) |
| F38 | 20A | Door lock (+battery 12V) |
| F43 | 20A | Windscreen wiper (+key) |
| F47 | 20A | Driver's side electric window |
| F48 | 20A | Passenger side electric window |
| F49 | 5A | Parking sensor control unit, radio, steering wheel controls, central control panel, left control panel, auxiliary panel, 12V battery disconnect control unit (+key), rain sensor |
| F51 | 5A | Climate control system, reversing lights, tachograph (+key), TOM TOM setup, Lane Departure Warning, rear camera, headlight alignment corrector |
| F53 | 7.5A | Instrument panel (+12V battery) |
| F89 | - | Not available |
| F90 | 7.5A | Left main beam headlight |
| F91 | 7.5A | Right main beam headlight |
| F92 | 7.5A | Left fog light |
| F93 | 7.5A | Right fog light |
Passenger compartment fuse box B (Optional fuse box):
| Fuse/Relay N° | Rating | Functions |
| F54 | 15A | Engine intake / ventilation fan (MBUS) |
| F55 | 15A | Heated seats |
| F56 | 15A | Rear passenger power socket |
| F57 | 10A | Additional heater under the seat |
| F58 | 15A | Left heated rear window |
| F59 | 15A | Right heated rear window |
| F60 | - | Not available |
| F61 | - | Not available |
| F62 | - | Not available |
| F63 | 10A | Additional passenger heater control |
| F64 | - | Not available |
| F65 | 30A | Additional passenger heater fan |
Engine compartment fuse box:
Optional wired module:
| Fuse/Relay N° | Rating | Functions |
| F05 | 50A | EPB, Electric Parking Brake |
| F06 | 60A | Transmission high-speed cooling fan (+12V battery) |
| F07 | 60A | Transmission low-speed cooling fan (+12V battery) |
| F08 | 40A | Passenger compartment fan (+key) |
| F09 | 15A | Rear power socket (+12V battery) |
| F10 | 15A | Horn |
| F14 | 15A | Power socket (+12V battery) |
| F15 | 15A | Cigar lighter (+12V battery) |
| F19 | 7.5A | Climate control compressor |
| F20 | 30A | Windscreen wiper |
| F24 | 7.5A | Auxiliary control panel for mirror movement and folding (+key) |
| F30 | 15A | Mirror defrosting |
| F62 | 20A | HV passenger compartment heater |
| F64 | 30A | Headlight washers |
| F65 | 30A | EPB, Electric Parking Brake |
| F66 | 30A | EPB, Electric Parking Brake |
